31 Toray Automatic High Speed Filament Winder TW-716/8-RBD, TW-716/8-60-RBD
Ref :
250006-1
Condition :
Used
Manufacturer :
Toray
Short Description :
Automatic High Speed Filament Winder
Model :
TW-716/8-RBD, TW-716/8-60-RBD
Year(s) :
1997, 2000
Quantity :
31
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
29 Jan. 2016

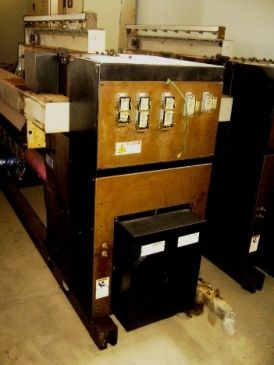

31 TORAY Automatic High Speed Filament winders for POY yarn
(5) Model TW-716/8-60-RBD, 2000 yoc, 710mm
(7) Model TW-716/8-RBD, 1997 yoc, 600mm
(19) Model TW-716/8-RBD, 1997 yoc, 710mm
Autodoffing
Operating speed: 3000-6000 m/min
Max yarn: 300dn
Max package ø:420mm
Tube ø (inside) 110mm
Tube length: 150mm
8 packages/spindle
Traverse: 123mm

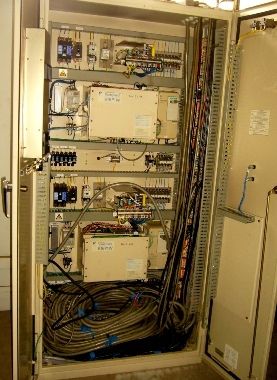

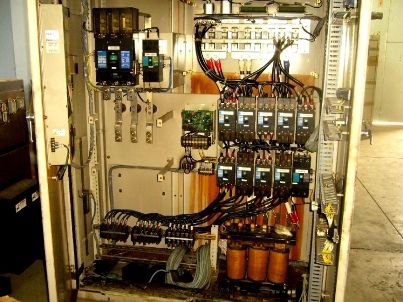

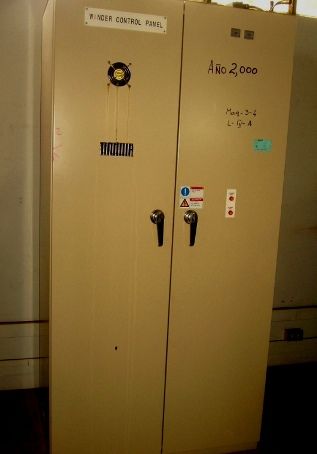

(14) YASKAWA control panels
(1 panel controls 2 winder heads)
w/ (3) spare winder heads
