Feldmeier PRESSURIZED VACUUM JACKETED AGITATED VESSEL REACTOR 316L

BRAND : FELDMEIER
TYPE : 316L
PRESSURIZED VACUUM JACKETED AGITATED VESSEL REACTOR

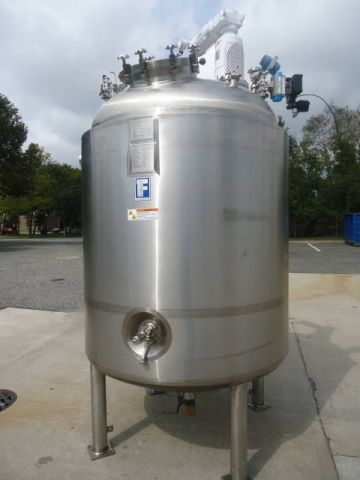

- 1-USED FELDMEIER 1,000 GALLON TYPE 316L STAINLESS STEEL JACKETED VACUUM MIX VESSEL/REACTOR.
- INTERNAL DIMENSIONS APPROX. 60 IN. DIAMETER X 77 IN.
- ON THE STRAIGHT SIDE PLUS DISHED TOP AND BOTTOM HEADS.
- VESSEL RATED 100 PSI AND FULL VACUUM @ 450 DEGREES F INTERNALLY AND JACKETED FOR 150 PSI @ 450 DEGREES F, CODE STAMPED.
- WITH RELIANCE ELECTRIC 1.5 HP EXPLOSION PROOF MOTOR WITH CHEMINEER REDUCER
TO DRIVE THE 16 IN. DIAMETER STAINLESS STEEL PITCHED BLADED AGITATOR.

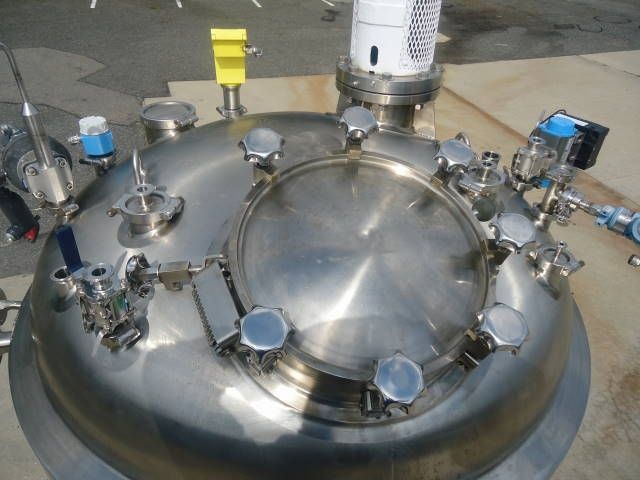

- TOP HEAD HAS APPROX. 18 IN. DIAMETER MANWAY WITH HINGED LID WITH QUICK OPENING BOLTS
AND TWELVE (12) ASSORTED TOP INLETS AND APPROX. 16 IN. DIAMETER X 26 IN.
- HIGH STAINLESS STEEL TUBULAR LEGS.
- VESSEL HAS APPROX. 3 IN. DIAMETER CENTER DISCHARGE OUTLET WITH ELECTRIC AIR VALVE AND ACCESSORY SIDE DISCHARGE.
- INCLUDES TEMPERATURE PROBE, TWO (2) CIP SPRAY BALLS AND NUMEROUS DESIRABLE FEATURES.
