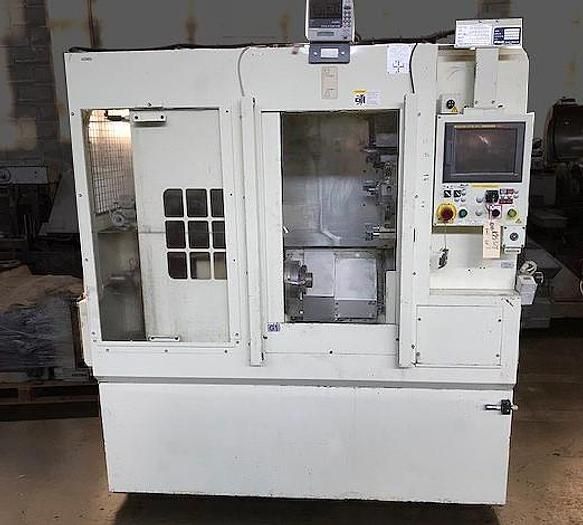

Fuji FANUC 18I-LNB CNC CONTROL W/COLOR CRT 3500 RPM ANS-31P 2 Axis

FUJI CNC TURNING CENTER
ANS-31P
NEW 2008


EQUIPPED WITH:
FANUC 18I-LNB CNC CONTROL W/COLOR CRT, LINEAR AND
CIRCULAR INTERPOLATION, DATA LINE RS232 PORT
HYDRAULIC CHUCK ACTUATOR W/EXPANDING MANDREL FIXTURE
8-POSITION TOOL TURRET - PROBE - AUTO LUBE
AUTO DOOR - LIGHT CURTAINS
CHIP CONVEYOR AND COOLANT SYSTEM

Spindle bore diameter 2.2"
Swing over bed, maximum 16.5"
Work diameter maximum, (recommended) 7.9"
Swing over carriage, maximum 8"
Standard chuck size, (not equipped with) 8"
Cross travel, (x-axis) 8.86"
Longitudinal travel, (z-axis) 18.31"
Spindle speeds, range 35 TO 3500 RPM
Motor horsepower 10 HP
Electrical system 220/3/60
Overall dimensions 75" X 69"
Overall height 86"
Weight approximately 7000 LBS
