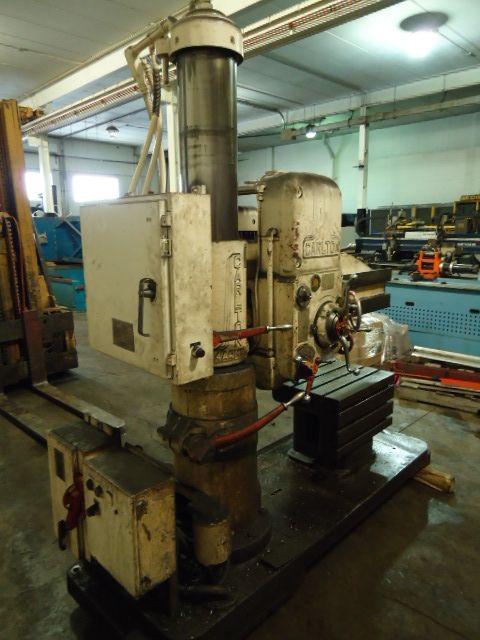

Carlton Radial Arm Drill Variable

Arm Length: 4 ft
Column Diameter: 9"

Maximum Spindle Radius: 55"
Minimum Spindle Radius: 16"
Maximum Spindle Base: 53"
Minimum Spindle Base: 14"

Working Surface of Base: 30" × 53"
Base Height: 6"

Vertical Spindle Travel: 12"
Head Bearing on Arm: 15"
Arm Bearing on Column: 19"

Maximum Height Over Head: 98"
Height Over Column Capacity: 91"

Spindle Diameter: 2 1/2"
Spindle Taper: No. 4 MT

Traverse of Arm on Column: 27"
Traverse of Head on Arm: 39"

Drilling Radius Capacity: 96"
Arm Swing: 67"

Spindle Speed: 12 speeds
Feed / Tap Lead Range: 0.004"–0.025"

Approximate Weight: 6,195 lbs
Electrical: 460V / 3PH / 60Hz
