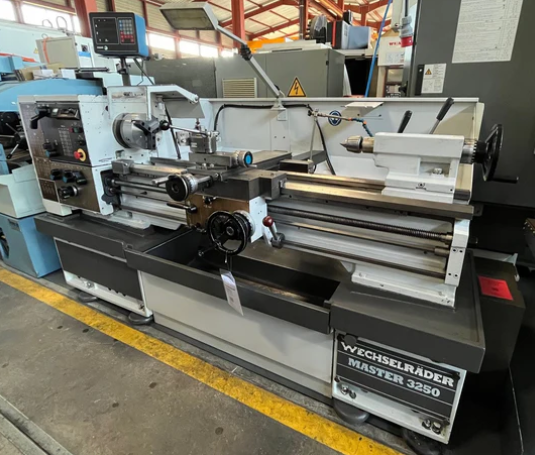

Colchester Engine Lathe 3250 rpm MASTER 3250

Centre Height: 170 mm
Distance Between Centres: 1250 mm
Swing Over Cross-Slide: 196 mm
Swing Over Bed: 350 mm
Swing in Gap: 535 mm
Spindle Bore: 42 mm
Spindle Taper: MT3
Camlock: D1-4"
Max Spindle Speed: 3250 rpm
Leadscrew Pitch: 6 mm
Leadscrew Diameter: 32 mm
Tailstock Taper: CM4
Tailstock Quill Diameter: 63 mm
Tailstock Quill Stroke: 140 mm
Feed Rate 1: 0.036–1.2 mm/rev
Feed Rate 2: 0.018–0.6 mm/rev
Voltage: 50 Hz 3x 400 V
Spindle Motor: 7.5 kW
Machine Weight: 1450 kg
Overall Length: 2500 mm
Overall Width: 1230 mm
Overall Height: 1600 mm

Features/Equipment
Digital Readout 2 Axes (FAGOR)
3-Jaw Chuck Ø200 mm
Set of Hard Jaws
Coolant System
Quick-Change Toolholder MULTIFIX "B"
Toolholders
Set of Centres
Lamp
Drilling Tailstock
Lathe Chuck Protection
