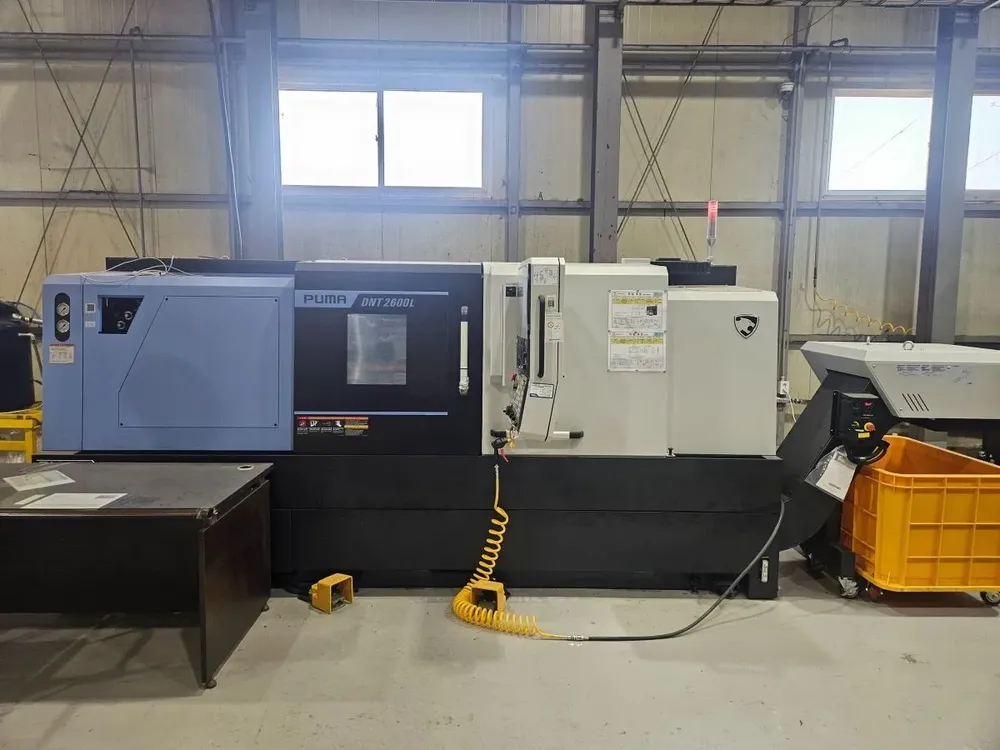

Doosan FANUC SERIES I CNC Control 3,500 RPM DN SOLUTIONS PUMA DNT 2600L 3 Axis

X1-Axis Travel: 10.2"
Z1-Axis Travel: 43.3"
C1-Axis Travel: .001
Rapid Traverse Rate X1: 945 in/min.
Rapid Traverse Rate Z1: 1,181 in/min.
FANUC SERIES I CNC Control
Tool Presetter
Hydraulic Chuck Clamp Confirmation
Signal Tower
Programmable Body and Quill Tailstock
USB Port
Ethernet Port for DNC Operation
Bar Capacity: 3.2"
Swing Over Bed: 25.6"
Turning Diameter: 18.1"
Machining Length: 42.4"
Distance Between Centers: 45"
Spindle Speed: 3,500 RPM
Spindle Horsepower: 34.9 HP
Spindle Nose: A2-8
Spindle Bore Diameter: 3.6"
Spindle Torque: 542
12" 3-Jaw Hydraulic Chuck
Chuck Size: 12"
Turret Configuration: 12
Tailstock Quill Diameter: 3.9"
Tailstock Taper: MT5
Tailstock Quill Travel: 3.9"
Tailstock Travel: 43.3"
2 Gear Ranges
Chip Conveyor
