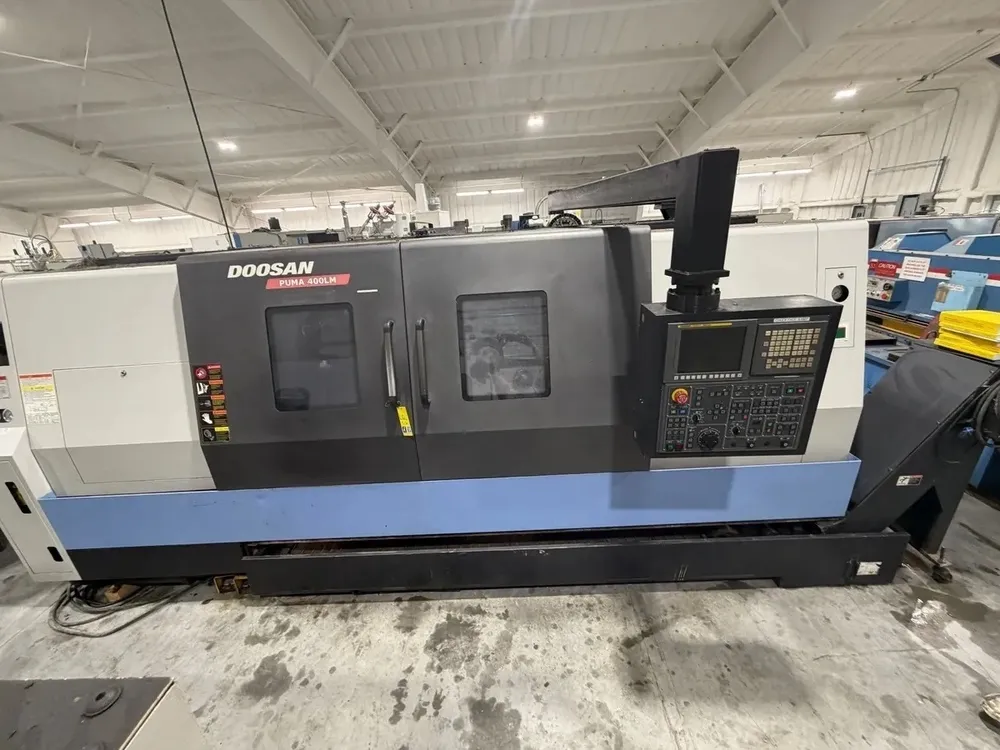

Doosan FANUC SERIES I CNC Control 4,000 RPM PUMA 4100LMB 3 Axis

X1-Axis Travel: 13.8"
Z1-Axis Travel: 84.4"
C1-Axis Travel: .001 Degrees
Rapid Traverse Rate X1: 630 in/min.
Rapid Traverse Rate Z1: 709 in/min.
FANUC SERIES I CNC Control
Tool Presetter
Chip Conveyor
Bar Capacity: 4.5"
Swing Over Bed: 31.1"
Turning Diameter: 22"
Machining Length: 81"
Distance Between Centers: 86"
Spindle Speed: 2,000 RPM
Spindle Horsepower: 40 HP
Spindle Nose: A2-11
Spindle Bore Diameter: 5.2"
Turret Rotary Tool Spindle Speed: 4,000 RPM
Turret Rotary Tool Horsepower: 15 HP
18" Hydraulic Chuck
Chuck Size: 18"
Turret Configuration: 10
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT#5
Tailstock Quill Travel: 4.7"
2 Gear Ranges
3 Axis
Programmable Tailstock
Manuals
Dimensions: 17'6" x 100" x 100"
Weight: 24000 LBS
