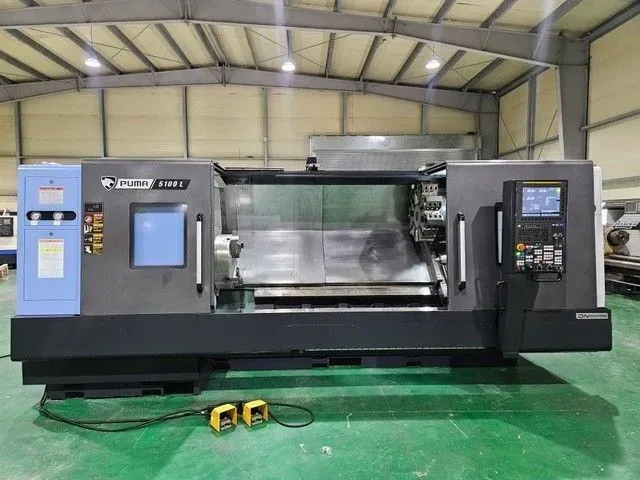

Doosan FANUC SERIES I PLUS CNC Color Control 1,500 RPM DN SOLUTIONS PUMA 5100LB 2 Axis

X1-Axis Travel: 14.3"
Z1-Axis Travel: 84.8"
Rapid Traverse Rate X1: 630 in/min.
Rapid Traverse Rate Z1: 710 in/min.
FANUC SERIES I PLUS CNC Color Control
DOOSAN EZ GUIDE I Conversational Programming
Programmable Tailstock
Custom Macro
Embedded Ethernet Function
DOOSAN Tool Load Monitoring
Bar Capacity: 6.5"
Swing Over Bed: 35.4"
Turning Diameter: 25.56"
Machining Length: 80.39"
Distance Between Centers: 84.7"
Spindle Speed: 1,500 RPM
Spindle Horsepower: 60 HP
Spindle Nose: A1-15
Spindle Bore Diameter: 5.2"
21" 4 Jaw Hydraulic Thru Hole Chuck
Chuck Size: 21"
Turret Configuration: 10
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT5
Tailstock Quill Travel: 4.7"
Tailstock Travel: 80.7"
2 Gear Ranges
2 Axis
Chip Conveyor
Spindle Chiller
900 Cutting Hours
