Dusenbery 635 BL 62”

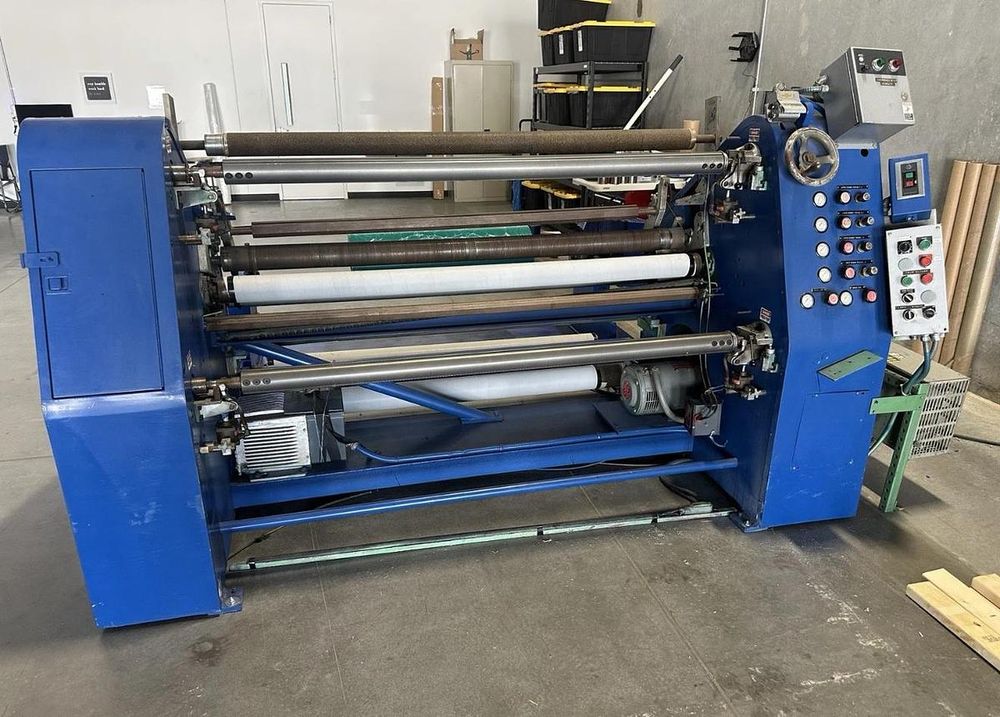

62” wide used Dusenbery Model 635 BL.
Maximum rewind diameter of 24” without top riding rolls,
with top riding rolls is 21”.
Duplex rewind with core spacer differential rewind tension control —
all the slit roll have individual tension control.
Four-zone individual tension control;
you can run four different slit widths at the same time.
Rewind mandrels for use with 3” core.

Slitting is razor in groove. Maximum speed is 500 FPM.
Cork-covered pull rolls. Equipped with a 40” diameter
free-standing unwind with automatic edge guide control for
edge guiding and a standard pneumatic air-cooled brake.
Also a 3” unwind shaft.

The drive system consists of a 7.5 HP DC motor and
a main drive controller. 480V 3-phase.
