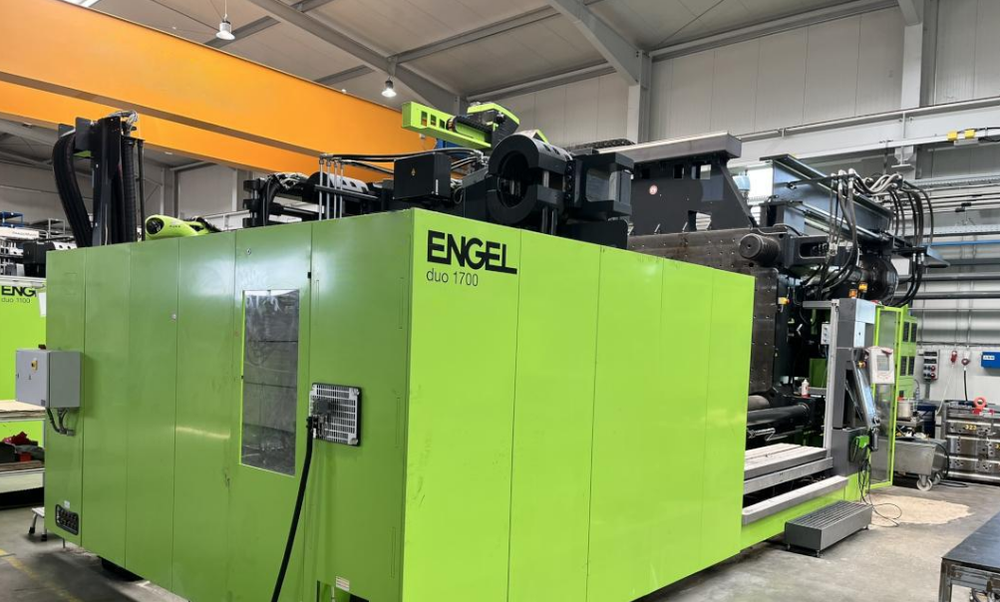

Engel Duo 8160H/860W/1700 combi 1700 T

ENGEL duo 8160H/860W/1700 combi
Machine type: ENGEL duo 8160H/860W/1700 combi
Machine version: 2-component machine
Injection unit arrangement: H/W arrangement,
one above the other, distance 300 mm
Clamping force: 17,000 kN
Min./max. mould height: 800 / 1,600 mm
Max. opening stroke: 2,550 mm
Max. platen distance: 3,350 mm
Rotary table diameter: 2,250 mm

Mould weight:
DS: 30,000 kg
AS with rotary table: 21,590 kg
Total: 36,586 kg
AS without rotary table: 25,790 kg
Rotary table weight: 4,200 kg

Injection unit 1 / 3660H
Nozzle: hydraulic shut-off nozzle
Nozzle radius: R35
Nozzle bore: Ø8 mm
Screw diameter: 105 mm
Max. stroke volume: 4,070 cm3
Max. shot weight PC-ABS: 4,600 g
Max. shot weight PP: 3,700 g
Max. shot weight PA6 GF30: 5,500 g
Max. shot weight TPU: 4,960 g

Injection unit 2 / 500W
Nozzle: open nozzle
Nozzle radius: R35
Nozzle bore: Ø4 mm
Screw diameter: 50 mm
Max. stroke volume: 432 cm3
Max. shot weight TPV 55 Shore: 390 g
Max. shot weight EPDM 65 Shore: 483 g

Tie bars / platens
Tie-bar spacing horizontal: 1,850 mm
Tie-bar spacing vertical: 1,415 mm
Tie-bar diameter: 265 mm

Centring rings
Nozzle side: 1K Ø250 mm / 2K Ø200 mm, pitch 300 mm
Ejector side: Ø250 mm
Centring groove DS: 300 mm below nozzle centre, 100 × 32H8, depth 18 mm

Ejector
Max. ejector stroke: 300 mm
Central ejector: without
Thread: M20
Ejector rod diameter: Ø50 mm
Limit monitoring connector: 4-pin

Core pullers
AS: 4× + 1× proportional valve
DS: 4× + 1× proportional valve
Core in: SKM13IR3 / alternative SKM10IR2
Core out: SKS13IR3 / alternative SKS10IR2
Limit monitoring connector: 16-pin according to Euromap 13

Valve gate control
Hydraulic: 16-fold / SKM10IR2 / SKS10IR2

Pneumatic valves
Ejector side: 1× blow function
Nozzle side: 1× blow function

Mould temperature control
Ejector side: 16 circuits
Nozzle side: 16 circuits
Machine-side water connection: Hasco N9
Tool-side water connection: USA system DME N9 / alternative N6

Mould heating
64 control zones
8 plugs for sensors and heating
16-pin

Robot / handling
Robot: ENGEL viper 60-RC 300
Travel Z: 3,320 mm
Travel X: 1,500 mm
Travel Y: 2,600 mm
C-axis: 210 Nm
B-axis: 210 Nm

Automation
Conveyor belt for parts deposit
Belt width: 1,600 mm
Light barrier

Special features
iQ weight control
Gas-assisted processing / blowing agent processing
Injection compression moulding
Cavity pressure sensors
MuCell prepared, not yet installed

Electrical data
Main connection A: 3×400V + N + PE / 50 Hz
Nominal current A: 0 A
Rating A: 250 kW
Main fuse A: 630 A
Short circuit current rating: 10,000 A
Control voltage: 230V AC / 24V DC

Main connection B:
Nominal current B: 210 A
Rating B: 150 kW
Main fuse B: 250 A
