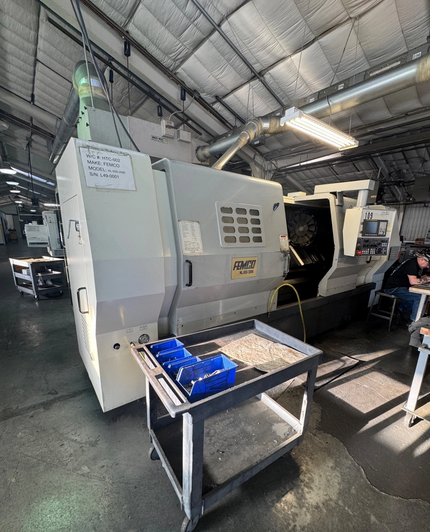

Femco Fanuc 0i-TD CNC 2500 RPM HL-55/2000 2 Axis

Rapid Traverse X-Axis: 472 IPM
Rapid Traverse Z-Axis: 591 IPM
Control: Fanuc 0i-TD CNC
12-Station Turret
Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System
Automatic Lubrication System
Foot Operated Control for Chuck and Tailstock
Box Way Heavy Duty Construction
Bar Capacity: 4.65"
Swing Over Bed: 28.4"
Maximum Turning Diameter: 25.4"
Turning Diameter: 24.4"
Maximum Turning Length: 42.12"
Distance Between Centers: 75.5"
Chuck Size: 15"
Spindle Nose: A2-11
Spindle Bore: 5.2"
Spindle Speed: 25 - 2500 RPM
Spindle Motor: 35 hp
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 14.3"
Tailstock Quill Diameter: 3.54"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-5
Power Source: AC 220 V / 3 Phase / 60 Hz
