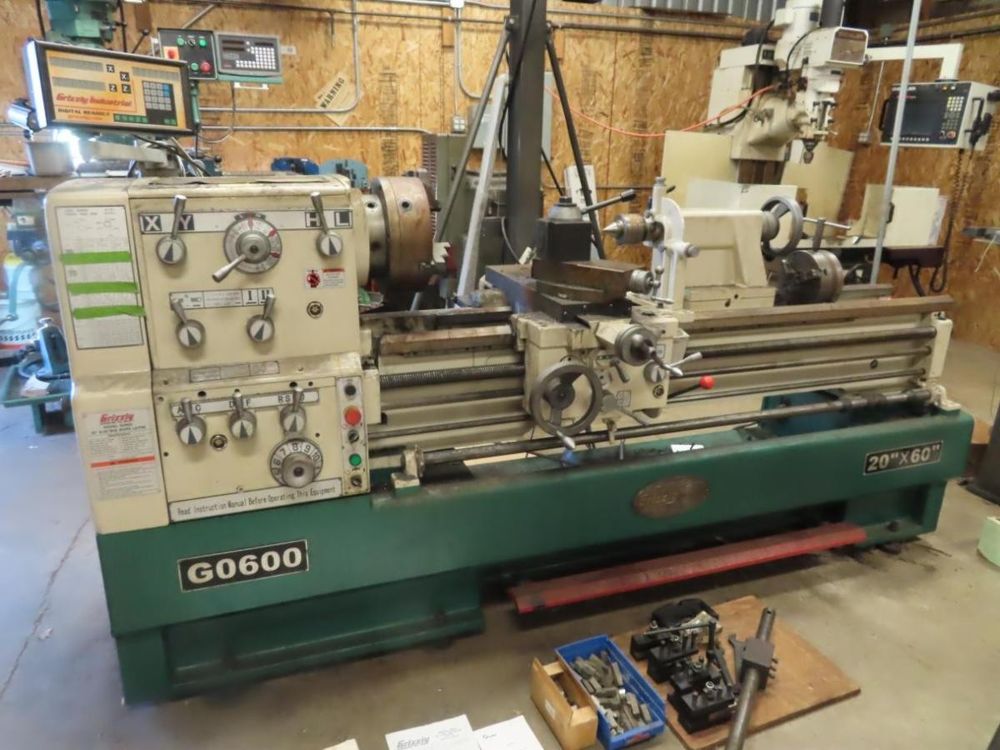

Grizzly Engine Lathe 1600 rpm G0600 BIG BORE 2013

Swing over bed: 20-1/16 in
Swing over gap: 29 in
Swing over cross slide: 12 in
Distance between centers: 60 in
Compound travel: 5-1/8 in
Cross slide travel: 12-3/4 in
Tailstock travel: 7-1/4 in
Spindle speed range (12): 25–1600 rpm
Spindle nose: D1-8 camlock
Spindle bore: 3-1/8 in
Spindle taper: MT7
Threading range standard: 60 @ 2–112 TPI
Threading range metric: 47 @ 0.2–14 mm
Threading range diametrical: 50 @ 4–112 DP
Threading range modular: 39 @ 0.1–7 MP
Electrics: 220 V, 3-phase, 60 Hz, 10 hp
Overall dimensions: 112 x 46 x 65 in
Machine weight: 5100 lbs

Machine Equipped With
Taper attachment
Tooling
Multiple centers
Toolholders
Boring bars
Faceplate 18 in
3-jaw chuck 12 in
4-jaw chuck 14 in
Follow rest
Steady rest
Full set of manuals
