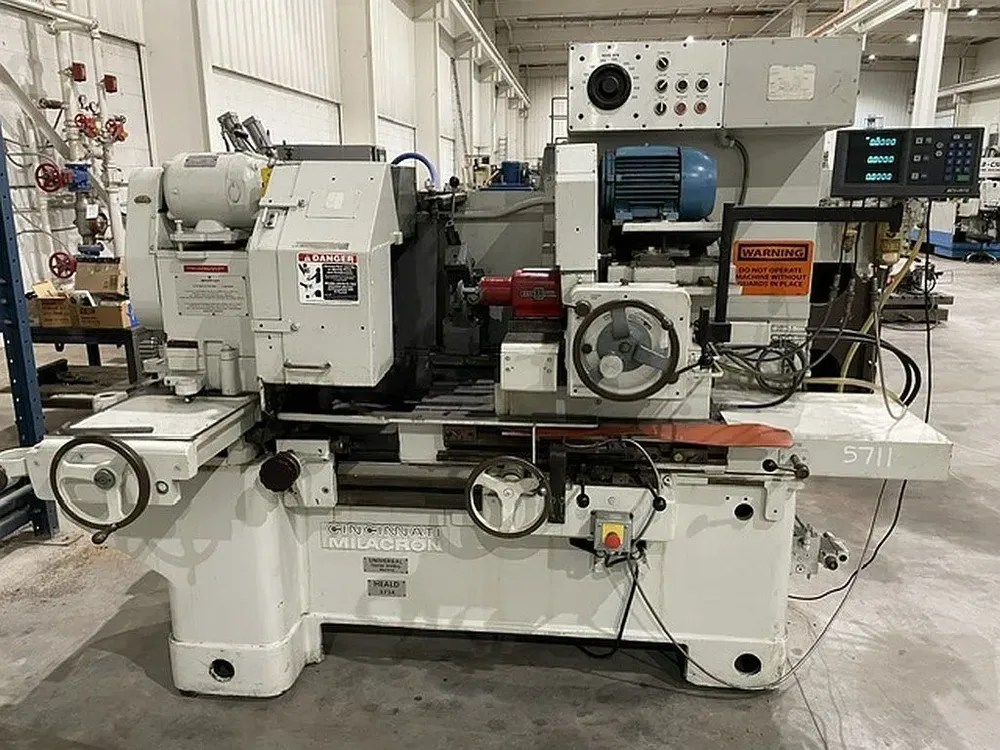

Heald 273A

Swing: 19.8"
Max Grinding Bore: 14"
Stroke: 15.9"
Travel-Long: 20"
Workhead Swivel: 90°
Workhead Power: 1.5 hp
Wheel Power: 5 hp
Dresser: Yes
Extended Bed – Front of Wheelhead Dovetail to Face of Workhead Flange: 42"
4" Riser
Swing over Table: 28"
Swing, Workhead Swiveled 90 Degrees: 24"
Angular Adjustment of Workhead: 90°
Workhead Cross Slide Travel: 11 1/2"
Power or Manual Table Travel: 20"
Wheelhead Cross Slide Travel: 1 1/2"
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds: 0 to 500 RPM Variable
Sine Bar Attachment
Acu-Rite 3 Axis DRO
Coolant System
Extended Bed
4" Riser
(3) Red Head Grinding Spindles
12" Magnetic Chuck
Dressing Attachment
Hydrostatic Ways
Dimensions: 62" x 104"
Height: 77"
Estimated Weight: 7,000 lb
