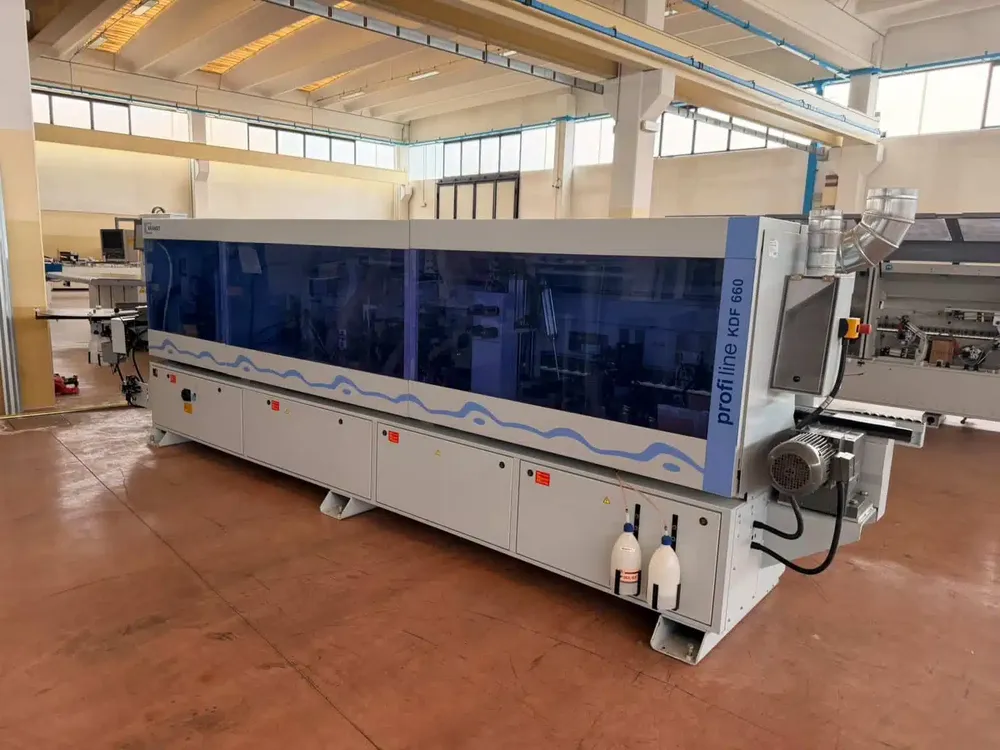

Homag KDF 660

Minimum panel height 8 mm
Maximum panel height 60 mm
Min. edge thickness 0.4 mm
Max. edge thickness 12 mm
Max. feed speed 16 m/min
Upper pressure
Pressure with idle wheels
Panel support guide with NC positioning
Operating units in the squaring section: 1

Grinding unit
Manufacturer model FG3500
Automatic timed intervention
Motor power 2.2 kW
No. of revolutions/min: 9000 RPM
Reel magazine
No. of positions: 1
Gluing system
Hotmelt glue tank
Hotmelt glue pre-melter
Edge pressure roller unit

No. of pressure rollers: 4
Operating units in the edge banding section: 7

1
Edging unit
Manufacturer model HL6110
No. 2 motors
Motor power 0.35 kW
No. of rpm 12,000 RPM
Overlapping trimming unit
Manufacturer model VF6210
No. of motors 2
Motor power 0.55 kW
No. of rpm 12,000 RPM

3
Chamfer trimming unit
Manufacturer model BF 6245
No. of motors 2
Motor power 0.55 kW
No. of rpm 12,000 RPM

4
Rounding unit
Manufacturer model FF 6220
No. 2 motors
Motor power 0.35 kW
No. of revolutions/min 12,000 RPM

Edge scraper unit
Manufacturer model ZK 6510
with CNC positioning 6
Glue scraper unit
Manufacturer model ZF 6607

Brush unit
Manufacturer model FP6810
No. of motors 2
Motor power 0.18 kW
No. of revolutions/min 1,800 RPM
