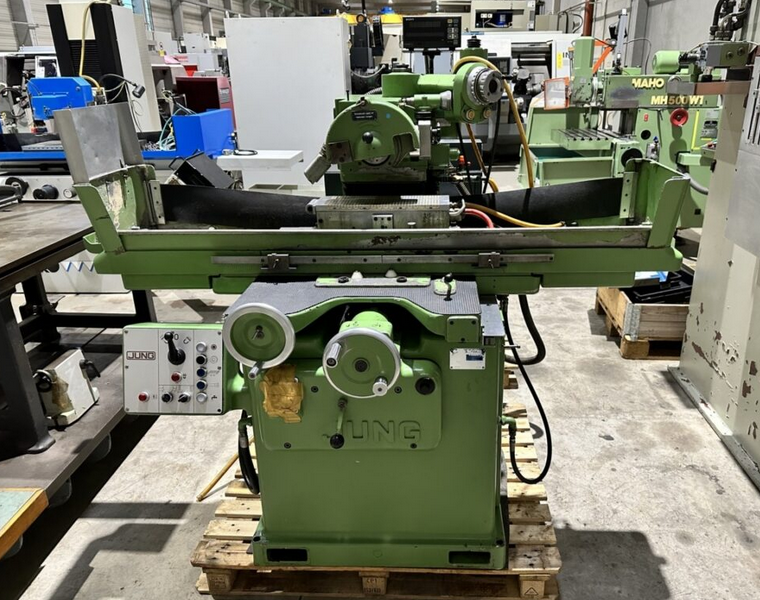

Jung HF50
Ref :
2800589-3-AW
Condition :
Used
Manufacturer :
Jung
Model :
HF50
Year(s) :
1968
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Grinding length: 500 mm
Grinding width: 200 mm
Workpiece height: 250 mm
Turning speeds: 1000 - 4000 rpm
Table surface area: 600 x 200 mm
Grinding wheel size: 225 x 20 x 51 mm
Grinding spindle drive: 1.5 kW
Table feed: 1 - 20 m/min
Total power requirement: 2.6 kW
Machine weight: approx. 2 t
Machine dimensions: 2.6 x 1.6 x 1.8 m
Automatic feed
2-axis digital display
Stepless speed control
Water-cooled sine angle magnetic clamping plate 400 x 135 mm
10 mm magnetic pitch
Sony digital display with scales for transverse and height adjustment
Swing-out dresser on the grinding head
Table direction reversal with contactless inductive switches
LOSMA belt filter coolant system
