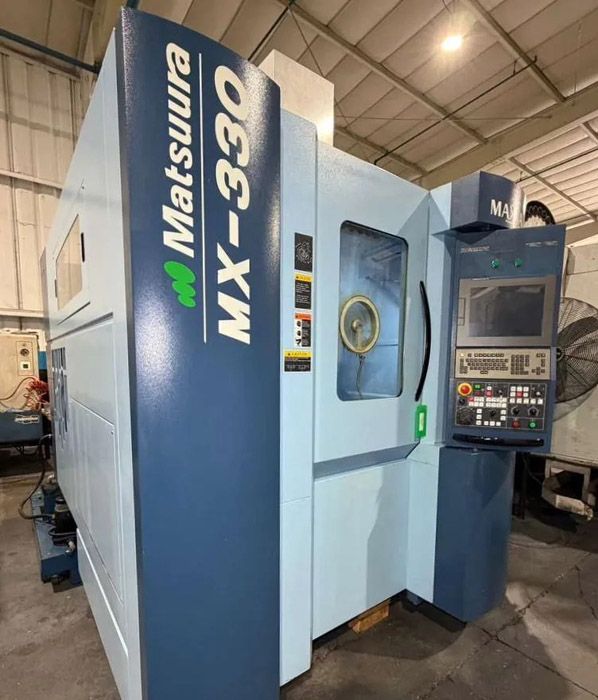

Matsuura MX-330 5 Axis

X Axis Travel: 17.13′′
Y Axis Travel: 18.31′′
Z Axis Travel: 22.05′′
A Axis Rotation: -125° to +10°
C Axis Rotation: 360° Continuous
5-Axis Simultaneous Machining
Matsuura G-Tech 31i (Fanuc) CNC Control
Renishaw Tool Probe
Renishaw Receiver
Coolant System
Through Spindle Coolant
Cool Jet Coolant Unit
Chip Conveyor
Rigid Tapping
Spindle Orientation
Automatic Tool Changer 60 Positions
Tool Taper CAT-40
Max Tool Diameter 3.14′′
Max Tool Diameter (No Adjacent Tools) 5.90′′
Max Tool Length 11.81′′
Max Tool Weight 22 lbs
Trunnion Table Diameter 9.84′′
Max Workpiece Diameter 12.99′′
Max Workpiece Height 12.59′′
Max Table Load 176 lbs
Spindle Speed 15000 RPM
Spindle Motor Power 25 HP
Machine Dimensions 205′′ x 183′′ x 126′′
Machine Weight 13,860 lbs
