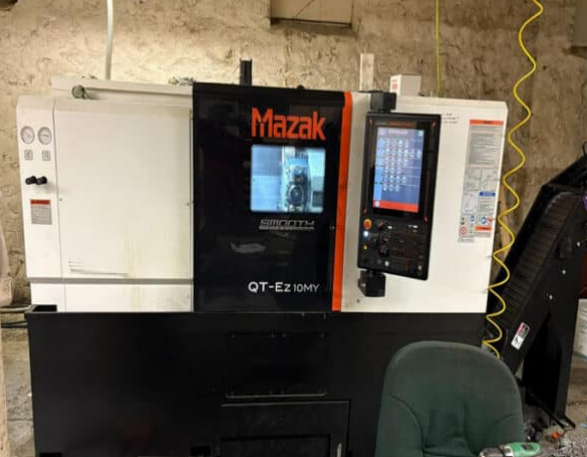

Mazak Mazak SmoothEZ CNC Control 4,200 rpm QT-EZ10MY 3 Axis

X-Axis Travel: 8.5" (215 mm)
Y-Axis Travel: 4" (100 mm)
Z-Axis Travel: 25" (635 mm)

Maximum Swing: 27.4"
Maximum Machining Diameter: 13.5"
Standard Machining Diameter: 9.25"
Maximum Machining Length: 20.2"

Bar Capacity: 3.0"
Chuck Size: 10"
Chuck Load Capacity: 200 lbs
Shaft Work Support Capacity: 1,100 lbs

Spindle Speed: 4,200 rpm
Spindle Torque: 123 ft-lbs (167 Nm)
Spindle Nose: A2-6
Motor Output (30 min): 20 hp
Motor Output (10 min): 7.5 hp / 5.5 kW

Turret: 12-position drum turret
Live Tooling Speed: 6,000 rpm
Live Tooling: 6 holders

Mazak SmoothEZ CNC Control
Y-Axis
Tailstock
Tool Pre-Setter
Chip Conveyor

Machine Dimensions (L×D×H): 109.1" × 75" × 67.9"
Machine Weight: 12,000 lbs
Operating Hours: 1,737 cutting hours
