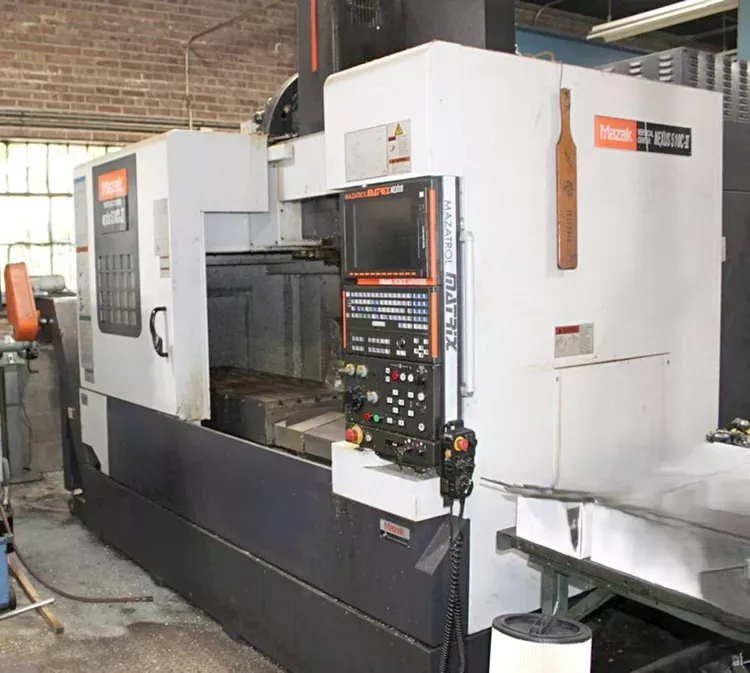

Mazak NEXUS VCN 510C/40-II 3 Axis

MAZAK NEXUS VCN 510C/40-II
2007

Type: CNC, Machining Centers
X-Axis Travel: 41.34"
Y-Axis Travel: 20.8"
Z-Axis Travel: 20.8"
Power: 25 hp
RPM: 12,000 RPM
Number of Tools in ATC: 30
Taper Size: 40
Pallet Width: 21.65"
Pallet Length: 51.18"
Number of Axis: 3
Control: Mazak Matrix Nexus CNC
Dimensions: 120" x 112" x 114" High
Weight: 15,200 lbs
Rapid Traverse Rate: 1417 inches per minute
Cutting Feed Rate: 787 inches per minute
Spindle Nose to Table Min: 5.9"
Spindle Nose to Table Max: 25.98"
Table Length: 51.18"
Table Width: 21.65"
Number of T-Slots: 5
T-Slot Width: 5/8"
Max Table Load Capacity: 2,640 lbs
Spindle Type: Direct Drive
Spindle Power: 25 HP
Tool Weight Max: 13.78 lbs
Max Tool Diameter: 3.15"
Max Tool Length: 13.8"
Tool Changing Time: 1.3 seconds
Air Required: 80 psi, 4 scfm
Power Supply: 220v / 35 kva / 3-Phase

Mazak Matrix Nexus CNC Control
Hi-Pressure Thru Spindle Coolant
Renishaw Wireless Probing System
12,000 RPM Precision Spindle
MPG Control
PCMCIA Card Slot
USB Ports
Synchronized Tapping
Spindle Orientation
2D High Speed Software
High Pressure Flood Coolant
Telescopic Way Covers
Spindle Chiller Unit
Work Light
Leveling Pads
Chip Conveyor
