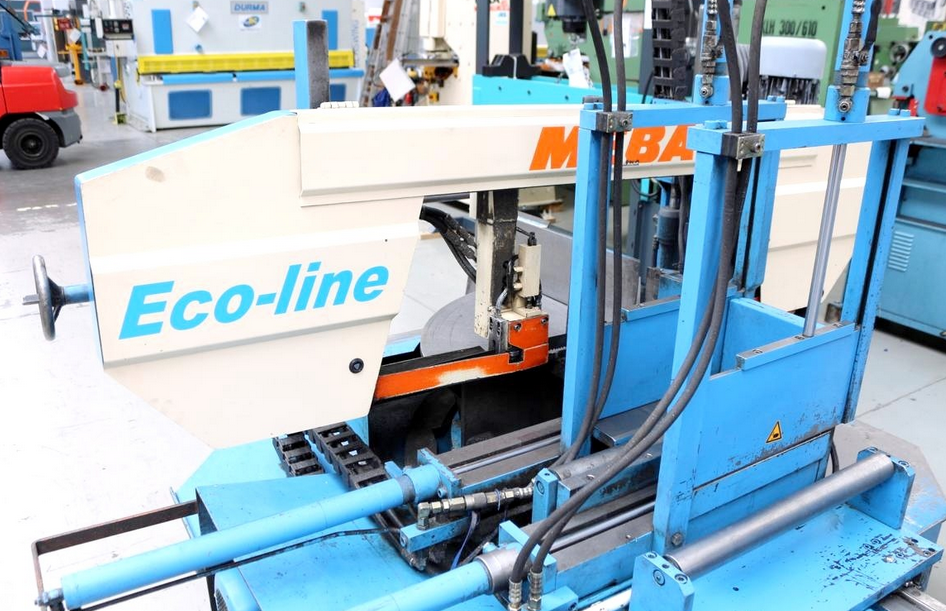

Meba ECO 335 DGA Band saw CNC Controller SIEMENS

Cutting Diameter: 335 mm
Capacity 90° Flat: 500 x 335 mm
Capacity 45° Round: 330 / 305 mm
Capacity 45° Flat: 320 x 335 / 305 x 335 mm
Capacity 60° Round: 180 mm
Capacity 60° Flat: 170 x 335 mm
Saw Band Size: 4400 x 34 x 1.1 mm
Control: SIEMENS CNC
Saw Blade Speed: 15 - 150 m/min
Work Height Max.: 750 mm
Material Layer Capacity: Max. 250 kg/m
Coolant Tank Capacity: 80 l
Oil Volume: 30 l
Power Capacity: 5.5 kW
Weight: 1980 kg
Dimensions: 2900 x 2350 x 1900 mm
Fully Automatic Double Mitre Bandsaw
Electric Mitre Adjustment via Servo Motor
Adjustment Right up to 60°
Adjustment Left up to 45°
Material Feed: 0 - 600 mm
Multiple Feed: 0 - 9999 mm
Infinitely Variable Lowering Speed: 0 - 300 mm/min
Frequency-Controlled AC Drive
Automatic Cutting Pressure Monitoring
Automatic Feed Monitoring
Hydraulic Full-Stroke Material Clamping
Automatic Movement of Clamping Vices
Servo-Controlled Ball Screw Material Feed
Roller Conveyor
Operating Instructions
MEBA Hydraulic Bundle Tensioning Device
