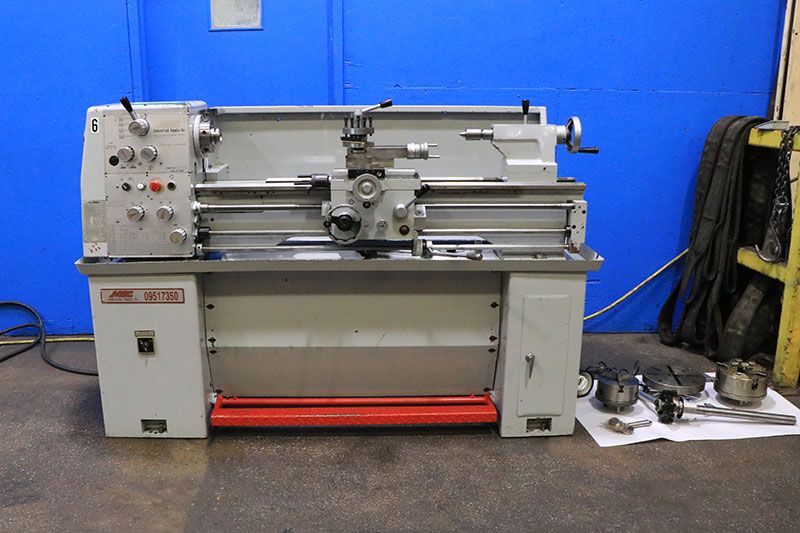

MSC Engine Lathe 2000 RPM MSC-VECTRAX 09517350 13"

MSC-VECTRAX 09517350 13"
2000

Swing over bedways 13 in
Swing in removable gap 19.5 in
Swing over cross slide 7.5 in
Hole through spindle 1.375 in
Distance between centers 40 in
Spindle nose D1-4" camlock
Spindle speed range (8) 105–2000 RPM
English threading range (32) 4–56 TPI
Metric threading range (24) 0.4–7 mm
Longitudinal feed range 0.0015–0.010 in/rev
Cross feed range 0.0005–0.0035 in/rev
Tailstock spindle taper #3MT
Tailstock spindle travel 4.375 in
Approximate floor space 76 in x 30 in x 58 in
Approximate weight 2,025 lbs
Inch and metric threading capability
Lever-type 5C collet closer and nose piece
6 in 3-jaw chuck
8 in 4-jaw chuck
10 in faceplate
Thread dial
Toolpost
Live center for tailstock
Foot brake
Coolant system
Hardened bed ways
3 HP main motor 220/440V 3-phase 60 Hz (wired 220V)
