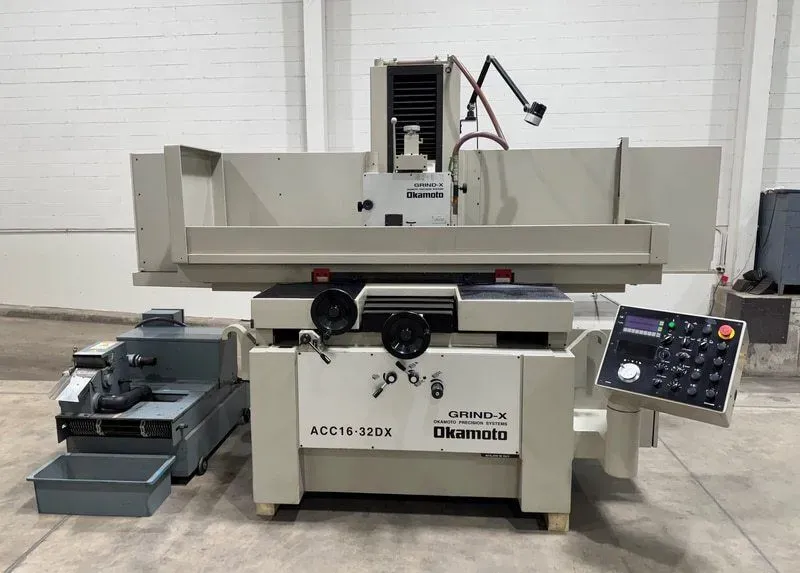

Okamoto ACC-16.32DX

Table Working Capacity: 16" x 32"
Table Manual Capacity (Cross x Long): 18" x 38"
Table Load Capacity: 925 lbs

Longitudinal Feed Rate: 1 – 82 ft/min
Vertical Rapid Feed & Downfeed: 16 in/min

Cross Feed Hand Feed per Revolution: 0.25"
Cross Feed Automatic Intermittent Feed: 0.02" – 0.8"
Cross Feed Automatic Continuous Feed: 4 – 40"

Servo Driven Automatic Downfeed Range: 0.00005" – 0.0015" (10 stages)
Spark-Out Cycles: 0 – 5

Grinding Wheel Size (Dia x Width x Bore): 14" x 1.5" x 5"
Grinding Wheel Speed: 1800 rpm

Grinding Wheel Spindle Motor: 5 hp
Hydraulic Oil Pump Motor: 2 hp
Vertical Feed Motor: 0.5 hp AC servo

Electromagnetic Chuck Size: 16" x 32"
Over-the-Wheel Dresser
Coolant Filtration System
Vertical Position Display
Automatic Grinding Cycle Control (surface, plunge, rough, finish, spark-out, table park)

Machine Dimensions (L×W×H): 132" x 87" x 82"
Machine Weight: 8800 lbs
