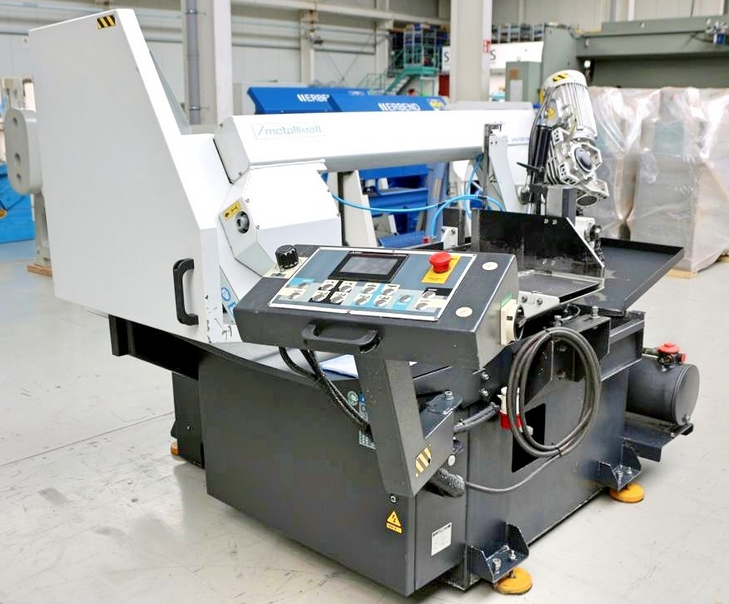

Pegas 300 x 320 A-CNC-R Bandsaw SPS NC

Cutting Diameter: 300 mm
Saw Band Size: 3660 x 27 x 0.9 mm
Capacity 90° Flat: 320 x 290 mm
Capacity 45° Round: 290 mm
Capacity 45° Flat: 260 x 280 mm
Capacity 60° Round: 200 mm
Capacity 60° Flat: 180 x 170 mm
Coolant Capacity: Approx. 100 l
Control: SPS NC
Total Power Requirement: 2.4 kW AC
Weight: 904 kg
Dimensions: 2410 x 1920 x 2020 mm
Robust Electro-Hydraulic Mitre Band Saw
Fully Automatic
Automatic Material Feed
Material Feed Unit with Recirculating Ball Screws
PLC MITSUBISHI Control Unit
20 Programs
15 Cutting Lengths Programmable per Program
Programmable Number of Pieces
Mitre Angle Range: 0° to 60°
Ball-Bearing Rotary Table
Automatic Mitre Cuts up to 45°
Semi-Automatic Mitre Cuts up to 60°
Manual Mitre Adjustment
Stepless Mitre Angle Adjustment
Carbide Plate Saw Blade Guides
Continuously Adjustable Saw Feed via Fine Throttle
Strong Machine Bed
Torsion-Free Saw Frame
Stepless Saw Blade Speed Adjustment
Coolant Device
Operating Instructions for Machine and Control System
PEGAS Chip Conveyor
