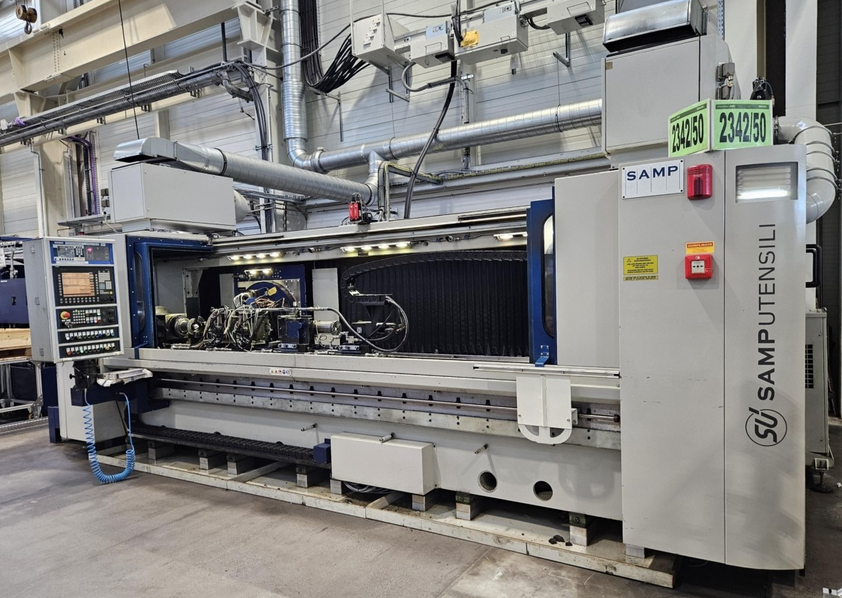

Samputensili S 3000 GW 6000 rpm Worm Grinding Machine
EUROPE (Western and Northern)
Z-axis travel: 3000 mm
X-axis travel: 185 mm
Control: Siemens Sinumerik 840D SL
Grinding diameter: 200 mm
Profile depth: 30 mm
Max. workpiece length: 2790 mm
Grinding length: 2310 mm
Maximum screw pitch: -/+ 50°
Maximum number of gears: 1 - 999
Max. workpiece weight: 250 kg
Grinding wheel diameter: 450 - 330 mm
Grinding wheel thickness: 20 - 70 mm
Roll diameter: 120 mm
Grinding wheel spindle speed: 1500 - 6000 rpm
Workpiece spindle speed: 0 - 600 rpm
Pitch axis speed: 0 - 4 rpm
Dressing spindle speed: 1500 - 16000 rpm
Feed speed Z-axis: 0 - 10000 mm/min
Feed speed X-axis: 0 - 10000 mm/min
Total power requirement: 150 kVA
Machine dimensions: 10.65 x 5.37 x 2.75 m
Machine weight: approx. 30 t
CNC worm grinding machine
KNOLL VL1500/5000 filtration system
Many accessories
Documentation
