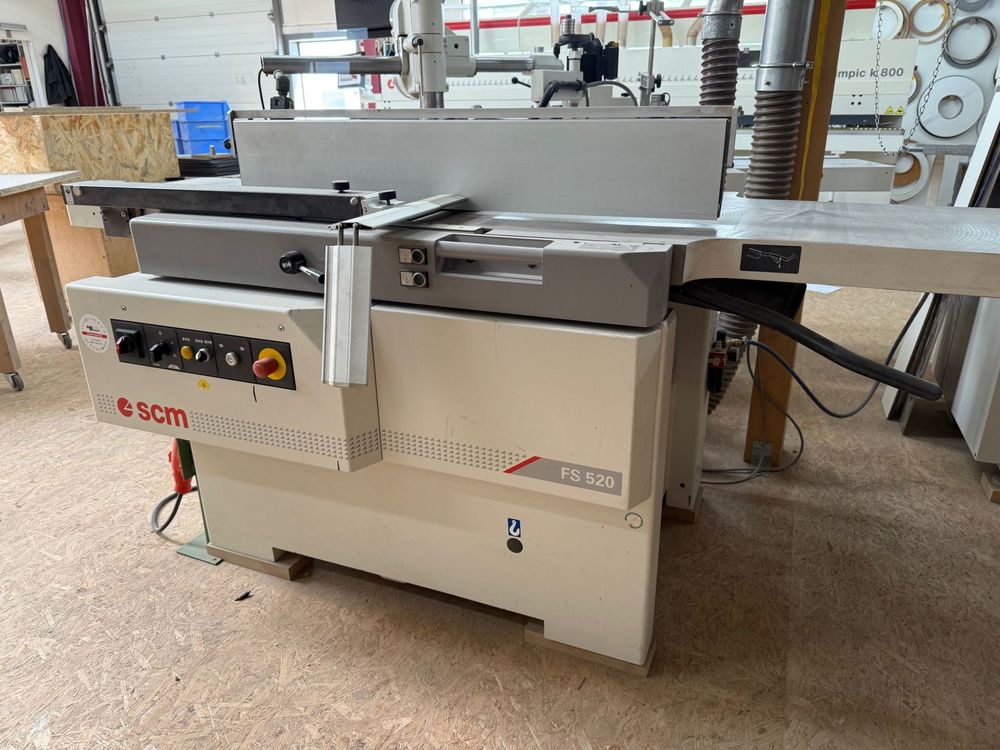

SCM FS 520

TECHNICAL DATA:
- Usable working width: 520 mm
- Planer table length: 2300 mm
- Cutter spindle diameter/number of knives: 120/4 mm/piece
- Planer table system adjustable from 90 to 45 degrees. Length: 1100 mm
- Thicknesser/planer speed: 5000 rpm
- Planing height min./max.: 3/250 mm
- Thicknesser feed speed: 5-8-12-18 m/min
- Motor power: 5.5 kW

The machine is complete with:
* Feed table adjustment via parallelogram system
* Simultaneously folding work tables with locking mechanism and equipped with mechanical safety device
* Extractor hood for planer and thicknesser with a diameter of 120 mm
* Motor-driven thicknesser table lift with 2 speeds and micrometric positioning
* Thicknesser table without table rollers with vertical movement via 4 steel threaded spindles
* Rubber-coated extraction roller at the top of the outfeed
* Linked pressure bar at the infeed
* Electronic digital display for planing height with Decimal graduation

- Automatic motor brake
- Jointer guard
- Micro-circuit breaker to monitor the correct positioning of the jointer tables and extraction hoods
- Emergency stop switch
- Lockable main switch
- Motor protection switch
- Low-voltage 110-volt circuit
- Manual star-delta start-up
- CE declaration of conformity
- Tersa cutter block with disposable reversible knives
Note: A reinforced motor is recommended for large chip removal rates.
Note: This cutter block cannot be used for rebating work.

For convenient and quick conversion from planing to thicknessing operations, complete with:
- Automatic lifting/lowering mechanism for table conversion
- Self-positioning extraction hood
- Automatic cutter block cover
Pivoting auxiliary stop 1.00 each
For thin workpieces
