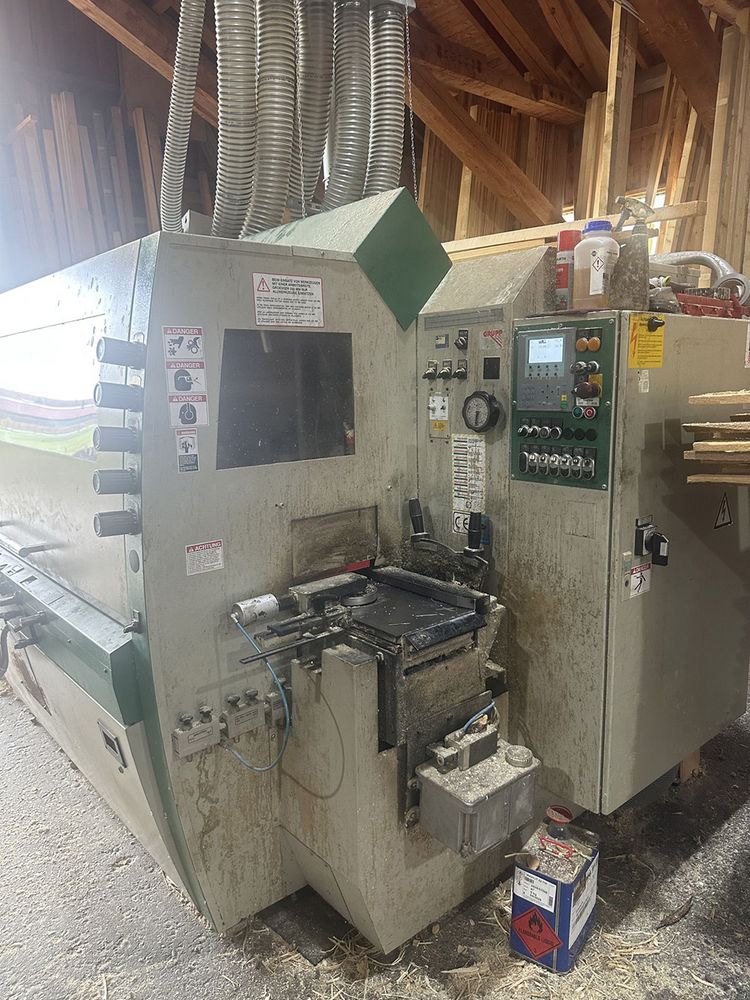

Weinig Profimat 26 S
EUROPE (Western and Northern)
With air cushion table, chamfering unit
Max. working width: 260 mm
Max. working height: 160 mm
Number of spindles: 6
1st spindle: bottom
Spindle diameter: 40 mm
Clamping length: 270 mm
Speed: 6000 rpm
Motor power: 11.0 kW
2nd spindle: right
Spindle diameter: 40 mm
Clamping length: 170 mm
Speed: 6000 rpm
Motor power: 11.0 kW
3rd spindle: left
Spindle diameter: 40 mm
Clamping length: 170 mm
Speed: 6000 rpm
Shared motor with right spindle
With ATS/M system (Automatic Positioning Control)
4th spindle: top
Spindle diameter: 40 mm
Clamping length: 270 mm
Speed: 6000 rpm
Motor power: 11.0 kW
with ATS/M system - Automatic Positioning Control
5th Spindle: Top Chamfer Unit
6th Spindle: Bottom
Spindle Diameter: 40 mm
Clamping Length: 270 mm
Speed: 6000 rpm
Motor Power: 11.0 kW
Motor Brakes: Mechanical
Electric Hood Lock: Yes
Upper Spindle Height Adjustment: Electric with Feed
Feed Brake System: Yes
Infinitely Variable Feed Speed: 3 - 26 m/min
Feed Roller Pressure: Pneumatic
Feed Power: 4.0 kW
Feed Drive: Cardan Shaft
Lubricant Pump: Automatic
Max. Chip Removal: 10 mm
Jointing Cutter on Surface Planer: Yes
Driven Rollers in Table: 1
Control Type: PLC Control
Spindle Dimension Display: Digital Display
Infeed Rollers: Front Surface planer: Yes
Air cushion table: Two-track
Central lubrication point: Yes
Description: Surface planer table with 1.0 m jointing guide
Pneumatic pressure
Infeed roller in front of surface planer
Driven rollers in the table
Total connected load: 52 kW
