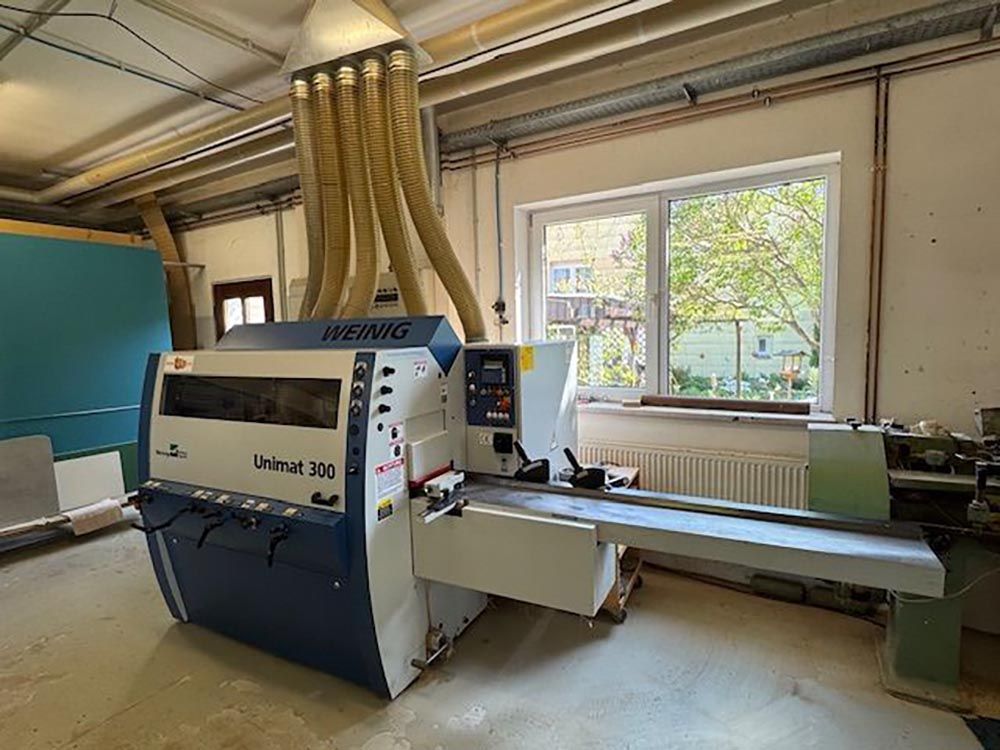

Weinig Unimat 300

Max. working width: 230 mm
Max. working height: 120 mm

Number of spindles: 5
1st spindle: bottom

Spindle diameter: 40 mm
Clamping length: 240 mm

Speed: 6000 rpm
Motor power: 5.5 kW

2nd spindle: right

Spindle diameter: 40 mm
Clamping length: 130 mm
Speed: 6000 rpm
Motor power: 7.5 kW

Shared motor with left spindle

3rd spindle: left

Spindle diameter: 40 mm
Clamping length: 130 mm
Speed: 6000 rpm

4th spindle: top

Spindle diameter: 40 mm
Clamping length: 240 mm
Speed: 6000 rpm
Motor power: 7.5 kW

5th spindle: bottom

Spindle diameter: 40 mm mm
Clamping length 240 mm
Speed ​​6000 rpm
Motor power 4.0 kW

Motor brakes: electric
Upper spindle up/down adjustment: electric with feed
Feed brake system: Yes
Infinitely variable feed speed up to: 6 - 12 m/min
Feed roller pressure: pneumatic
Feed power: 0.75 kW
Feed drive: Cardan shaft
Lubrication pump: manual
Max. chip removal for joining: 10 mm
Joining bevel cutter on planer: Yes
Driven rollers in table: 1
Control type: PLC control
Dimension display spindle: mechanical numerical display
Digi-Set display: left and upper spindle

Switchable display for tool radius and workpiece width
Feed rollers in front of planer: Yes
Central lubrication point: Yes
Description: left and upper spindle with ATP 300 Control

Pneumatic pressure
Feed roller in front of planer
Driven rollers in the table
