100000 Others GSTL 61/1F Multibar Computerized Jacquard Warp Knitting Machine 201”
Ref :
1198394-1-GO
Condition :
Used
Manufacturer :
Others
Model :
GSTL 61/1F
Short Description :

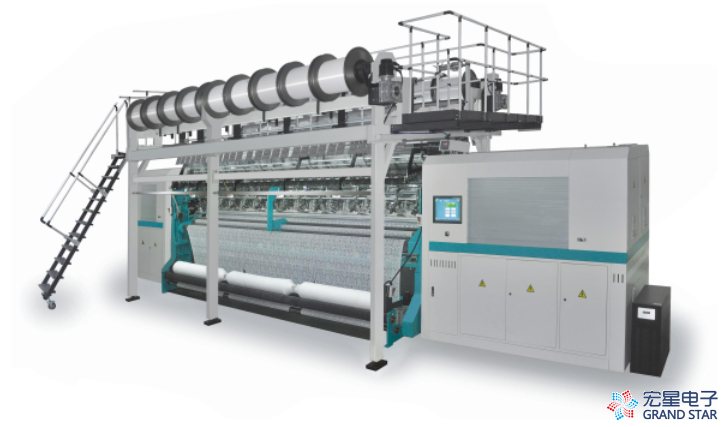

Multibar Computerized Jacquard Warp Knitting Machine
Width :
201”
Year(s) :
2014
Quantity :
100000
Location :
Seller or machines location:
ASIA (China - Taiwan - HKG)
ASIA (China - Taiwan - HKG)
Last check :
23 Oct. 2014
Brand: Grand Star
Brand: Grand Star
Brand: Grand Star
1. Machine Basic Specification:
Model: GSTL 61/1F

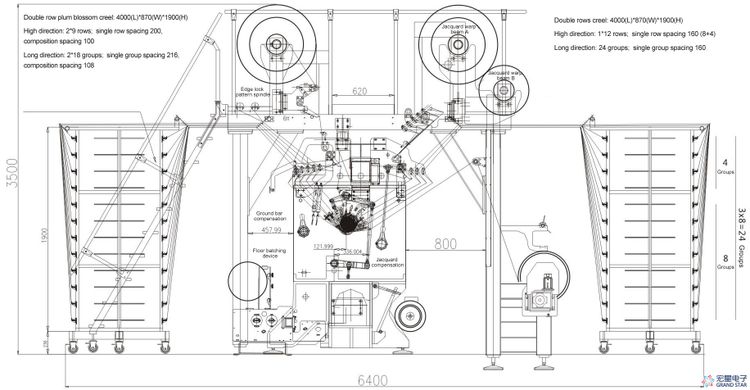

Dimension(L*W*H): 9600*6400*3500mm
Working Width: 201”
Main Motor Power: 7.5KW
Gauge: E24

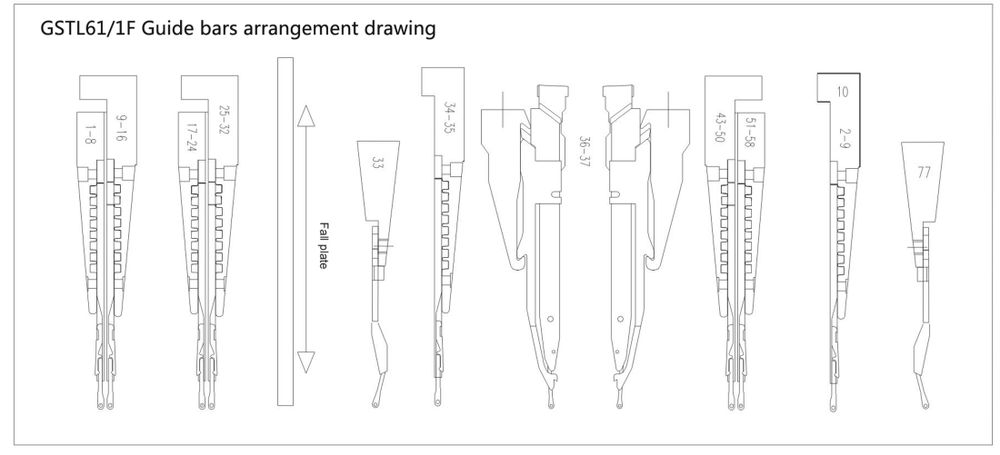

Guide Bars: 32 front pattern bars(8S), 1 ground bar, 2 edge lock bars, 1 separated jacquard bar, 24 back pattern bars(8S) and 1 spandex bar
Yarn let-off & take-up device: Electronic
Pattern drive: Electronic
Total Shogging: 170 needles
2. Machine Application:
Specialized in producing high-quality elastic and rigid lace edgings and allover lace for clothing, lingerie & summer clothing fabric.
3. Machine Features:
(1) The lace is being a sence of embossed, so as to prominent the luxury style.
(2) Using a changable and variety of effets design.
