1040 Hot foil stamping and die cutting

Ref : 2809536-4-CP

Condition : Used

Manufacturer : -

Model : 1040

Short Description : Hot foil stamping and die cutting

Year(s) : 2025

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

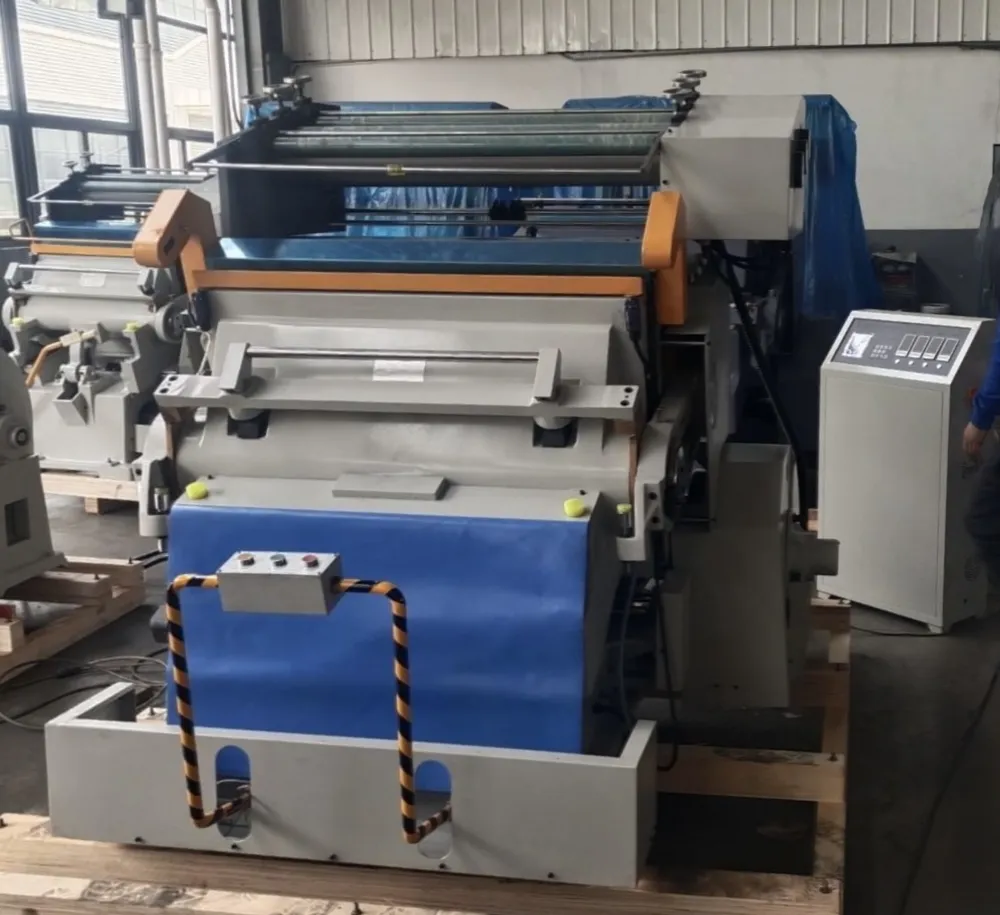

TYMB-1040 Hot foil stamping and die cutting
Press for Hot foil stamping and die cutting
Automatic centralized lubrication of the entire machine
Maximum platen size: 1040 × 720 mm
Maximum foil stamping area: 1020 × 700 mm
Pressing force: 170 tons
Operating speed: ≈1320 strokes/hour (about 22 cycles/min)
Foil feed: up to 700 mm
Heating zones: 4 zones
The machine has 3 rollers for foil tensioning
Number of foil feed groups: 3 groups
Foil feed adjustment: computerized setting
Heating temperature: up to 170 °C
Main motor: 4 kW
Total power: approx. 13 kW
Machine dimensions: approx. 2230 × 2100 × 2000 mm
Weight: approx. 4500 kg
