1530RS-ATC 3-axis

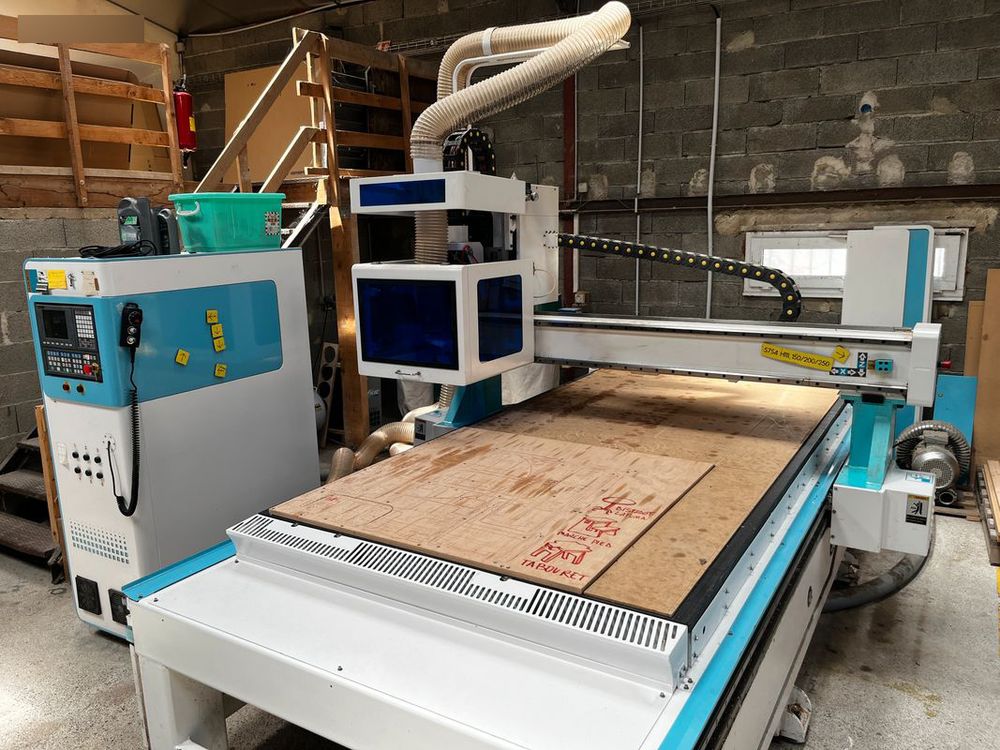

FRELON 1530RS-ATC CNC Machining Center + Complete Peripheral Package (Compressor, Dryer & Lifting Table)
Condition: Excellent used condition – 826 hours of operation.
Ideal for: 3-axis CNC machining and contouring of wood, plastics, and non-ferrous metals (aluminum, brass, etc.).

CNC Description:
High-performance and robust machine, meticulously maintained (lubrication and inspection every 50 hours).
• Dimensions / Travels: 3000 x 1500 x Z-axis: 200 mm.
• Structure: Ultra-rigid welded steel frame, ground prismatic rails (30 mm), automatic rail lubrication.
• Motorization: High-performance Yaskawa 750W servo motors on all 3 axes.

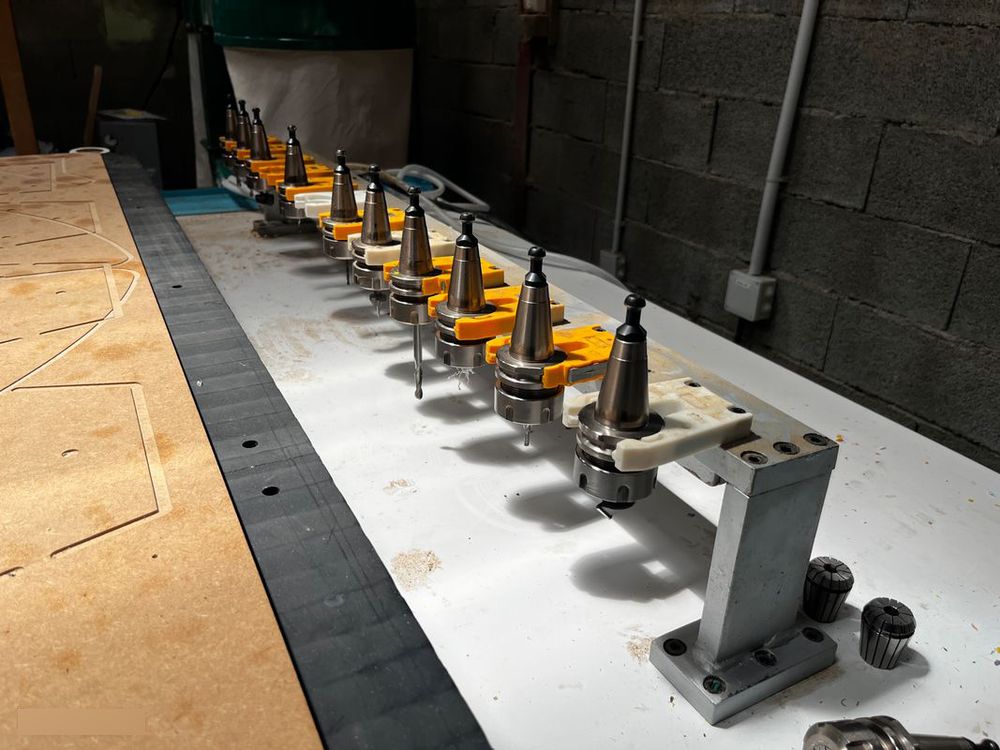

• Spindle: High-performance 9 kW (ER32, 24,000 rpm) with Automatic Tool Changer (ATC) and a 12-tool rack.
• Workpiece Holding: Vacuum table (two 7.5 kW pumps, 6-zone network).
• Control & Software: SYNTEC 6MA CNC control + Vectric Cut2D Pro toolpath software (French).

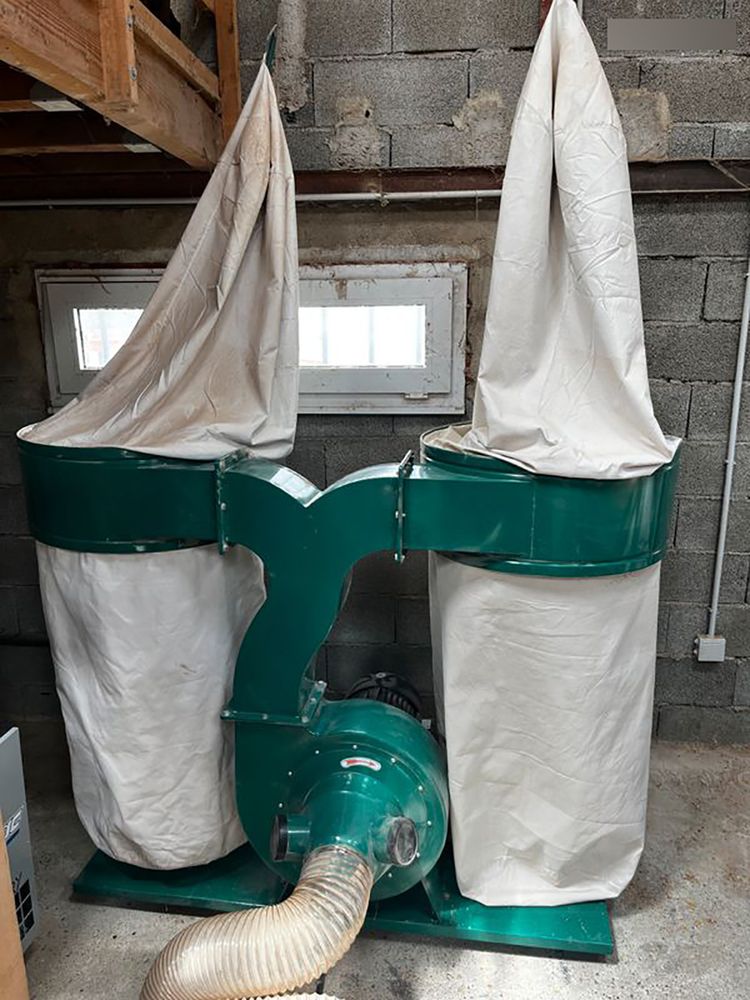

• Dust Extraction: Industrial chip extractor included (5.5 kW).
• Overall Dimensions: 4200 x 2100 x 2500 mm – Weight: 1900 kg.

Air Supply & Handling Equipment Included

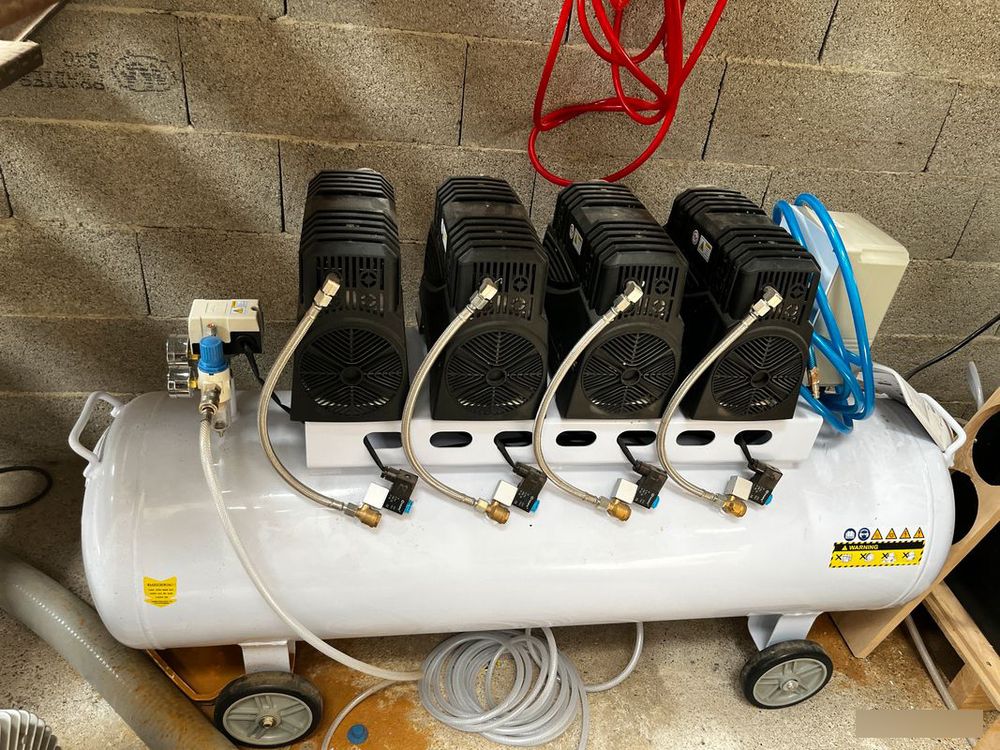

• HBM Professional Silent Compressor (200 Liters - SGS)
• FIAC TDRY 6 Air Dryer (600 L/min)

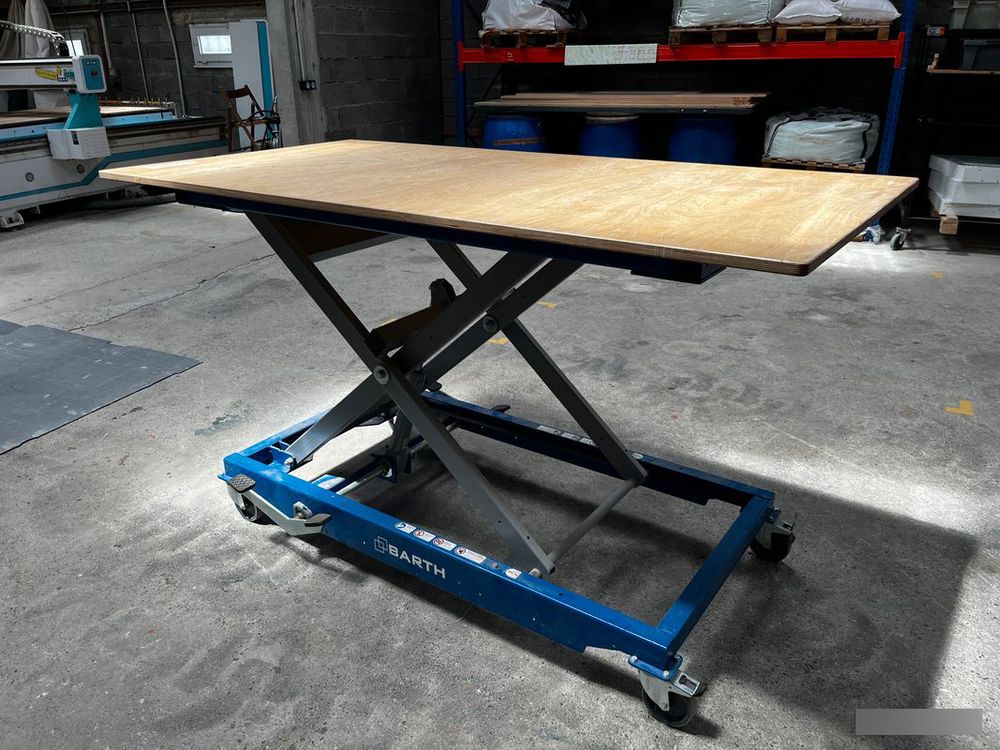

• BARTH 350 XL Lifting Table

Technical Requirements for Installation:
• Power Supply: 380V three-phase (total power required approximately 25 kW) + 220V standard.
• A lifting device (forklift or crane of approximately 4 tons) is required to move the main unit of the machine.
Equipment can be seen in operation. Ideal for woodworking, interior design, fab labs, or plastics/signage factories.
