Used Looms (air jet)

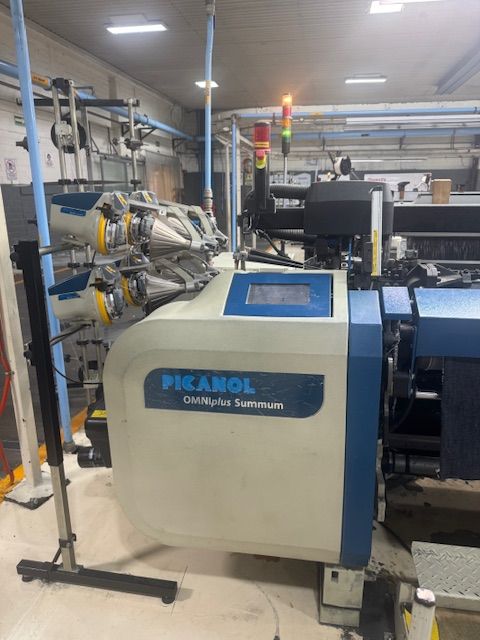

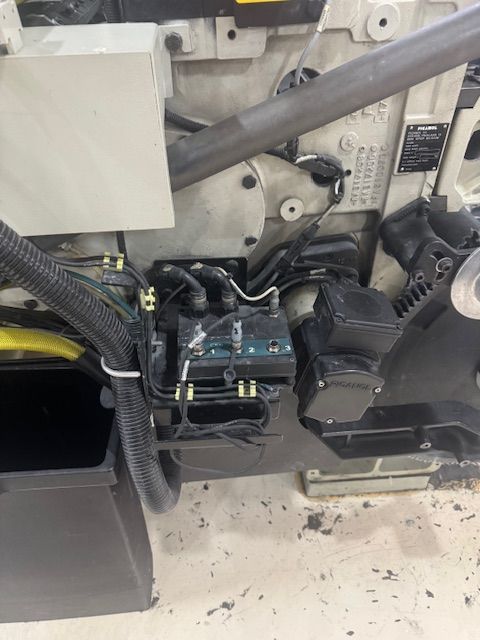

369 results60-Picanol Omni 2 P - CAM, Year 1999 Width : 190 cm Color: 2 Feeder : 2 Dobby: Staubli 1600 installed lever: 8 Year(s) : 1999 Location : AMERICA North (USA-Canada-Mexico)
Price : On request
More detailsTsudakoma ZA209i 190cm 20x dobby 16x cam motion 26x crank motion Only 6 dobby looms are 4 colours all the rest Year(s) : 1996 Location : MIDDLE EAST
Price : On request
More details<b>21 x Tsudokama Airjet Machine, 190cm</b> 2 colour Cam 203i--12 pcs 205i--9 pcs 550 RPM With 4 frames 1 be Location : MIDDLE EAST
Price : On request
More details<b>54 x Tsudakoma ZA205i,190 Cm width, Yamada PC33z cam box, 1993 </b> 6 Harness capacity 6 bank Stop Motion Year(s) : 1993 Location : AMERICA North (USA-Canada-Mexico)
Price : On request
More details<b>27 x Tsudakoma ZA209i,190 Cm width, Yamada PC33z cam box, 1995 </b> 6 harness capacity 6 bank stop motion 2 Year(s) : 1995 Location : AMERICA North (USA-Canada-Mexico)
Price : On request

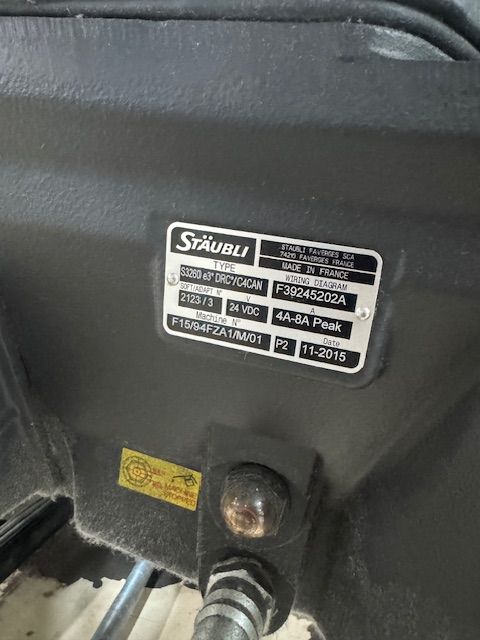

More details4 weft colors Stäubli electron. dobby S3220 / C4Can – 16 shafts installed Sumo motor electron. take-up and war Year(s) : 2015 Location : EUROPE (Western and Northern)
Price : On request
More details4 weft colors Staubli dobby 3220 / C4Can with 16 shafts installed Sumo motor ELO and ETU double whip rollers Year(s) : 2015 Location : EUROPE (Western and Northern)
Price : On request
More details4 weft colors Staubli dobby 2881 with 16 shafts installed Sumo motor ELO and ETU max warp beam flange dia. 1.0 Year(s) : 2010 Location : EUROPE (Western and Northern)
Price : On request
More details4 weft colors Staubli dobby 2871 with 16 shafts installed Sumo motor ELO and ETU max warp beam flange dia. 1.0 Year(s) : 2001 Location : EUROPE (Western and Northern)
Price : On request
More details4 weft colors Staubli dobby 2871 with 16 shafts installed Sumo motor ELO and ETU double whip rollers max warp Year(s) : 2001 Location : EUROPE (Western and Northern)
Price : On request
More details6 weft colors Staubli cam motion 1661 (of 2006) with 6 shafts installed Sumo motor ELO and ETU max warp beam Year(s) : 2001 Location : EUROPE (Western and Northern)
Price : On request
More details6 colors capacity, 4 installed STAUBLI dobby 2881/2 with 16 shafts off-loom take-up ECT and EWL running at 700 Year(s) : 2005 Location : EUROPE (Western and Northern)
Price : On request
More detailsAT2 dialog panel 8 colors Staubli dobby 2871-2 and 2861 with 20 shafts installed ECT and EWL inverter Motole Year(s) : 2002 Location : EUROPE (Western and Northern)
Price : On request
More details4 colors electronic STAUBLI dobby (12 shafts fitted) Each machine equipped with: 08 heald frames 04 weft acc Year(s) : 2016 Location : EUROPE (Western and Northern)
Price : On request
More detailsStaubli cam motion with 8 shafts 4 colors Each loom equipped with: 4 accumulators 1,5 beams 1,5 cloth roller Year(s) : 2017 Location : MIDDLE EAST
Price : On request
More detailsStaubli cam 1661 with 8 shafts capacity, 6 installed Electronic let off and take up 2 colors Each loom equipp Year(s) : 2005 Location : ASIA (South)
Price : On request
More detailsYear: 2008 Dobby Staubli 2881-2 or Cam Staubli 1661 6 stop bars Selvedge: Tuck in selvedge, centre tucking, no Year(s) : 2005, 2008 Location : EUROPE (Western and Northern)
Price : On request
More detailsColors 2 2vPrewinder/Set Shedding Motion Capacity 7 Shedding Motion Installed Capacity 6 Rotary Leno Selvedge Year(s) : 2001 Location : ASIA (South East)
Price : On request
More detailsColor: 2 Feeders : 2 Frames : 6 Off loom Take up Warp Stop Motion : 6 Bar Year(s) : 1994 Location : AMERICA North (USA-Canada-Mexico)
Price : On request
More detailsYear(s) : 2006 Location : EUROPE (Western and Northern)
Price : On request

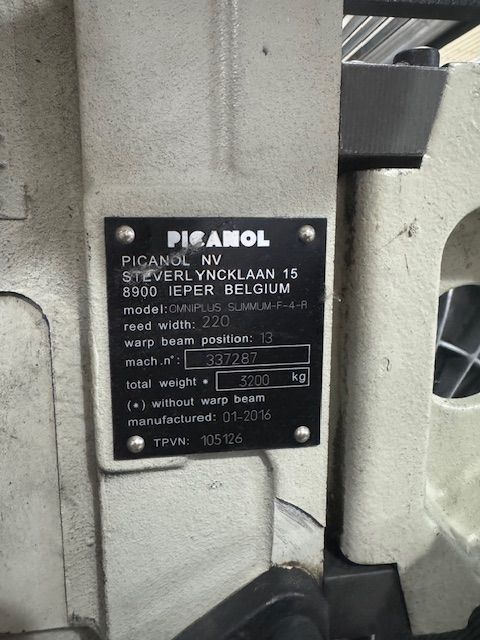

More detailsworking width 190cm 4 pcs. – F-4-R, year of production 2015 4 pcs. – F-4-P, year of production 2016 6 pcs. – F Year(s) : 2015, 2016, 2018 Location : EUROPE (Western and Northern)
Price : On request
More detailseasy Leno power supply required: 3 x 400 V / 4.25 kW (nominal power) including: Permanent Insertion Control (P Year(s) : 2008 Location : EUROPE (Western and Northern)
Price : On request
More detailsyear 2006 (3), 2008 (3) ww. 3800 mm, Stäubli dobby 2861B AT2 control, 4 colours, 4 pre-feeder Roj Super Elf X2 Year(s) : 2006, 2008 Location : EUROPE (Western and Northern)
Price : On request
More detailsYear(s) : 2004 Location : MIDDLE EAST
Price : On request
More detailsEshedding -8 shafts For each looms; -4 accumulators -4 colours -1,5 beam and cloth roller -8 frames -5000 Year(s) : 2021 Location : MIDDLE EAST
Price : On request
More detailsYou can find used Looms (air jet) on Wotol
Air jet weaving is one of the technology for weaving with rapier weaving, water jet weaving, projectile weaving. There are still few weaving companies using older methods like shuttle looms weaving and even hand weaving.
The air-jet loom was invented in Czechoslovakia in the 70s.
An air-jet loom uses a jet of air to blow the weft yarn through the warp shed. This technology enables very high speed because the yarn us transfered through the weft with the air jet instead of by mechanical means with other technologies. Air jet weaving looms can work at more than 1000 rpm which is double the speed of a rapier loom of the same width.
Air jet looms can produce from the simpliest fabric in taffeta to the most complicated with jacquard. Most spead machines are in cam or dobby.
This technology is well apreciated by technical fabric weaving companies because it also enables very consistent quality. It is also well spread for mass production for clothing thanks to its high productivity. Production with air jet looms is not as versatile as other weaving technologies and changing the quality of the product requires a lot of adjustments before production but once started the machine will produce very efficiently. This technology requires compressors to produce compressed air.
Main air jet looms producers are Picanol (Belgium), Toyota (Japan), Tsudakoma (Japan), Dornier (germany), Itema (Italy). Each manufacturer will have some stronge points than their competitors depending on the type of yarn used: cotton, synthetic, fiber glass, carbon, etc...
FAQ corner - questions and answers from members
What is the maximum speed of an air jet loom?
Most modern air jet looms can run at more than 1000 rpm. During some exhibitions we have seen airjet looms running at more than 1300 rpm. But aijet looms manufacturers will not commit on any speed becaude it depends on many factors such as the width of the machine obvioulsly, the qualty of the yars used, the knowhow of the producers, etc. Bit one thing for sure is that airjet loom technology is the one that enables the highest weaving speed.
Why air jet looms need more power than rapier looms?
The weft is blows through the loom by compressed air on an airjet loom. The production of this compressed air requires a lot of energy. We don't have comparison figures about the energy per pick required for air jet loom vs rapier loom. We will try to find some benchmark.
Why air jet looms' spare part consuption is less than other technologies?
There are less mechanical parts because on rapier looms you will need to replace the tapes and the grippers. Since you doin't have these mechanical parts on an air jet loom you just need to change the secondary air jet nozzle in a much lower frequency.
