China complete corrugator 1800 mm

Xinguang / Yantai 1800
Max. Size : 1800 mm
Condition : Good

Wet End / Paper Feeding

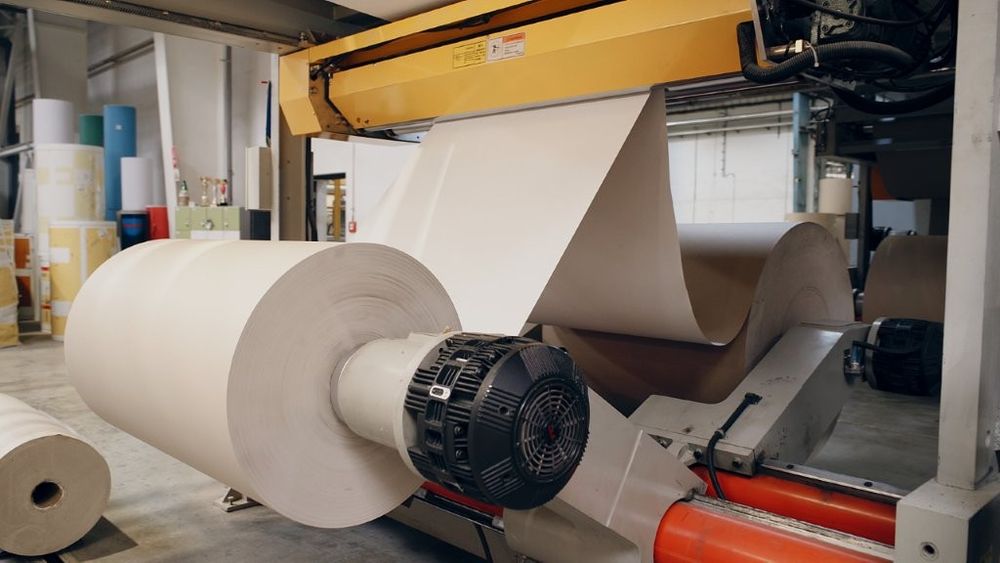

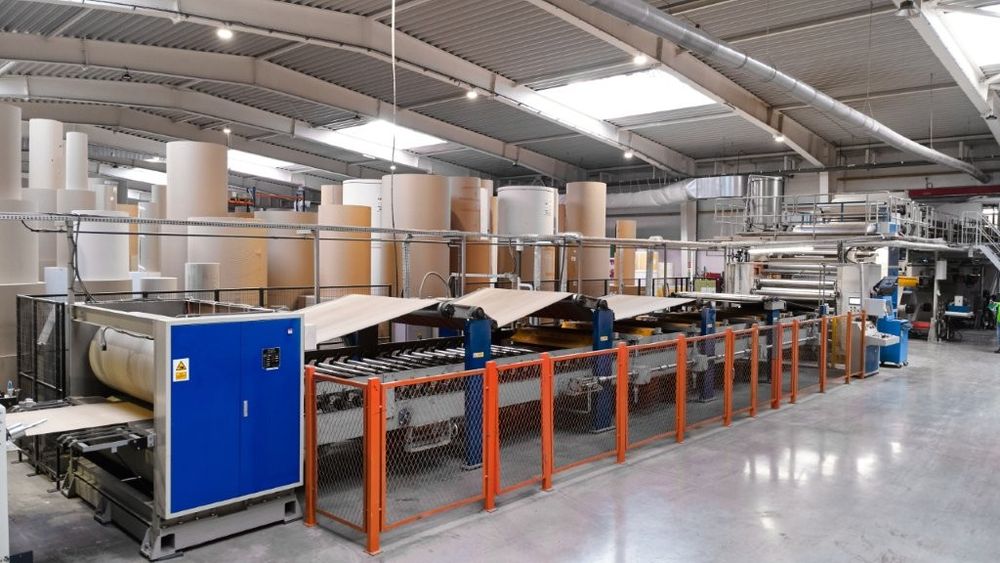

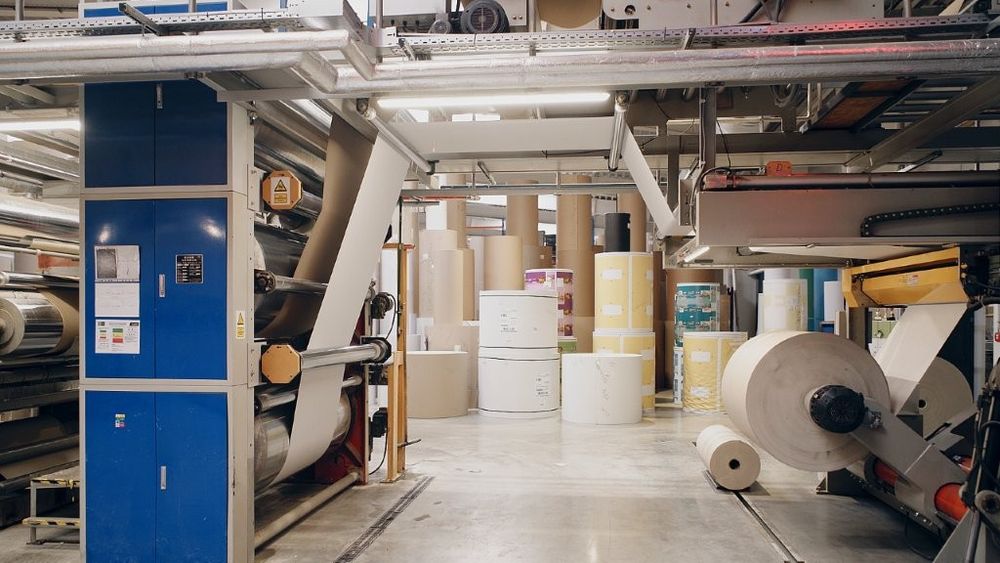

Hydraulic Mill Roll Stand (with Trolley) – Qty: 5 sets – Type: 1800W01M
Auto Splicer – Qty: 5 sets – Type: 1800JKJ (Auto Splicer spec referenced as 1800JZJ150)

Preheating / Single Facer Section

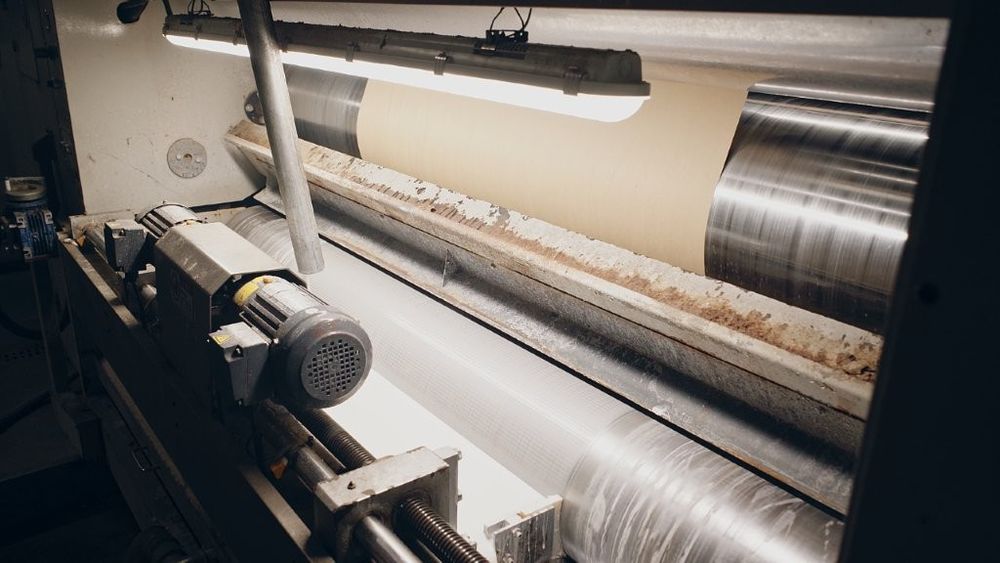

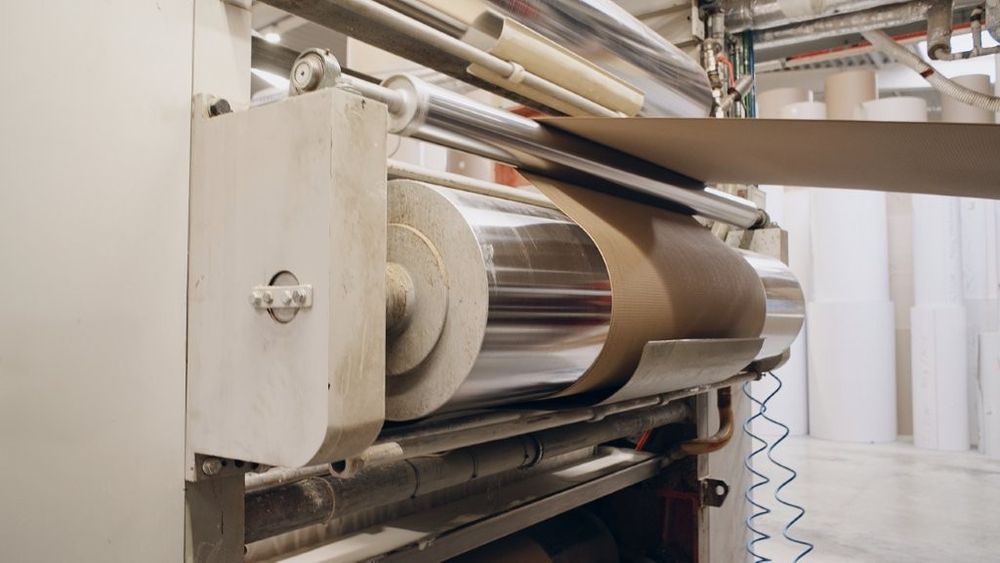

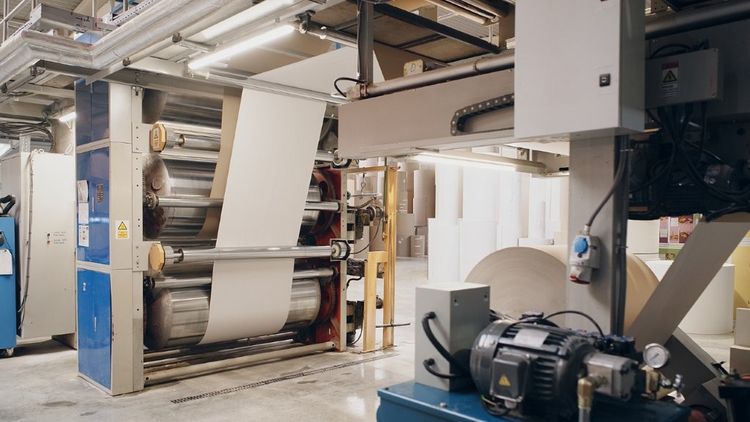

Liner Preheater – Qty: 2 sets – Type: 1800W20 (Dia. 900 mm)
Medium Preheater – Qty: 2 sets – Type: 1800W21 (Dia. 900 mm)

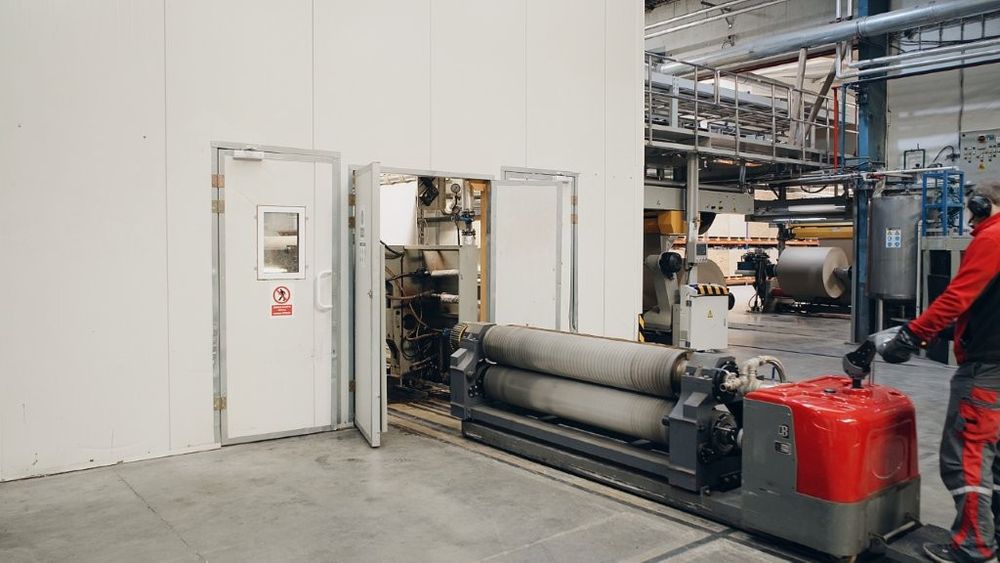

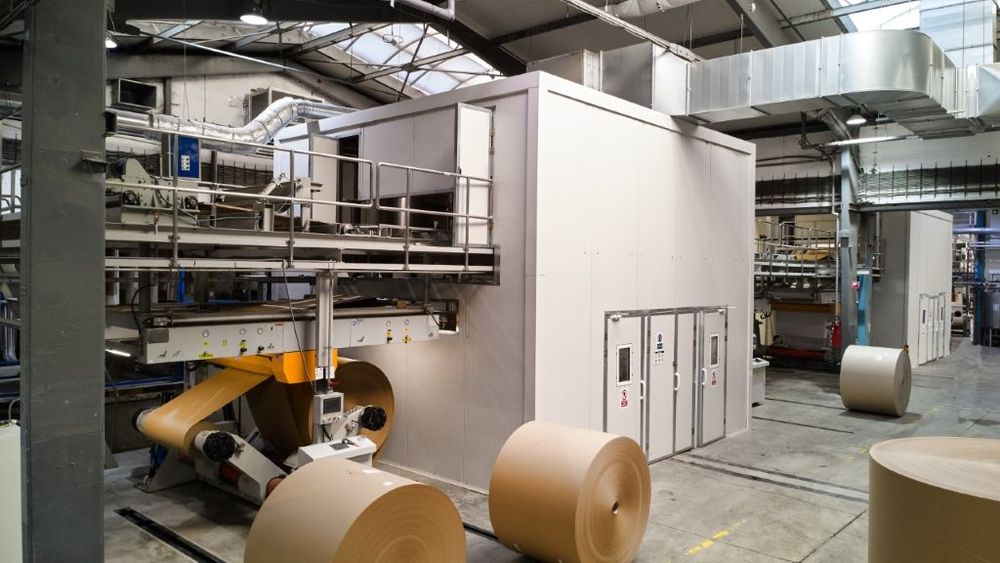

Sound proof room – Qty: 2
Cassette trolley – Qty: 2

Bridge / Web Handling

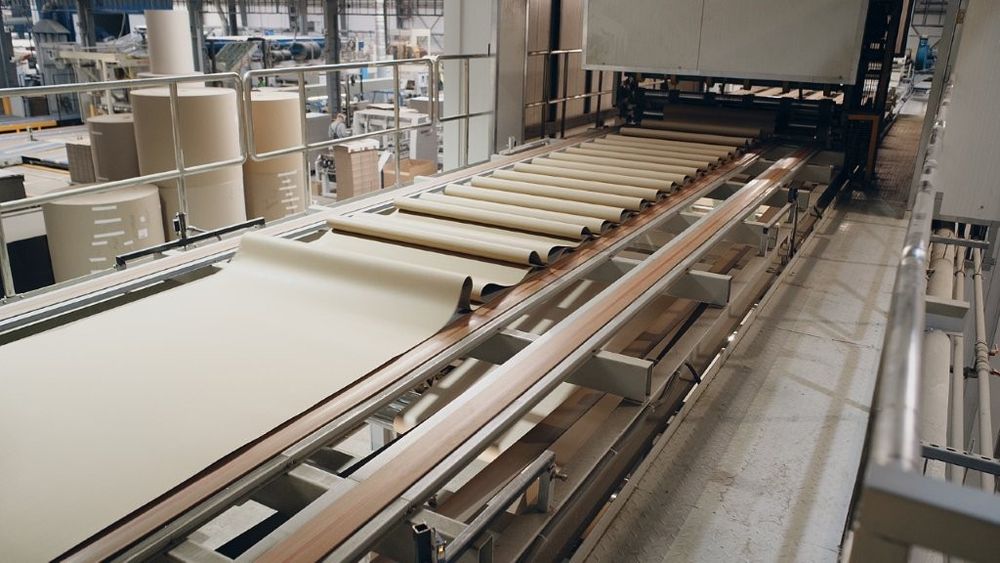

Over Bridge (Two layer) – Qty: 1 set – Type: 1800W03
Bridge correction machine control system (Double Layers) – Qty: 1 set – Type: 1800JP

Heating / Gluing / Double Facer
Triplex Preheater – Qty: 1 set – Type: 1800W22
Double Glue Machine – Qty: 1 set – Type: 1800W04 / 1800W04H
Double Facer – Qty: 1 set – Type: 1800W05G (Hot plates chrome treated)
Main Transmission – Qty: 1 set – Type: 1800W09

Dry End / Cutting / Slitting / Stacking
Rotary Shear – Qty: 1 set – Type: 1800W10 / 1800QD

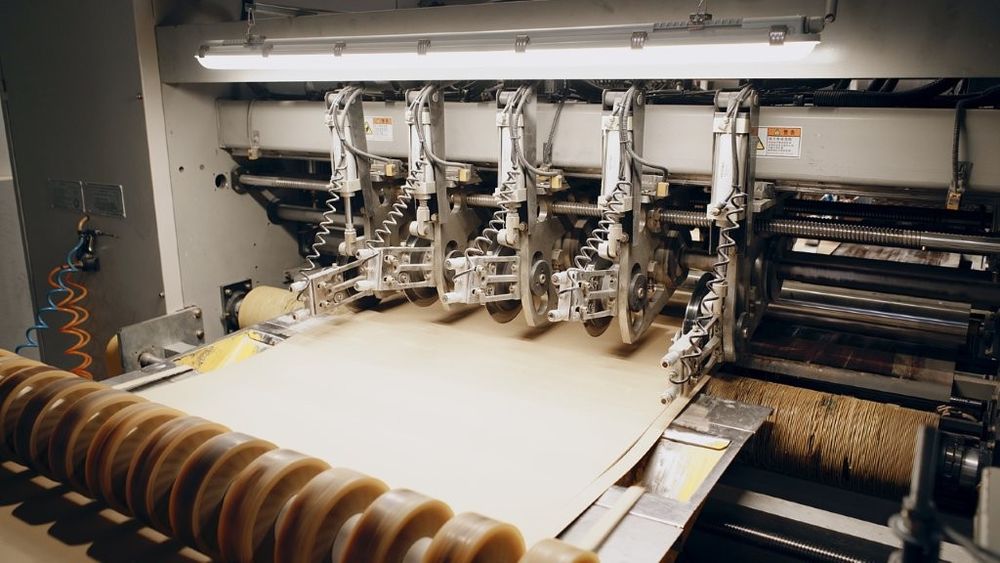

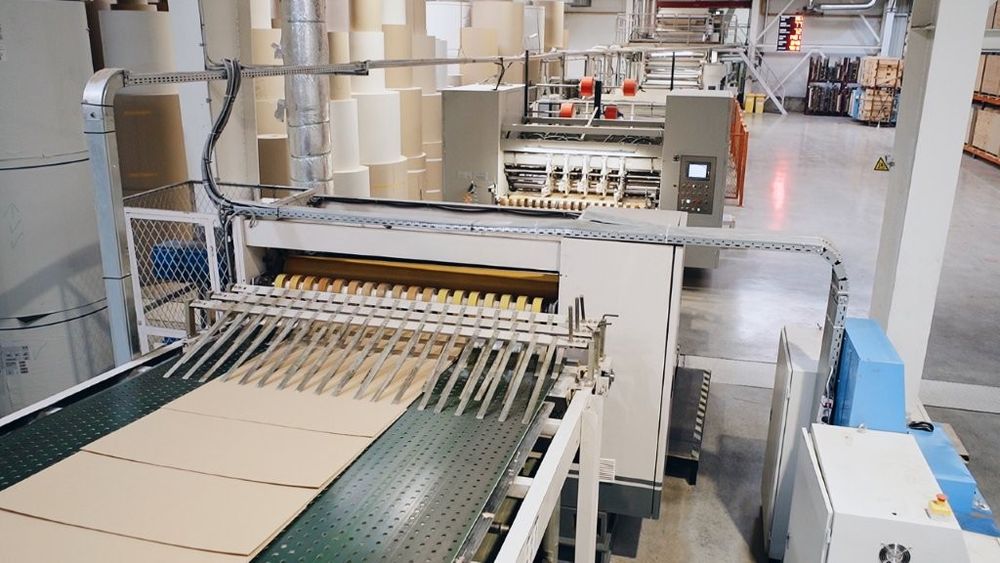

NC Slitter Scorer (Thin Blade) – Qty: 1 set – Type: 1800W06M (configuration: 5 knives / 8 scorers)
Double NC Cut Off – Qty: 1 set – Type: 1800W07

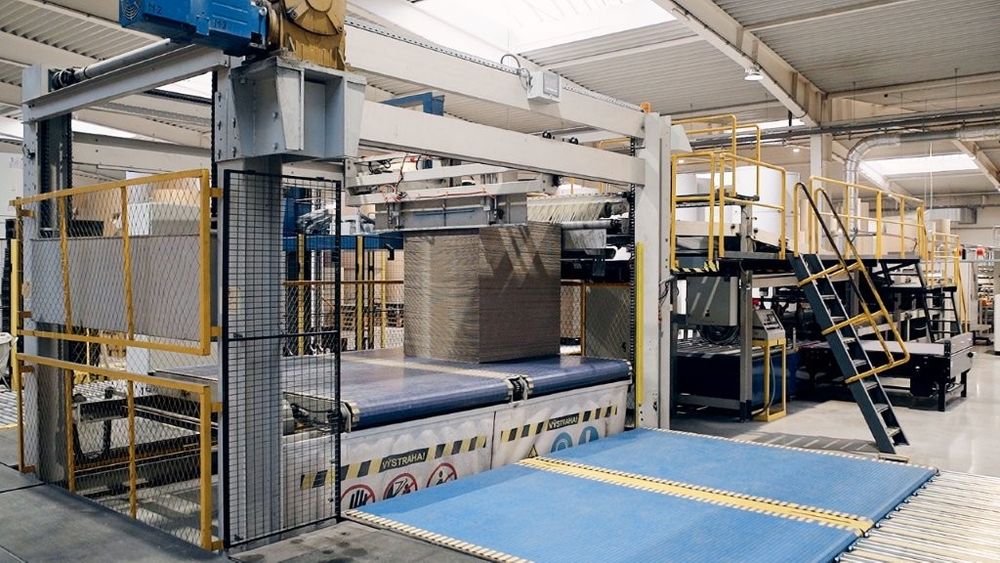

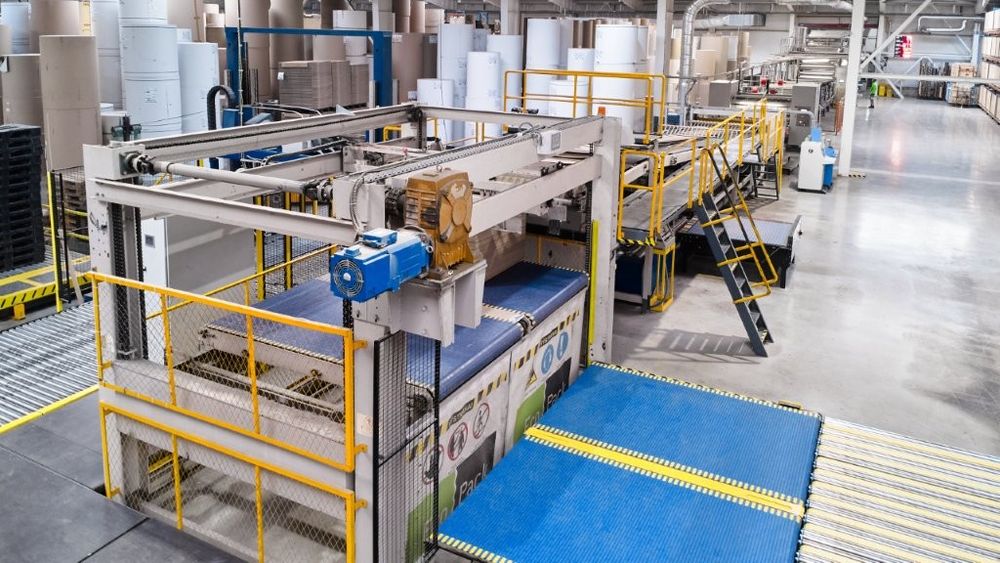

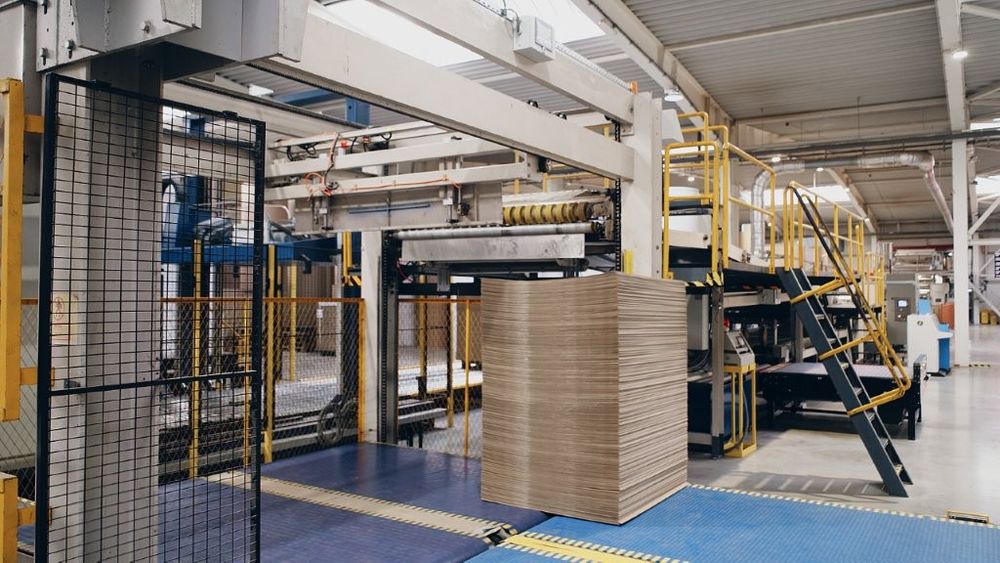

Double Stacker – Qty: 1 set

Sheet Delivery Stacker – Lower layer
Basket Down Stacker / Auto Down Stacker – Upper layer (Type shown as 2000W14)

End-of-Line & Utilities (Included)
Pallet Inserter (semi-automatic) – End of line
Steam Boiler – IVAR (Process steam supply)

The package also includes a pallet inserter and a boiler for generating process steam. Therefore, it is a complete set. The dry end has been dismantled and stored. The wet end remains in place and connected.
