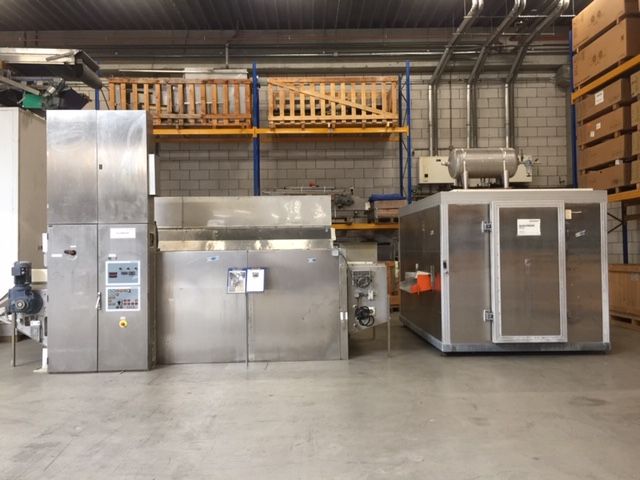

2 CES Twin Spiral Cooler / Freezer 2017 (overhauled)

Cooling capacity: 208 kW (61.17 tons)
Capacity: approx. 1,500 kg/h (depending on product)
Refrigerant: CO2 (R744)
Voltage: 400 V
Absorbed power: 36 kW

Configuration: Twin spiral system
Infeed / outfeed direction: North / South
Infeed / outfeed height: 920 / 920 mm
Belt rotation direction: counter clockwise
Belt type: Ashworth Omni-Grid 100 B24-12-17 stainless steel
Gross belt width: 600 mm
Effective belt width: 550 mm
Maximum product height: 120 mm
Tier height: 160 mm
Number of tiers: 32 (16 per drum)
Effective belt length: approx. 374 m
Drum diameter: 2,720 mm (each drum)
Belt speed: 3 – 7 m/min adjustable

Cooling system: Bitzer CO2 transcritical DX system
Evaporators: Kelvion stainless steel/aluminum units
Evaporators quantity: 6 cooling + 6 blast freezing units
Fans: 6 × 3 kW high pressure ventilators
Defrost system: Hot gas defrost (block and drip tray)

Control system: Siemens S7 / Simatic touchscreen
Control cabinet: stainless steel
Additional system: belt cleaning installation
Optional cold storage evaporators: 36 kW (CO2, -30°C evaporation)

Floor / panels / housing: not included (optional)
Mechanical and electrical inspection after sale
Gearboxes supplied with new oil
Evaporators pressure tested with nitrogen
3 months guarantee on main components
