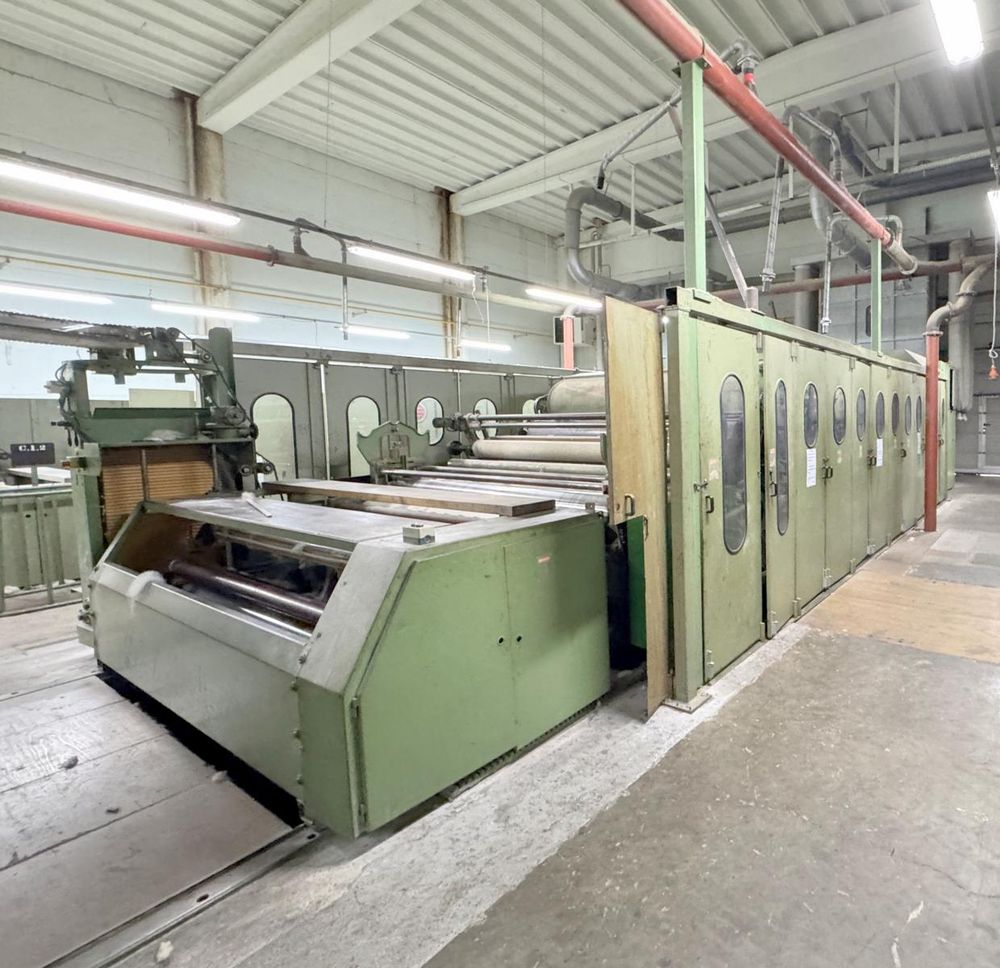

Hdb 3-swift woolen card

Galaxy, card , year 1981, modernized 2000
ww 2.500 mm,160 good ends

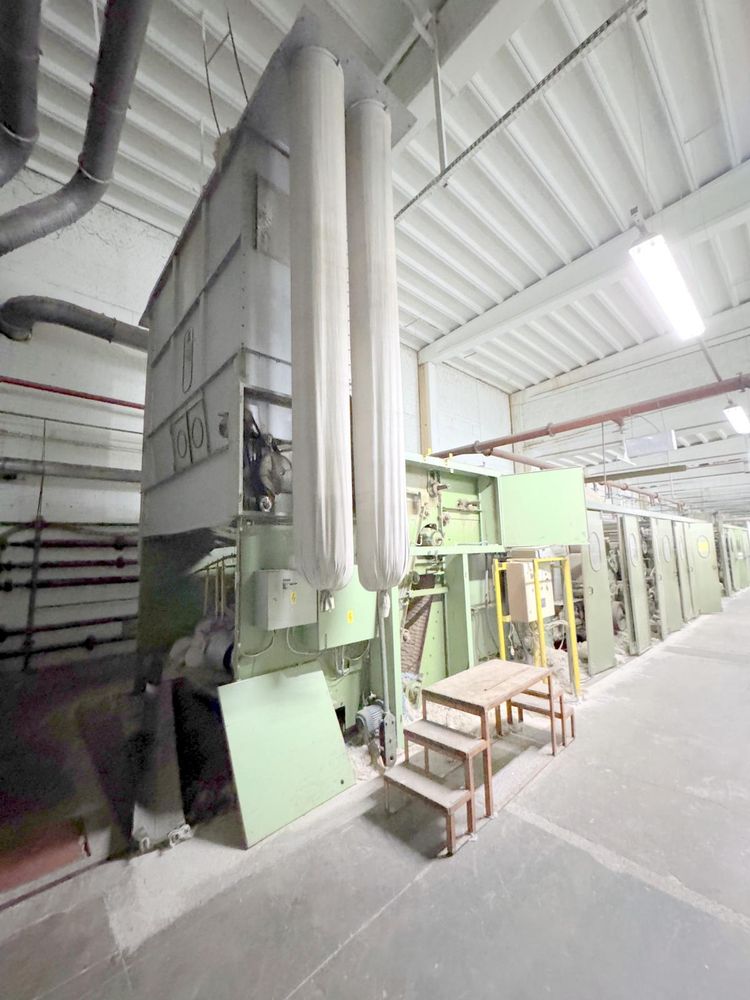

hopper feeder + shut feeder on top with height of 3,00m, linked with second hopper feeder
retrofitted with electronic scale Microweight, which ensures that the hopper feeder card operates
with a tolerance of +- 1%!

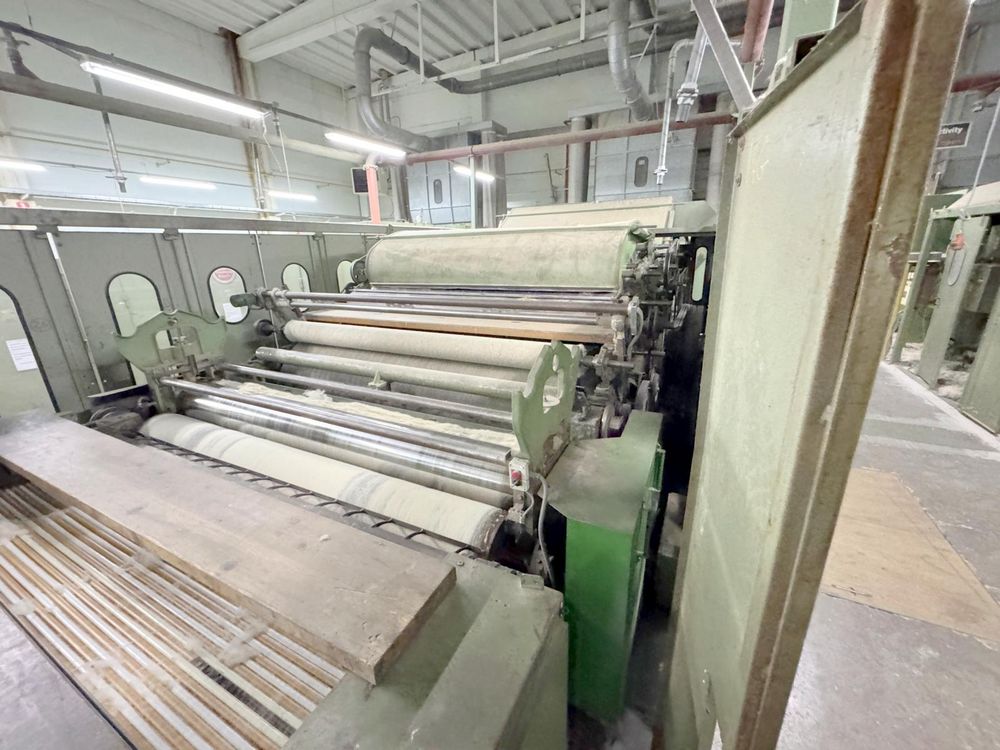

breast section with main cylinder dia.1.250 mm with 4 pairs worker and stripper, rigid wires

first swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes Peralta, wideband layer

second swift:
main cylinder dia.1.250 mm with 5 pairs worker and stripper, doffer 1.050 mm, fancy roller, flexible clothes transfer roller

third swift:
main cylinder dia.1.500 mm with 5 pairs worker and stripper, doffer 1.250 mm, fancy roller, flexible clothes
high speed flying comb, delivery speed until 40m/min
double apron condenser, 160 good ends

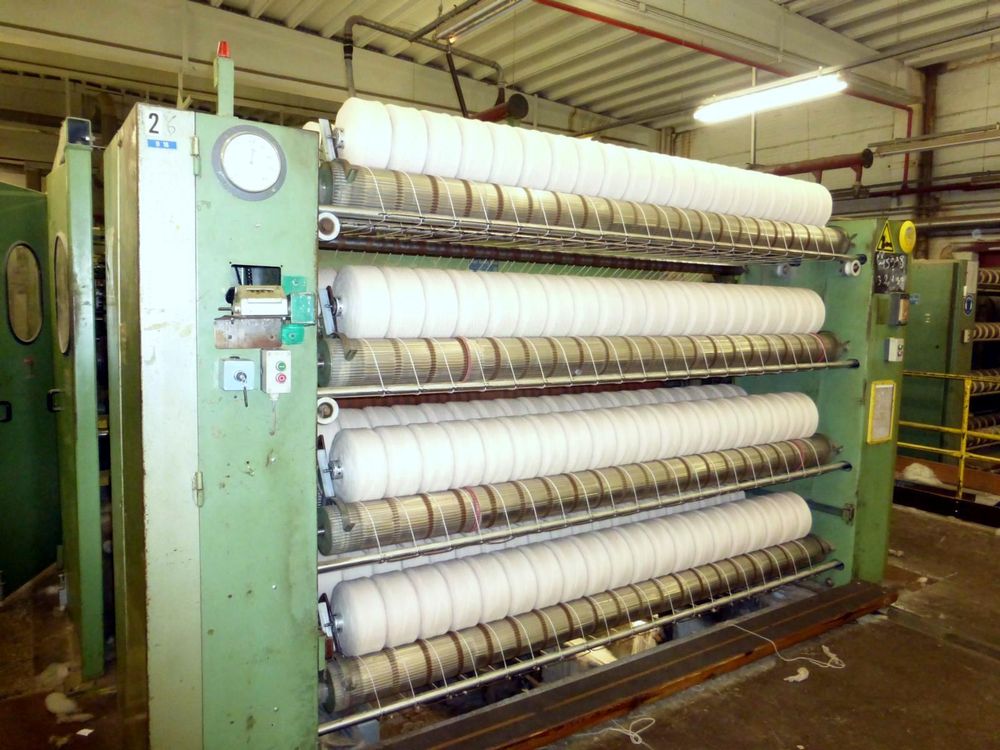

double winder frame with 8 bobbins each 20 ends

Machine is in good running condition, stopped 30.8.2025.
All main cylinders and doffers are equipped with a pneumatic cleaning system.
