1/1
2 JJZ-CP
Ref :
2729658-15-MT
Condition :
Used
Manufacturer :
-
Model :
JJZ-CP
Year(s) :
2019
Quantity :
2
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

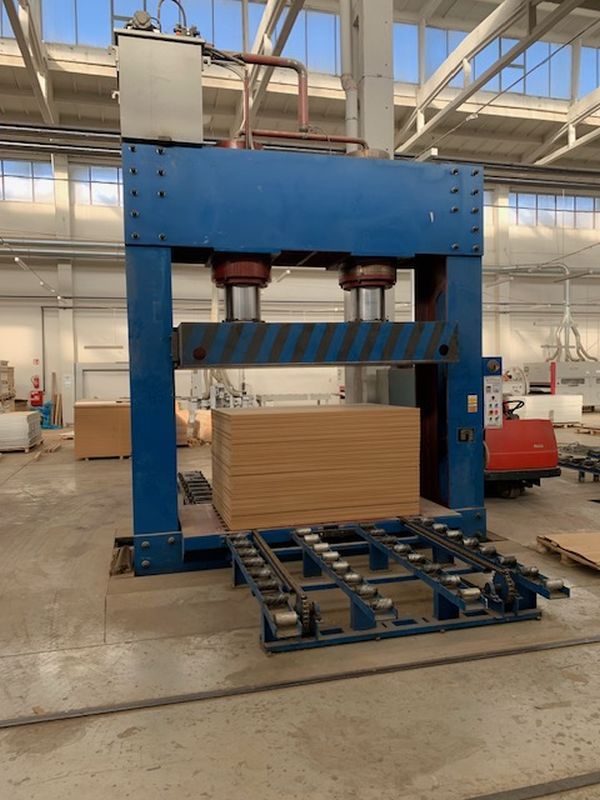

Hydraulic carcass press LINYI JIANZHONG WOOD MACIHNERY
The JJZ-CP press is suitable for the production of plywood, doors, and MDF panel joints.
The glued elements are fed and removed automatically via driven roller conveyors.
Technical data:
- Max. Pressure 500 t (adjustable)
- Max. Filling height 1300 mm
- Min. filling height 900 mm
- Max. Filling size 1300 x 2500 mm
- Press dimensions 3600 x 1370 x 4500 mm
- Press position approx. 500 mm below floor level
- Feeding table 2000 x 1960 mm
- Pick-up table 2350 x 2500 mm
- Max. Power 13.2 kW
- Weight 12000 kg
- CE marking
- Capacity: 6 batches per hour
There are 2 carcase presses available for sale.
