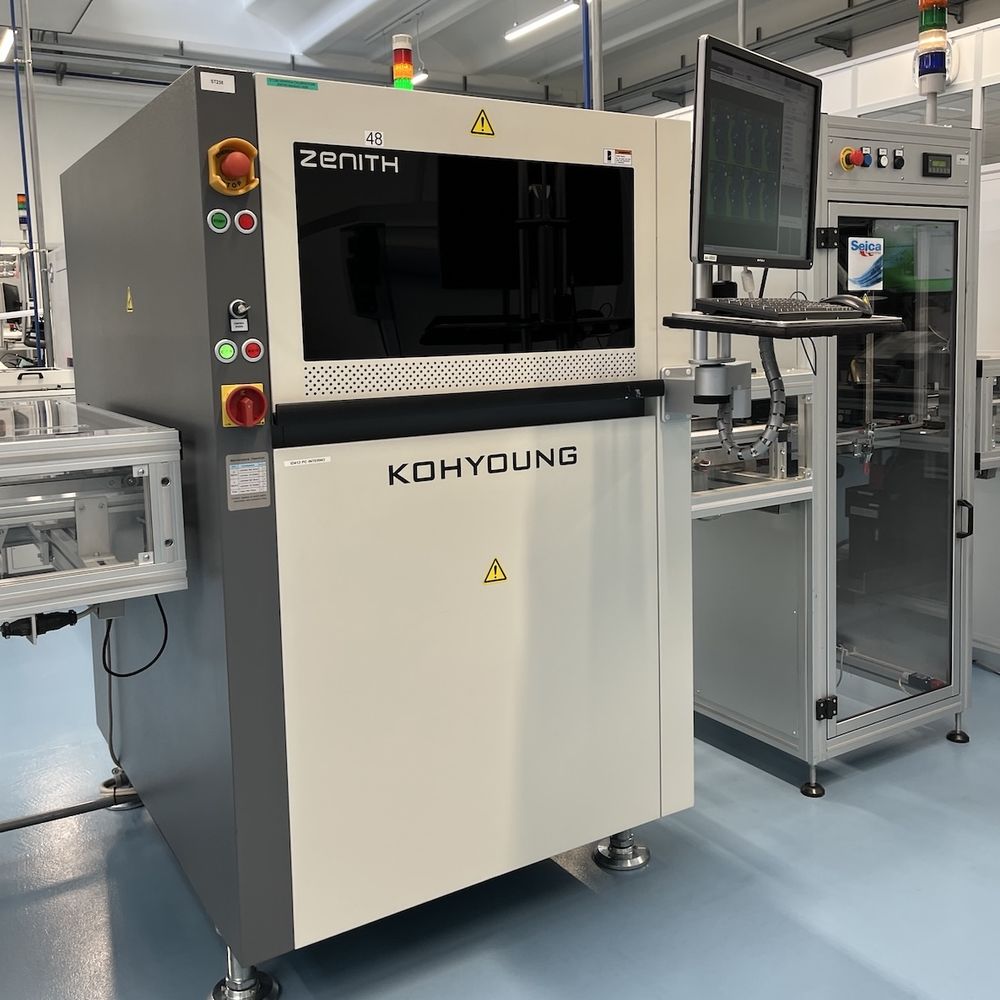

KOH YOUNG ZENITH FULL 3D 8 way AOI 3D AOI measurement and monitoring inspection with 100% PCB coverage and 8 anti-shadow projectors.
Koh Young 3D In-line Automated Optical Inspection AOI System
Model Zenith L size
Program Generation Software:
Supported Input Fortams:
(Basic) PCB Gerber, Placement File, Mounter Job file, FabMaster, FabMaster Pin CAD file
(Optional) ODB++, Allegro, GenCAD, Mentor Neutral
Standard DELL PC
Windows 7 64 Bit
Inspection Software with GUI
Optical Mesurement Unit:
Projection unit
8 Way projection
4MPix Camera, 20um pixel resolution
Inspection speed 24 cm2/sec, 0,65sec/FOV
SPC Analysis: SPC SW Package
Max PCB size: 510 x 510 mm
PCB Thickness: 0.4-5mm, max 5 kg
Top/Bottom Side Clearance: 50 mm
Supplies: 200-240V, 4-5kgf/cm2
Reviw Station AOI
Including DELL T1650 PC
23’’Touch Screen Monitor, Kaypad
Including DB manager
BCR Bar Code Reader AOI via telecamera
In Line Bar Code Reader Bottom
Off Line Programming (1)
