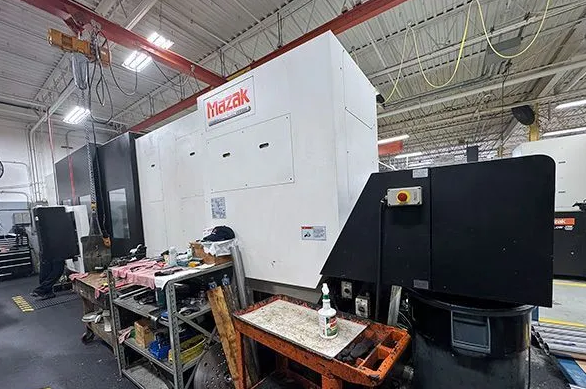

2 Mazak MATRIX NEXUS 1,600 RPM CYBERTECH TURN 4500 2 Axis

X axis travel: 21.25"
Z axis travel: 123.23"
X axis rapid: 945 IPM
Z axis rapid: 1181 IPM
X axis thrust force (continuous/180%): 5,842 / 11,684 lbs
Z axis thrust force (continuous/180%): 5,181 / 9,568 lbs
Control: MATRIX NEXUS

EIA/ISO code input function
Background tool path check
Automatic tool eye
EIA spiral & EIA 3D comp
Rotation with geometric & scaling ext data I/O
Thread & inverse time
Auto TLM with polar coordinates input
Comparison stop & G54.1 600 variable offsets
EIA helical tap cycle & EIA pattern cycle
Tilted work plane
Bar capacity: 4.62"
Maximum swing diameter: 33.8"
Swing over carriage: 27.5"
Swing over carriage with steady rest: 20.87"
Maximum cutting diameter: 31.9"
Maximum cutting length: 120"
Spindle nose: A1-15
Spindle bore: 7.28"
Spindle speed: 1,600 RPM
Spindle horsepower (continuous/30 min): 40 / 50 HP (AC)
Spindle torque (30 min): 3,320 ft-lbs
Turret type: Drum
Number of tools: 12
Tool type: Bolt on
Turning & facing tool size: 1.25" x 1.25" x 6"
Maximum boring bar diameter: 2"
Turret index time: 0.4 sec / 1 step
Chuck: 21" KITAGAWA B-21A1515
Chuck cylinder: Kitagawa F2511HS15A
Tailstock: automatic
Tailstock spindle center: MT#5
Maximum tailstock spindle thrust: 5,624 lbs
Tailstock body travel: 120"
Tailstock body rapid travel: 236 IPM
Chip conveyor
Oil chiller
High pressure pump
Remote jog handle
Long boring bar stocker
SMW AutoBlock hydraulic steady rest
Floor space: 98" x 283.4"
Machine height: 110.3"
Power requirement: 76.38 KVA
Air requirement: 71 PSI / 3.5 CFM
Machine weight: 43,900 lbs
