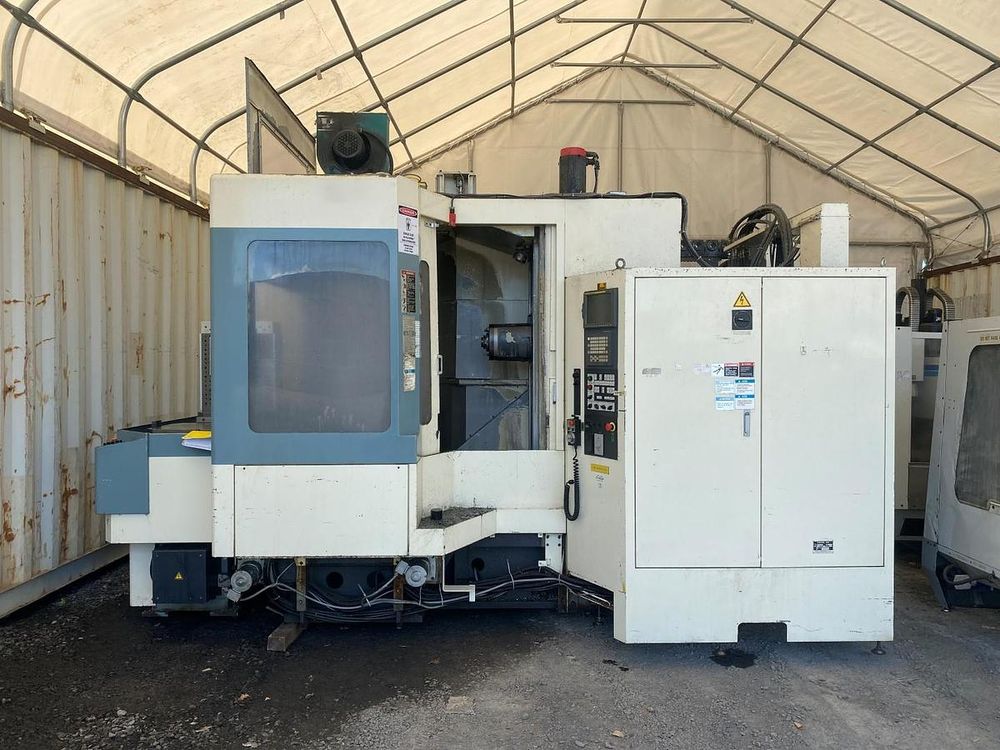

2 Niigata HN-50C 4 Axis

X Axis Travel 800 mm (31.5 in)
Y Axis Travel 716 mm (28.2 in)
Z Axis Travel 580 mm (22.8 in)
Number of Axis 4
Control Fanuc 16i-M
Table Size 500 mm pallet (19.7 in)
Max Table Load 700 kg (1540 lbs)
Pallet Changer Twin pallet shuttle system
Spindle Taper CAT 50
Spindle Power 25 HP, 230 V AC
Max Spindle Speed 5000 RPM (2-speed gear head)
Spindle Torque Low gear: ~650 N·m, High gear: ~210 N·m
ATC 40 tools
Cutting Feed Rate 1–10,000 mm/min (0.04–394 in/min)
Rapid Traverse X/Y/Z 24 m/min (945 in/min) approx.
Through Spindle Coolant
Probe
Chip Conveyor
All Maintenance Records
Machine Weight ≈ 13,000 kg (28,600 lbs)
