2 Webtex Pad-Thermal Dyelines

For dyeing Polyester Ribbon, w/200 mm working width

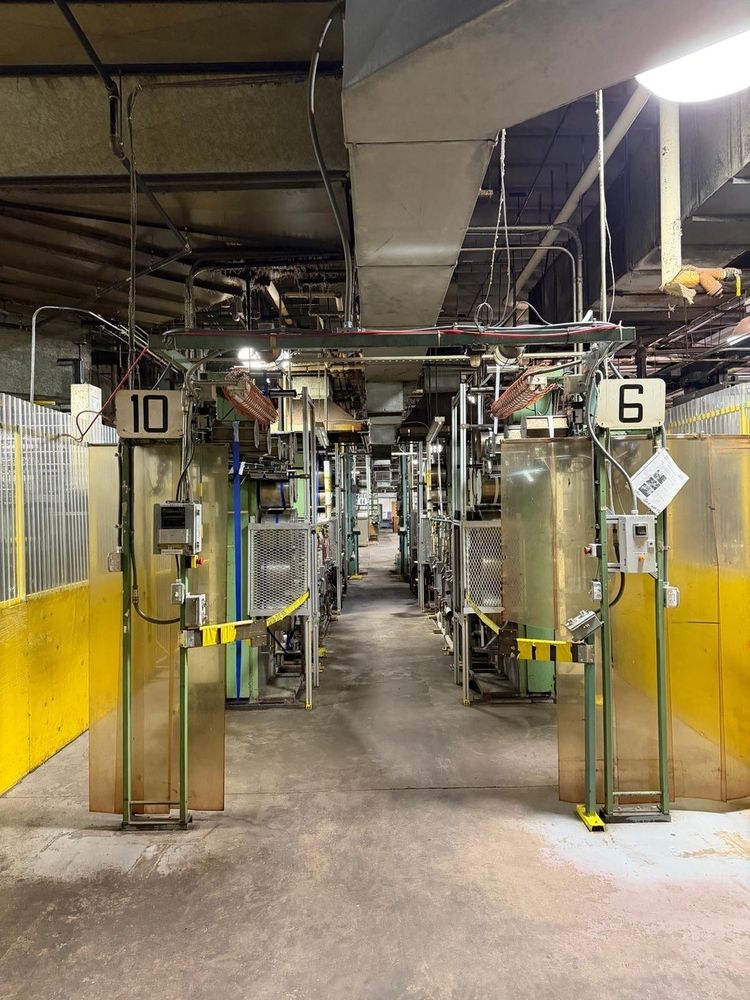

mc# 6 was built in 2010; and mc# 8 was built in 2012

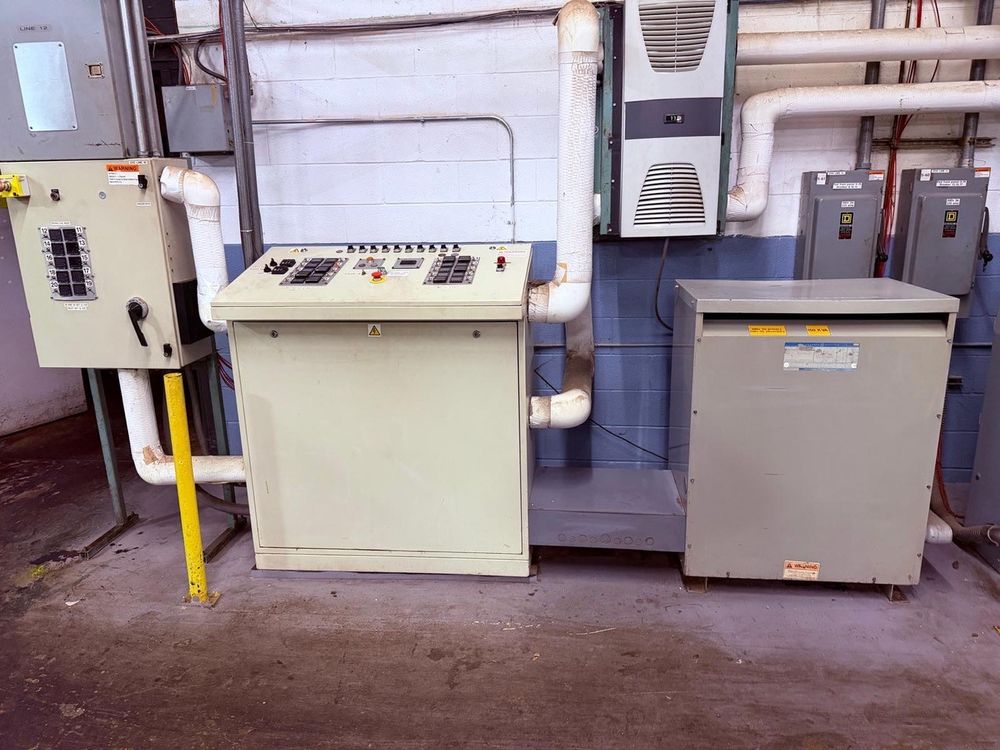

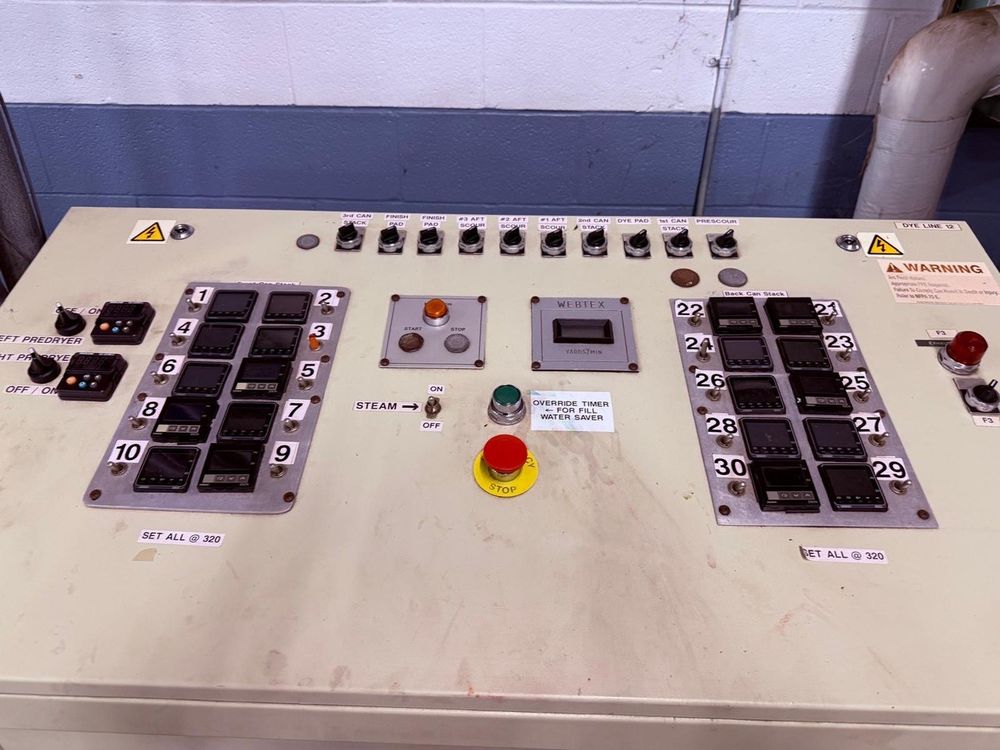

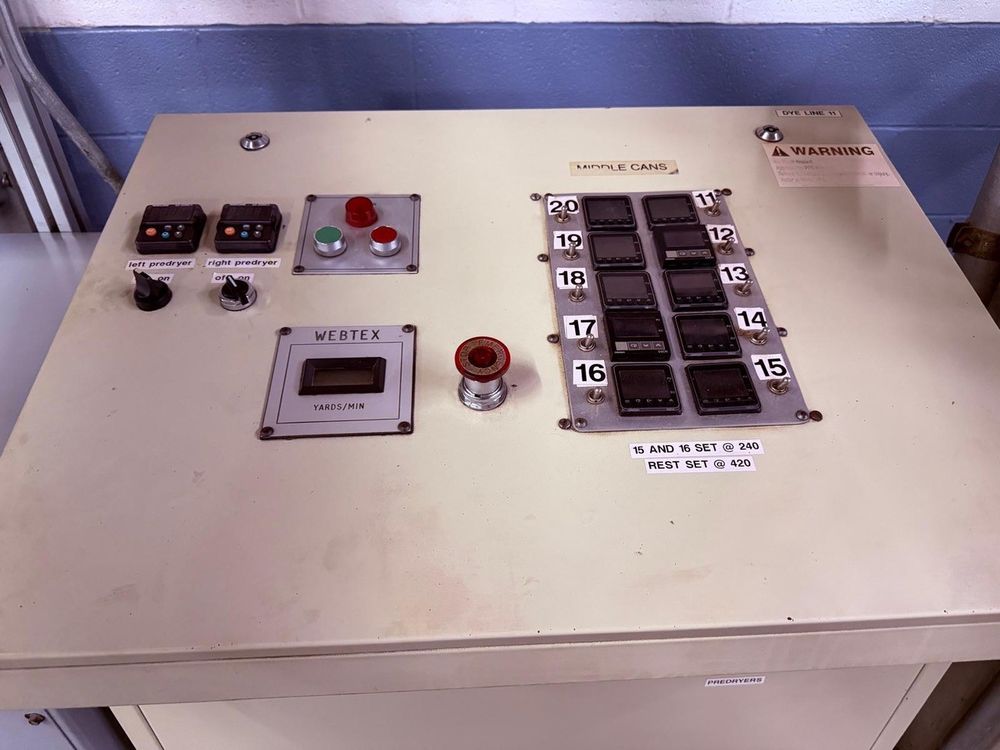

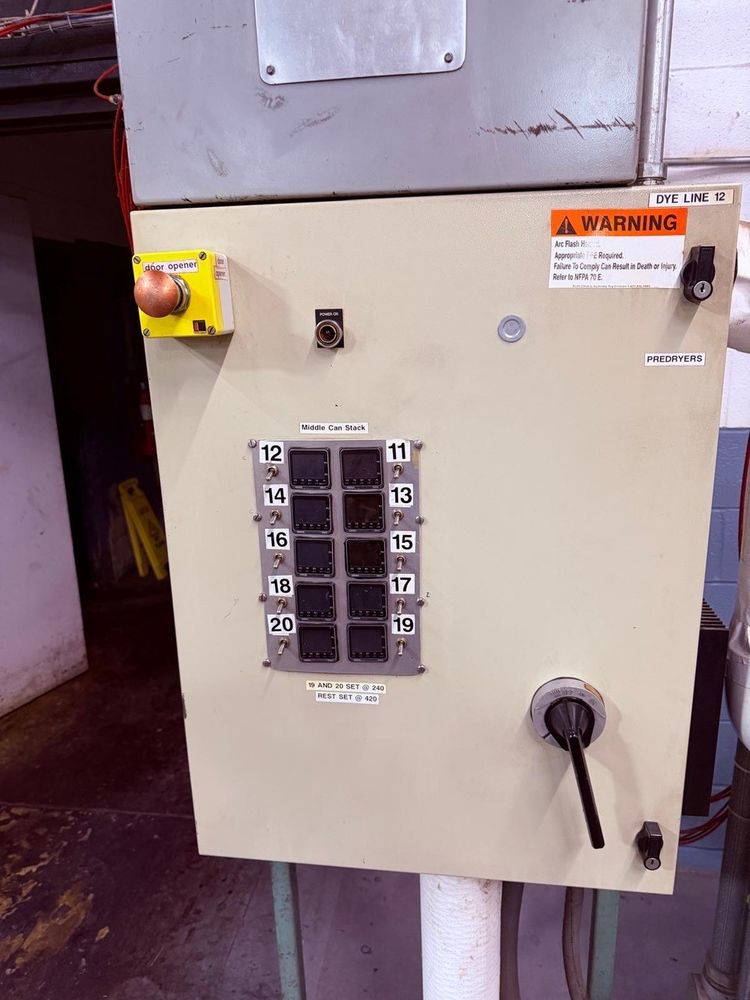

• Main Power Panel, Operational Control Panel, plus Drying Cylinder temperature control Panel

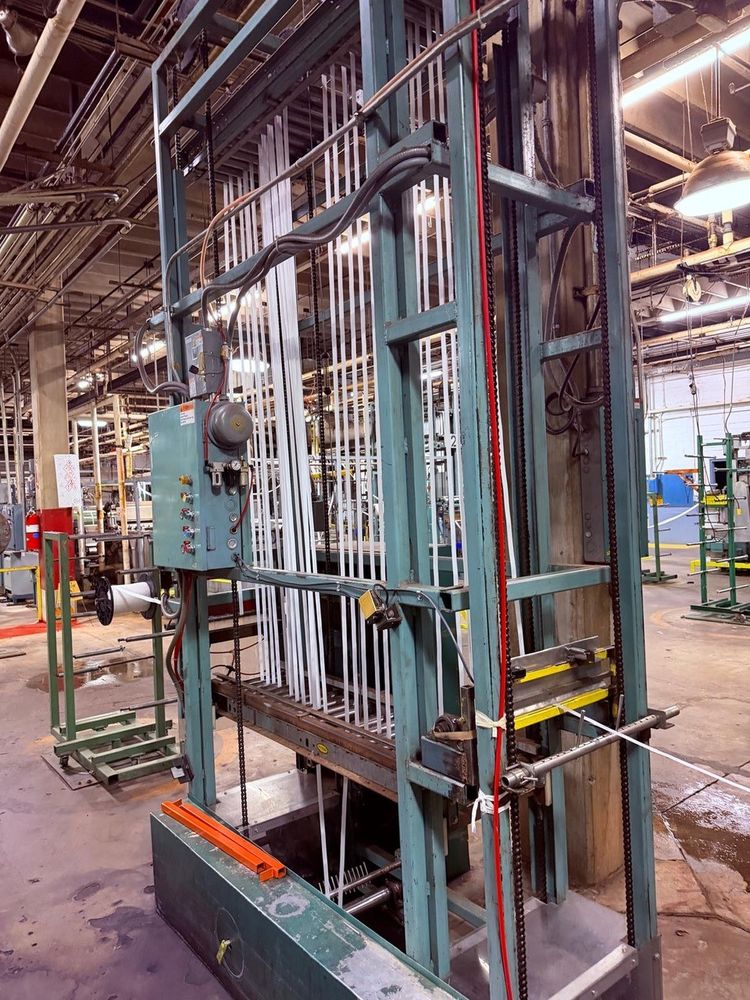

• 6-end Spool let-off Unit w/ Accumulator w/static eliminators.

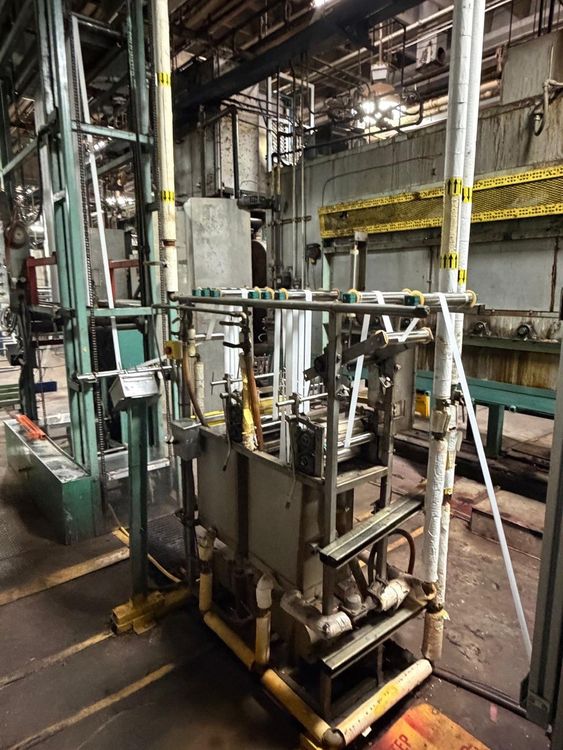

• 2 heated scouring tanks, w/2-roll pneumatic nip-rollers, w/ tension compensators.

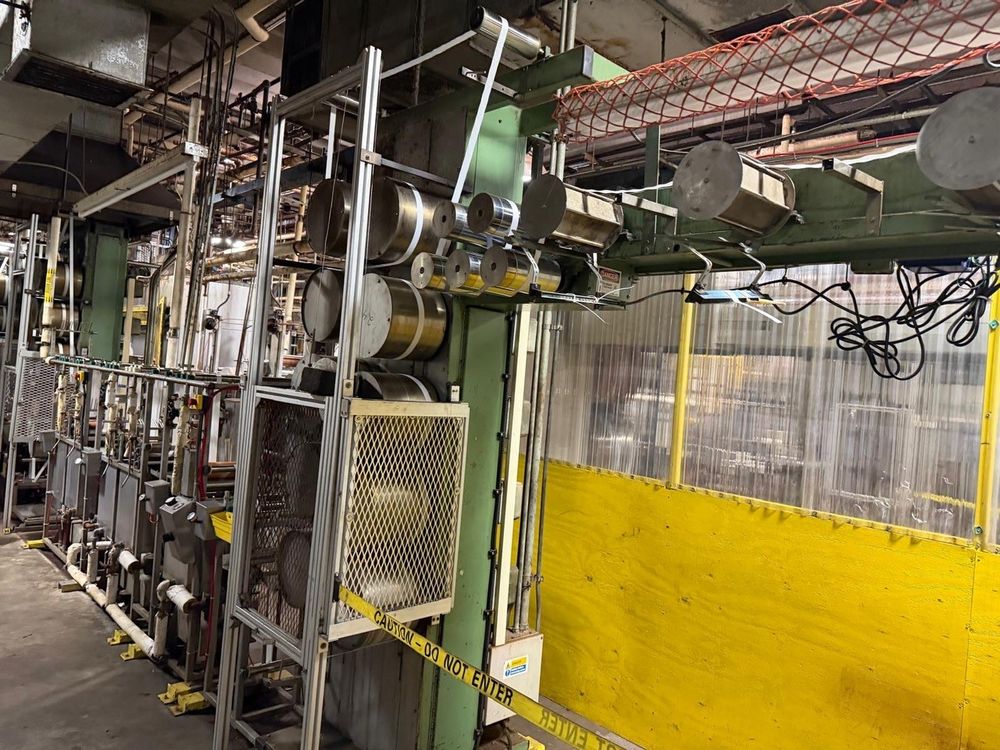

• 1 x 10-Cylinder Drying Stack, electric, with tension control.
• Pre-tension control with compensator for auto-speed adjustment.

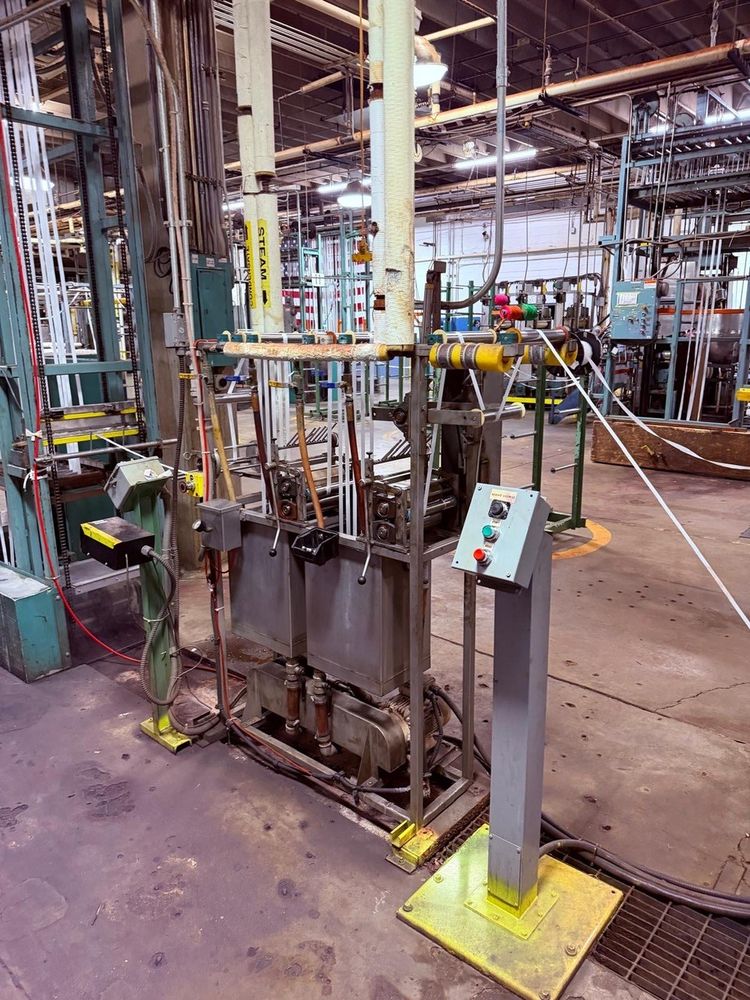

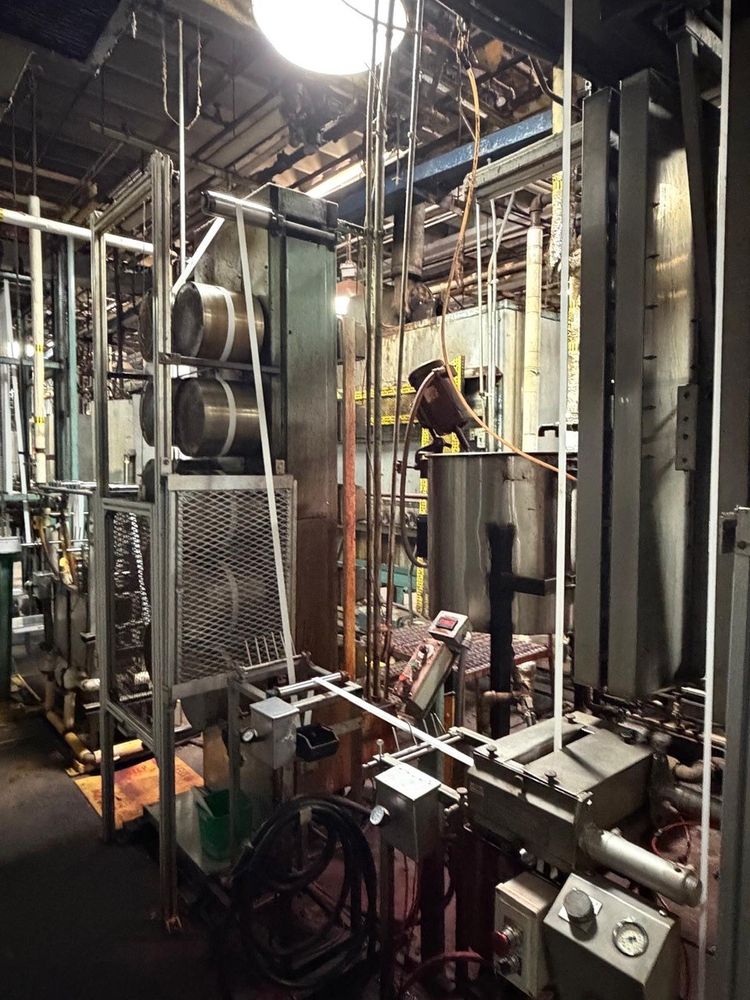

• 1 heated Dye-tank w/horizontal 2 Roll nip w/compensator and 1 Dye Kettle, auto-feed, heated, w/agitator.
• 1 Infrared Pre-dryer, plus 1 10-cylonder Drying Stack (electric) w/tension control

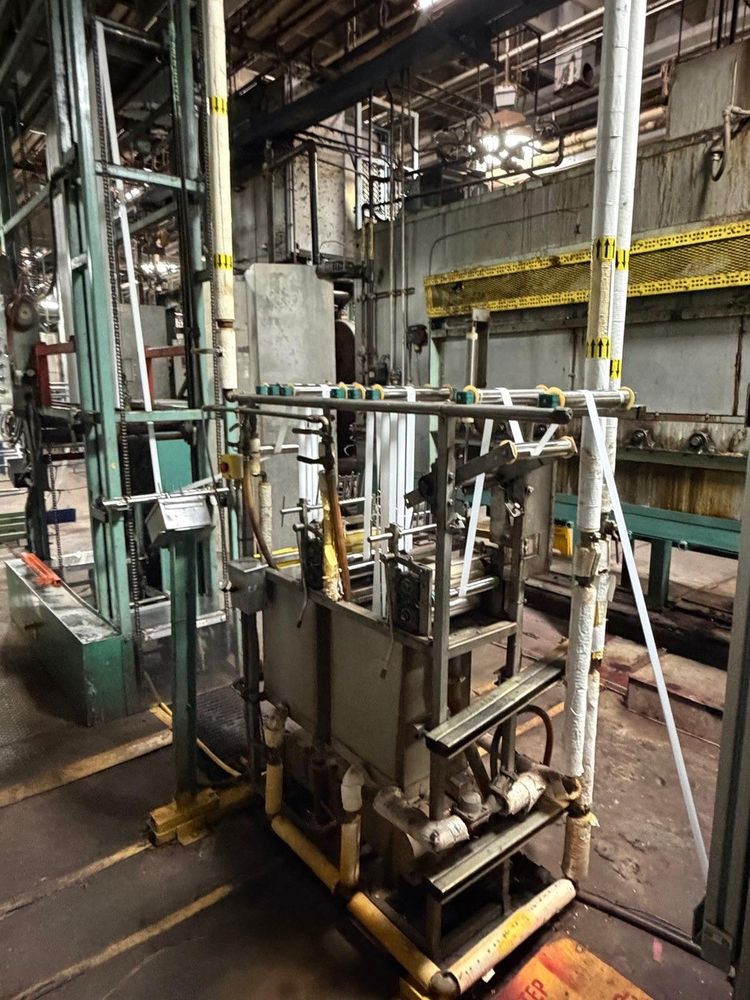

• 3 x 2 Wash-tanks heated, each w/tension compensators & w/ 2 pneumatic nip-rollers.
• 1 10-Cylinder, high temperature (electrically heated) Drying Stack, w/pneumatic tension control.

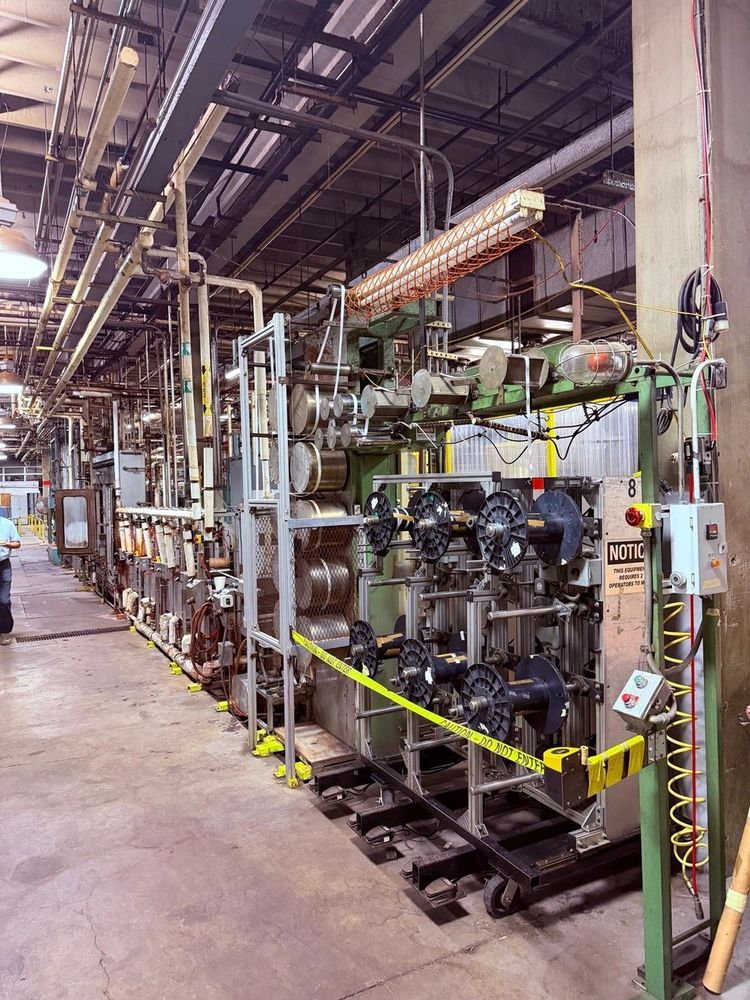

• 6 Roll take-away Unit with 5-roll pull-unit, plus 3 roll let-off, each w/static eliminators.

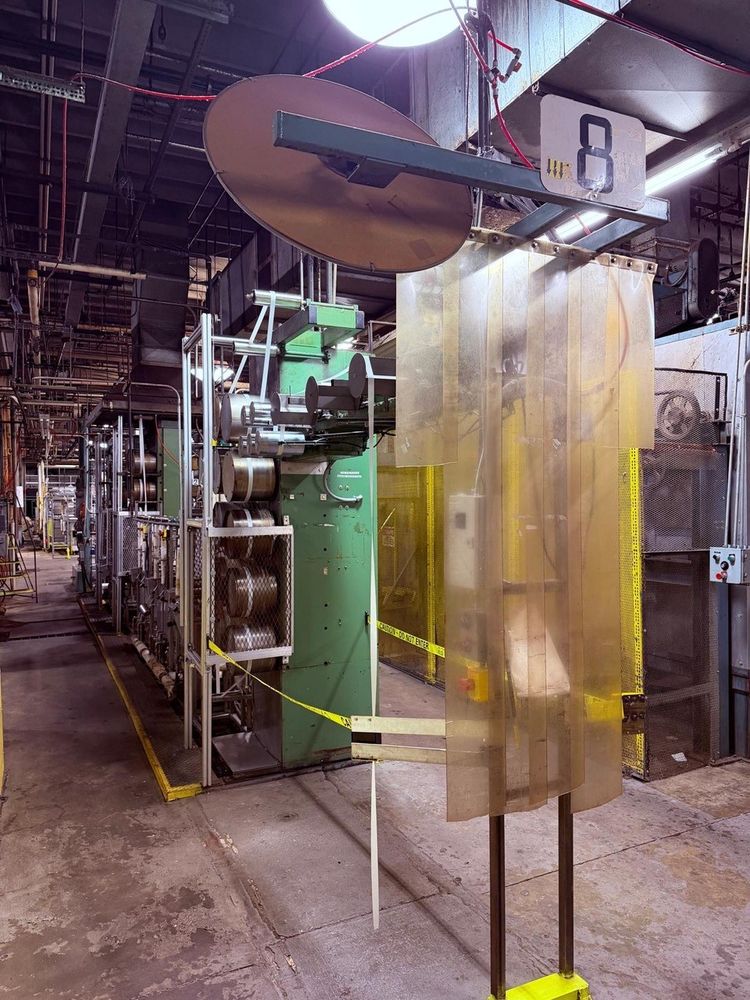

Note : m/c # 8 has a regular Take-away, plus a 6-position auto-spool take-up unit.

Both machines were stoped for prduction one month ago.
