2 Picanol Gammax-6-R 300 Cm Staubli Dobby 2861
EUROPE (Western and Northern)
working width 3000mm
Free Flight, 6 colours
electronic STAUBLI dobby 2861 up to max 24 shafts, 14 levers installed
each with :
6 weft colours QS,
4 weft accumulators PICANOL Chrono X2
weft feeder support, bobbin stand

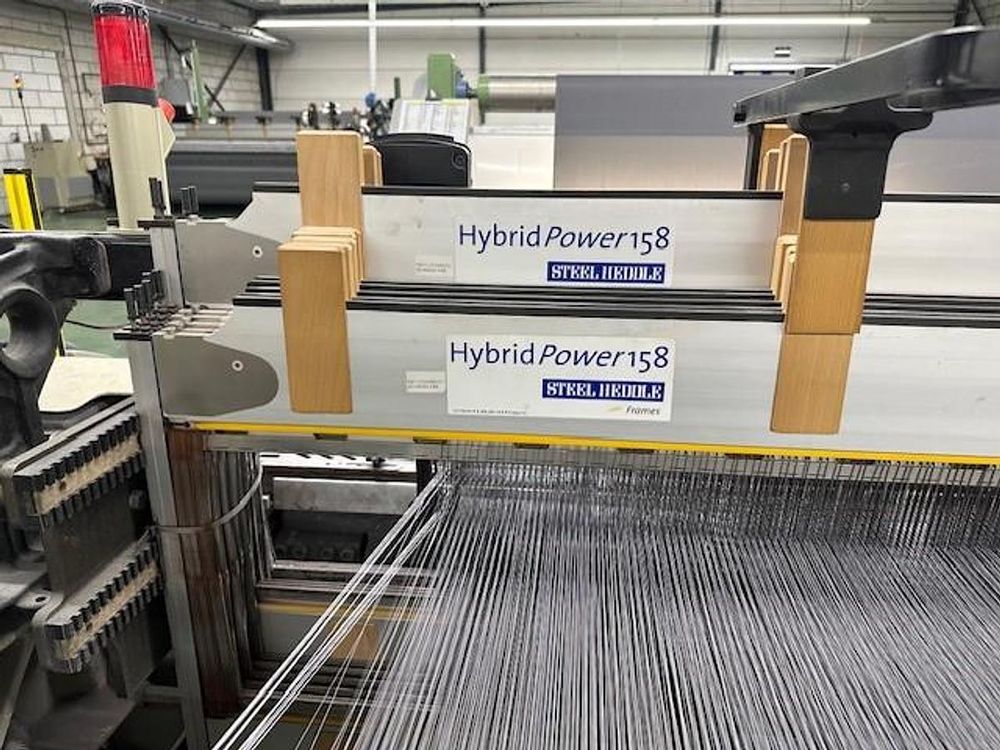

12 heald frames Steel Heddle DRC3 Hybrid Power 158
13”, 5 warp stop motion bars GROB
healds & droppers as on loom
warp beam position 12
double warp tension roll diameter 140mm
with spring RHS & LHS, double pressure roll
mechanical weft cutter, electrical waste cutter RHS & LHS
waste-system, waste bin, suction motor RHS
touch screen blue, cloth roller drive with 1 cloth roller
1 ½ warp beam diameter 800mm, speed 430 RPM
