Sabroe 2 x SMC 106L SPLIT
Industrial Cooled-Water Chiller 796 kW

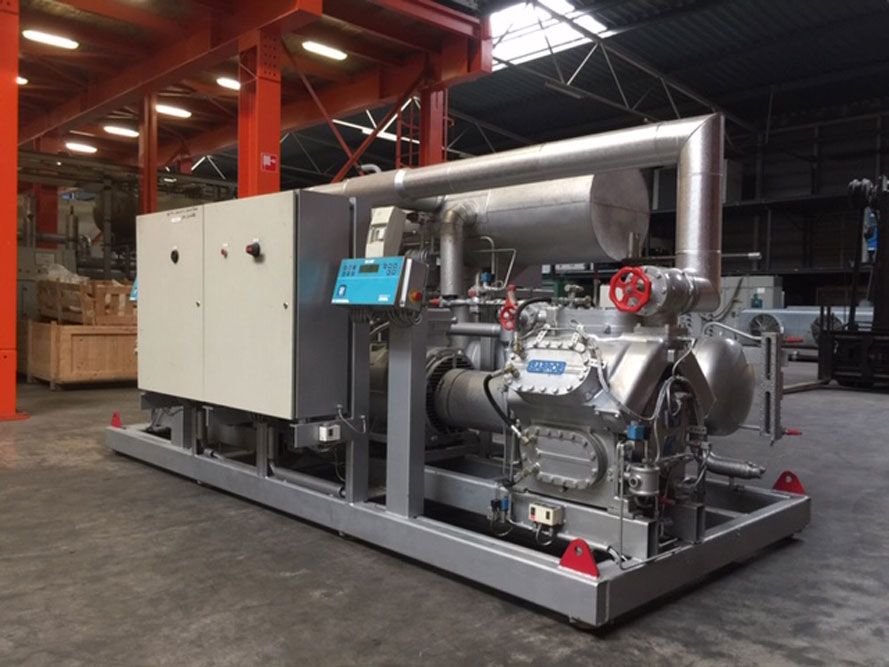

Used Sabroe industrial water chiller (split model, air-cooled/evaporating condenser separate). This in very well maintained condition industrial water chiller is equipped with the following main components:

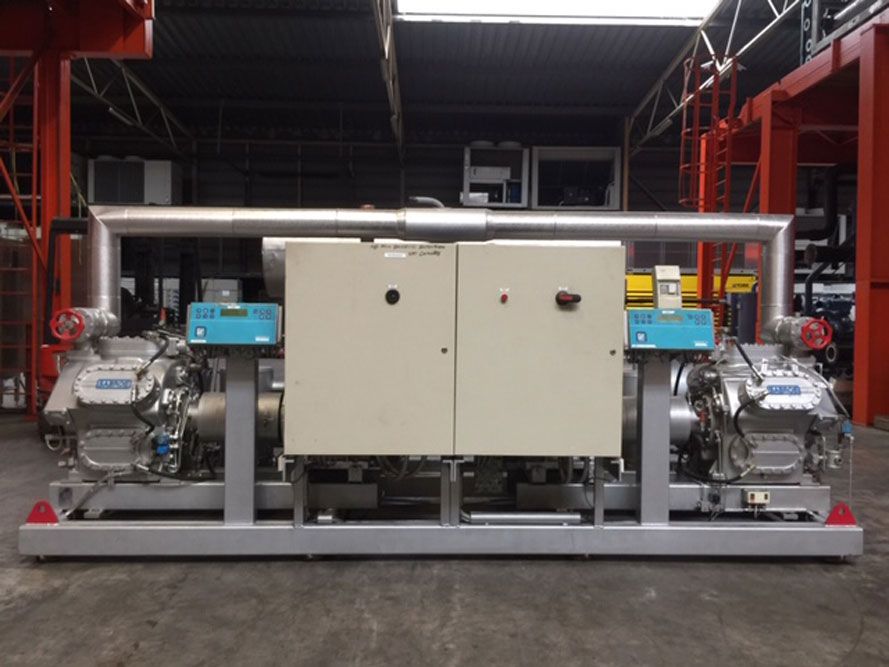

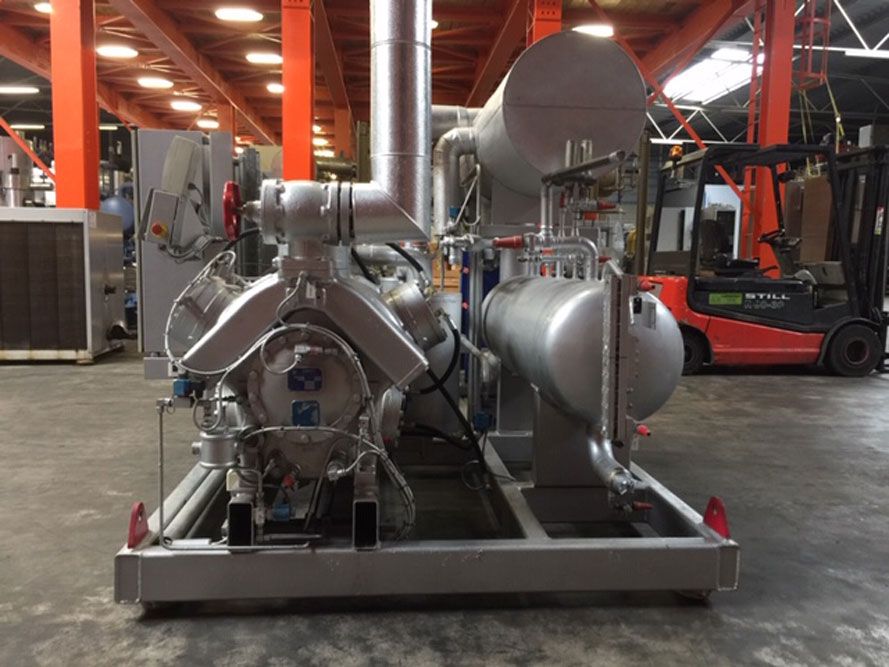

on frame built 2 pieces direct driven Sabroe SMC 106L piston compressors with each of Schorch 75kW E-motors (suitable for 460V/60Hz)
Oil separator
Water-cooled head cooling for the compressors
Retech high pressure liquid tank of 325 liter

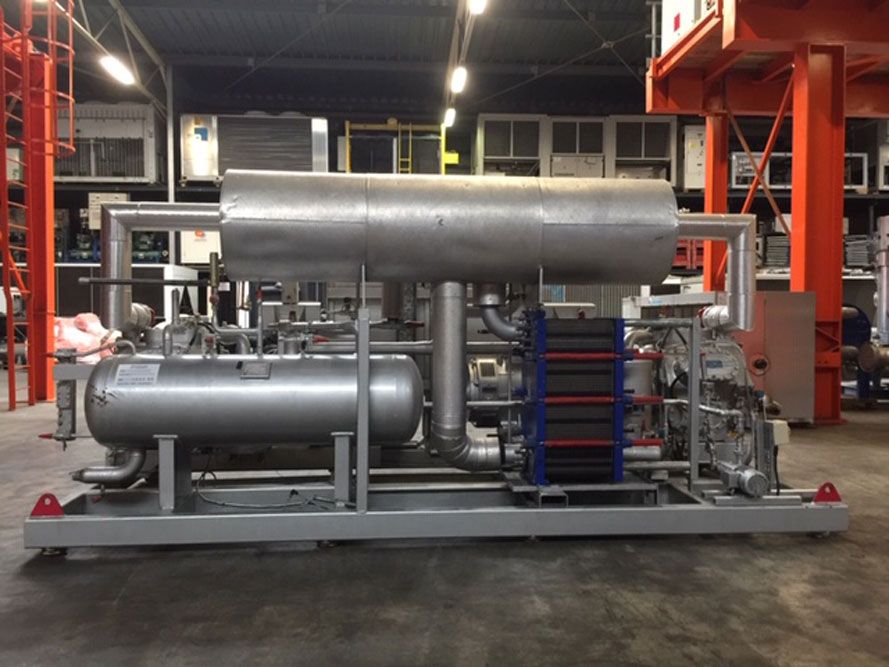

Alva-Laval M10-EWFGR plate cooler coupled to a Retech separator of 416 liter for natural ammonia circulation
2 pieces Unisab II controllers for the compressors

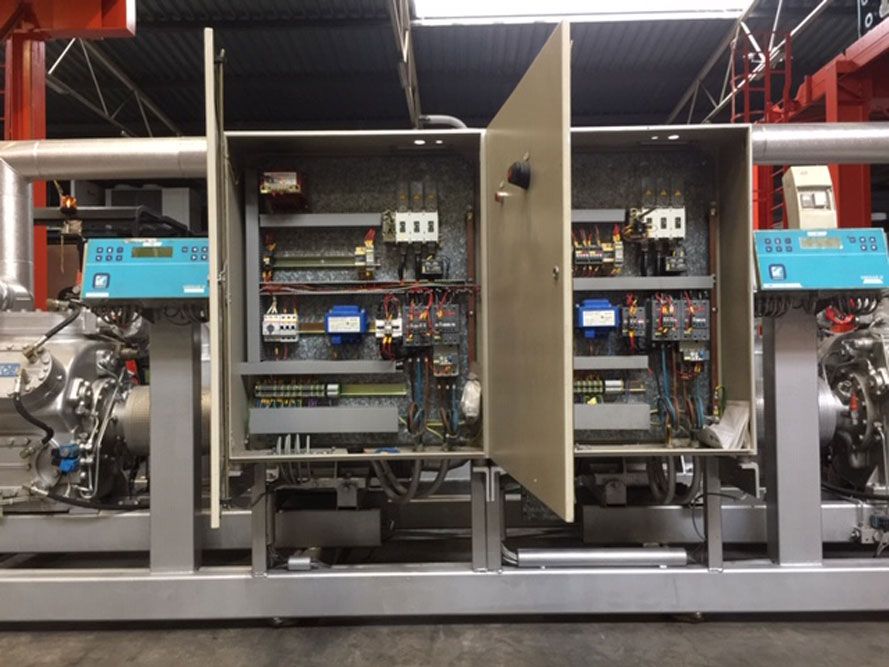

Control cabinet

The mentioned cooling capacity is at a water/glycol outlet temperature of +6°C.
Cooling capacity at water/glycol outlet temperature of +6°C on 60Hz is 955kW.
Cooling capacity at a water/glycol outlet temperature of -5°C is approx.. 500kW.

Cooling capacity:
796 kW/234 tons
Number of cooling circuits:
1
Type of refrigerant:
R717/Ammonia
Voltage:
50/60Hz / 400/460 V
Absorbed power:
150 kW
Year of Manufacture:
1998
Dimensions (LxWxH):
431 x 227 x 203 cm
Weight (kg):
7.200 kg
