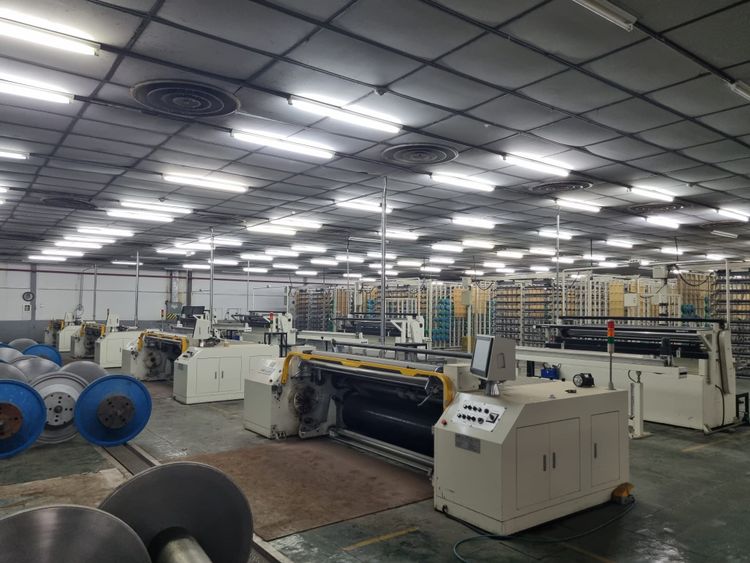

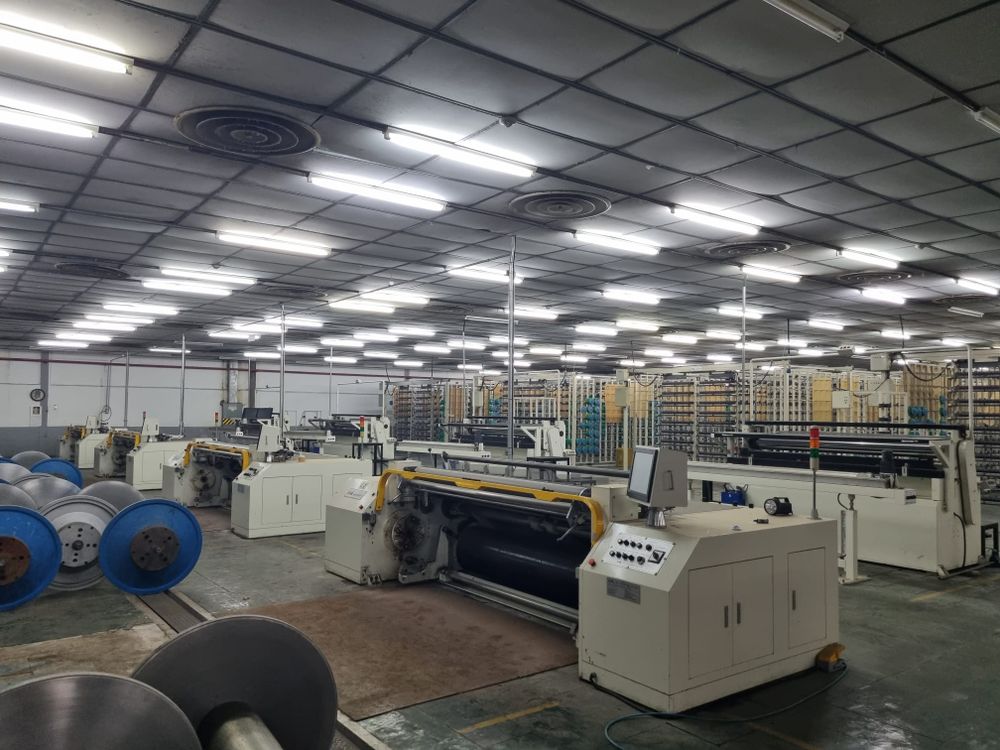

Ukil EXPERT-1200 2100mm

UKIL (KOREA) MADE, YOM. 2011
2 DIRECT WARPER with 1 ASSEMBLY BEAMING M/C

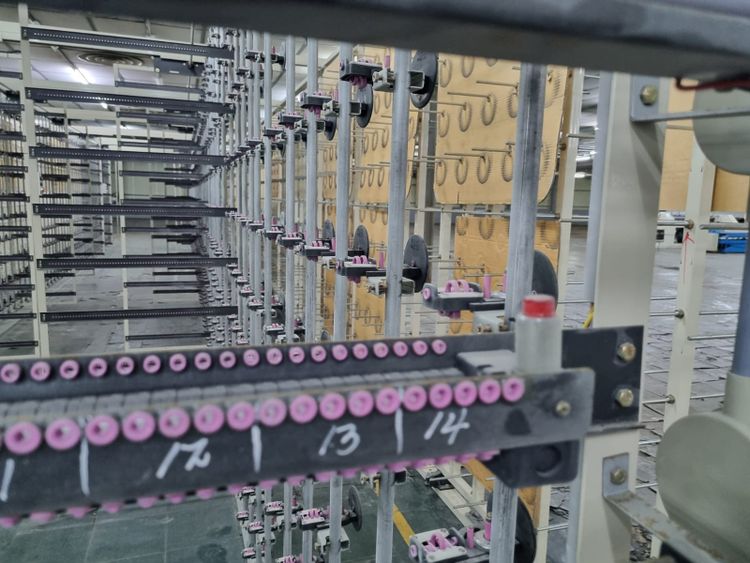

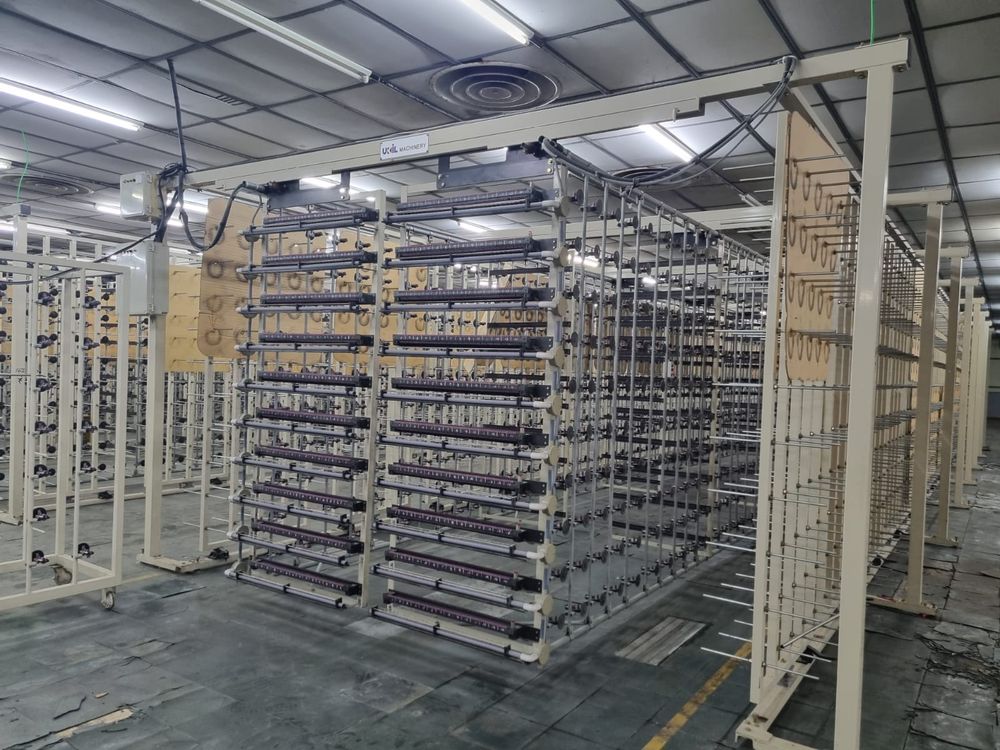

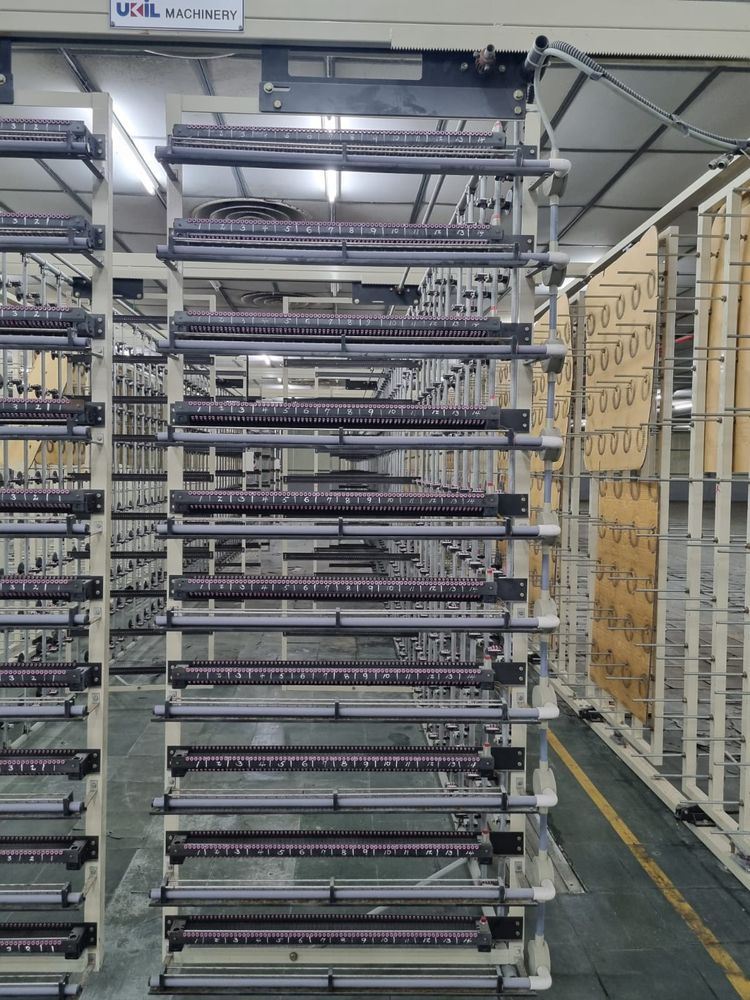

2 SETS OF CREEL;
Pitch: package dia. 230mm
No. of step : 10 steps inline arrangement
Type : H type gate (swivel)
Constructed by heavy duty tublar steel
RT-C Type: Post/disc pre-tensioner with Tension range: 5-50g/10-100g/20-150g
Yarn Guides : 99% Alumina ceramic
Brocken end detection : Electronic motion sensors
Static ellmination : At exit of creel section

2 SETS of “S” ROLL STAND + OVEROILER
The first roll is the grip roll, the second roll is adjustable to increase or decrease the
wrap angle of the rolls. Both rolls have a matt finish to help in gripping the yarn.
Once the yarn leaves the s-rolls, it passes through a series of combs, laser yarn
inspector, stabilizing rods and static eliminator bar. The assembly uses a magnetic
particle brake (optional AC motor with load cell control) to precisely maintain the
proper setpoint tension. Optional overoiler and accumulator are available when
desired.

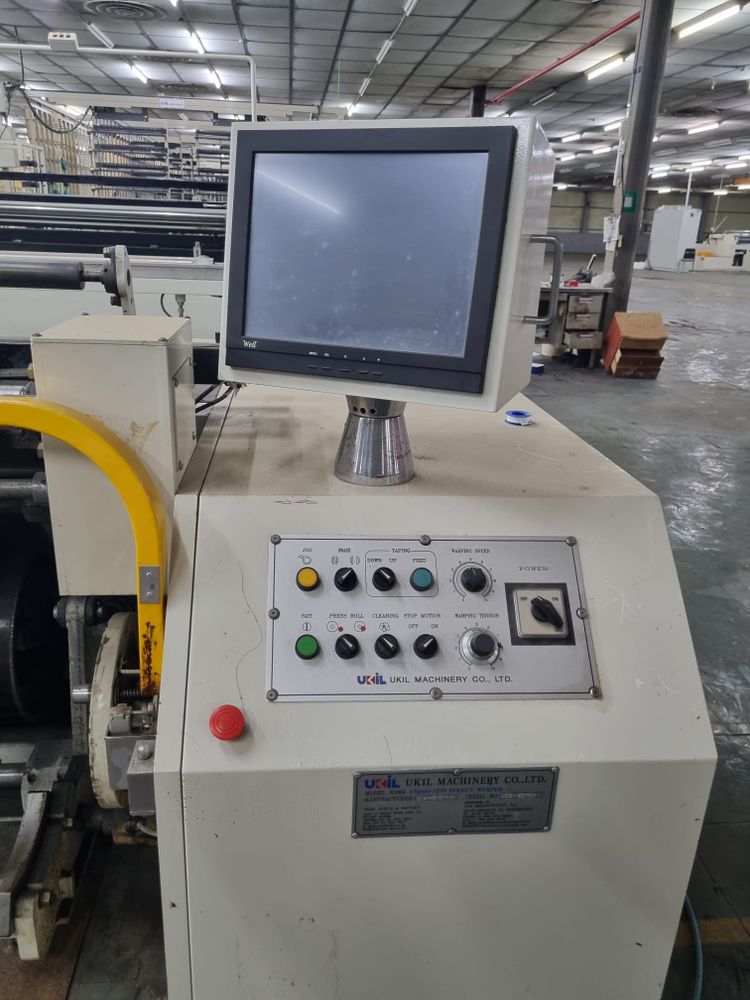

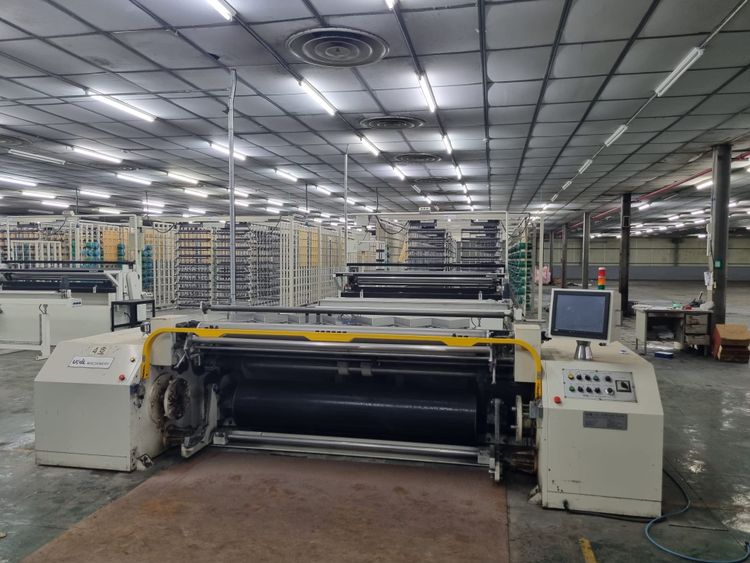

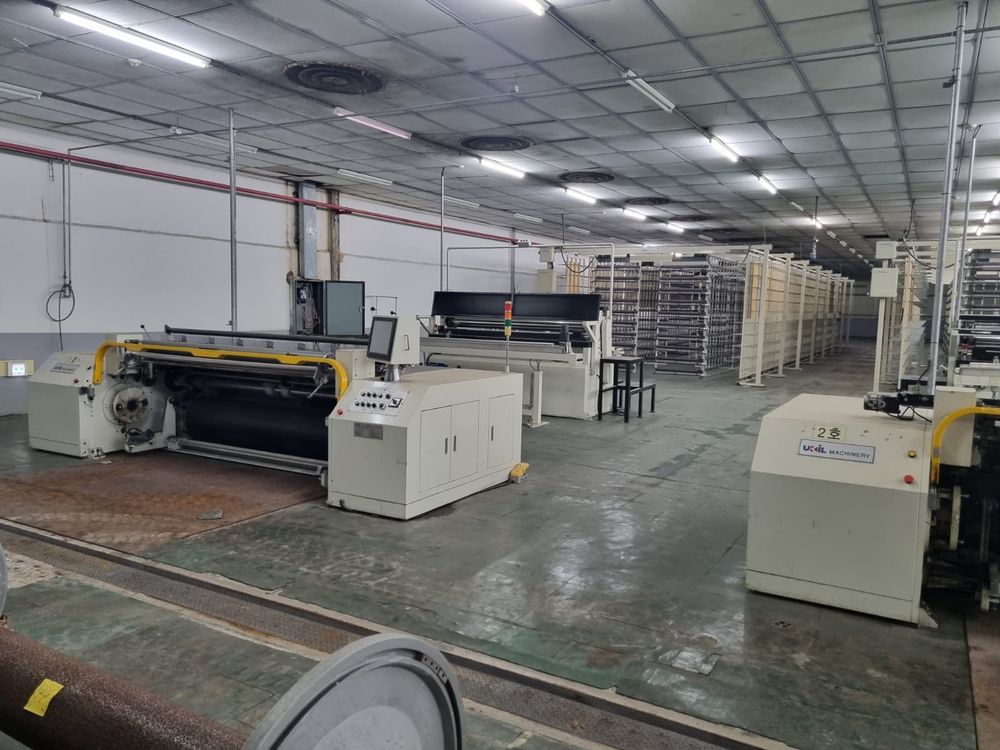

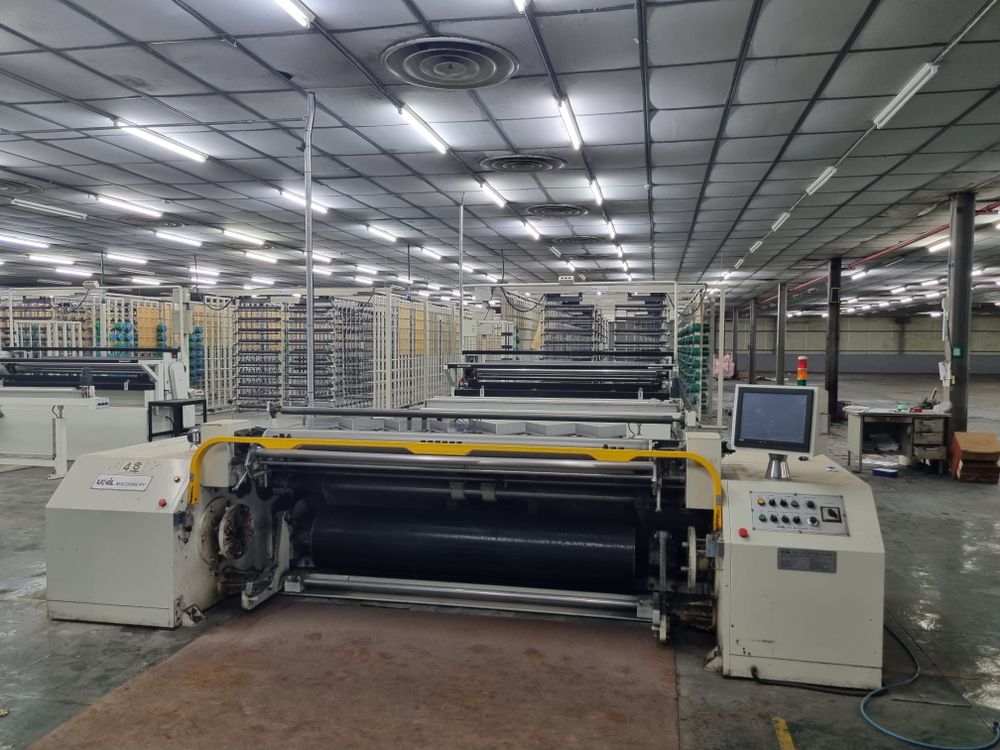

2 SETS of WARPER HEAD
Beam Flange Dia. : 800mm
Sheet width : 2000 mm
Running Speed : 1200rpm m/min
Winding tension : 40 Kg
Drive Motor : AC15 kW motor
Beam brake : Dual air/hydraulic brakes (each side)
BeamDoffing : Automatic operation (pneumatic)
Come : Zig-zag come with motorized adjustment
Yarn untangling device : Pneumatically operated
Press Roller : FRP coated roller with kickback function
No.of warp beam : 40 pcs (Aluminum) Flange Dia. 800mm

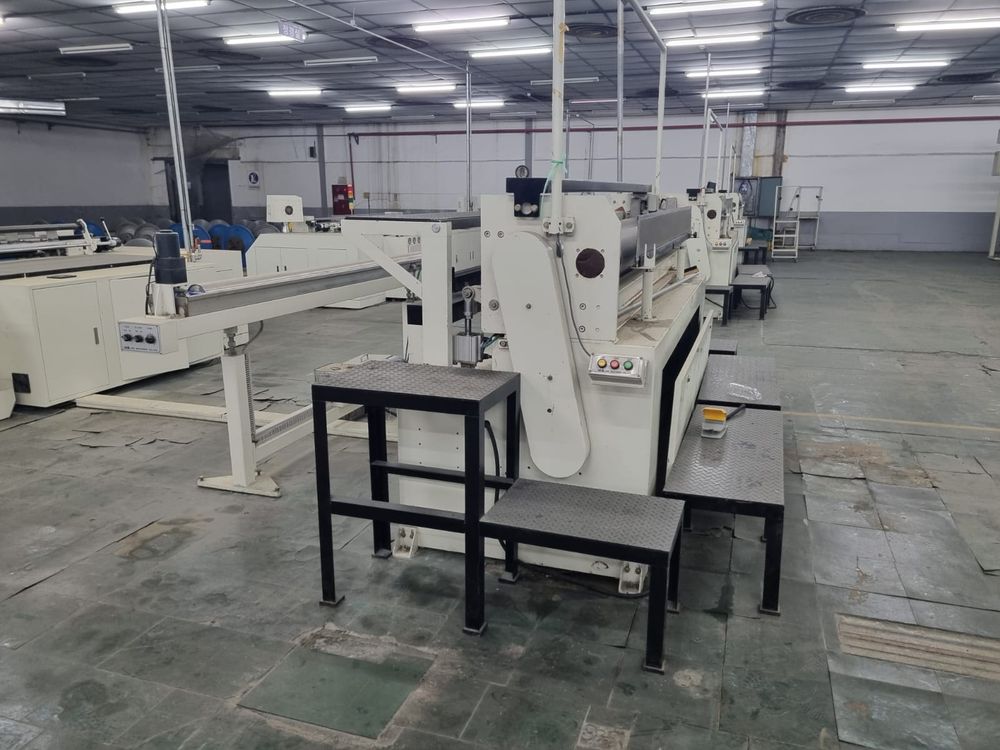

1 SETS of ASSEMBLY BEAMING M/C;
Beaming width : 2,300mm
Max. beaming speed : 200m/min
Max. tension : 600kg
No. of beam creel :12Max. number of warp end : 15,600 ends Max. beam
flange dia. : 1,000mm
Driving motor : 30kw DC motor
Beaming tension control : Automatic electric control
Taper tension control : 0-50kg
Tension on beam creel : Electromagnetic powder brakes

We have Layout Drawing and Electric Drawing
