2 Xeikon 3500 250-516mm

Digital Label Press & GM Finisher

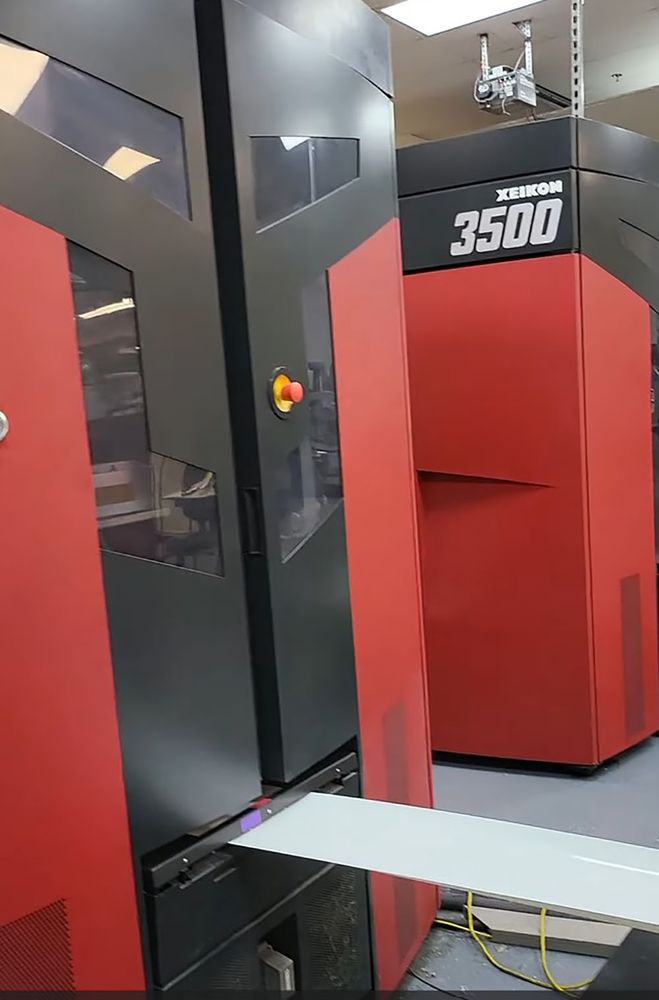

Xeikon 3500 Digital Printer Press 2 Available: Age: 2008, and 2012
a. Specifications/configuration including electrical requirements.
CMKY + 1 Spot Color
Media width 20”
Print width 19.625”,
Speed 10, 15 or 20 Meters per Second.
Software – Voyager.
Electrical – Engine 240 V – 30 Amp,
Rewind / Unwind 208V 60 Amp, Chillers 208V – 30 Amp (X2) b. Foot print Engine with Unwind & Rewind – 10’ x 32’ x 8’6”

Accepts SA or PS Label, paper, paperboard, transfer Substrate
Media Width: 250-516mm (9.8"-20.3")
Media Weight (27lb text to 122lb cover)
Active Web Alignment
1200 x 3600 dpi
Imaging Width: 508mm (20")

GM Finisher
a. Specifications/ configuration including electrical requirements.
1 Semi Rotary, 24” (200T Mag) 1 Full rotary die station. 13” Wide. 1 Cold UV Station, Laminating Tower.
Electrical – Die Cutter 208 – 220 V – 63 amps. UV 480V 60 Amps
b. Foot print. 7’ x 19’ x 6’6”. There is a buffer as well 6’ x 6’ x 7’6”"
