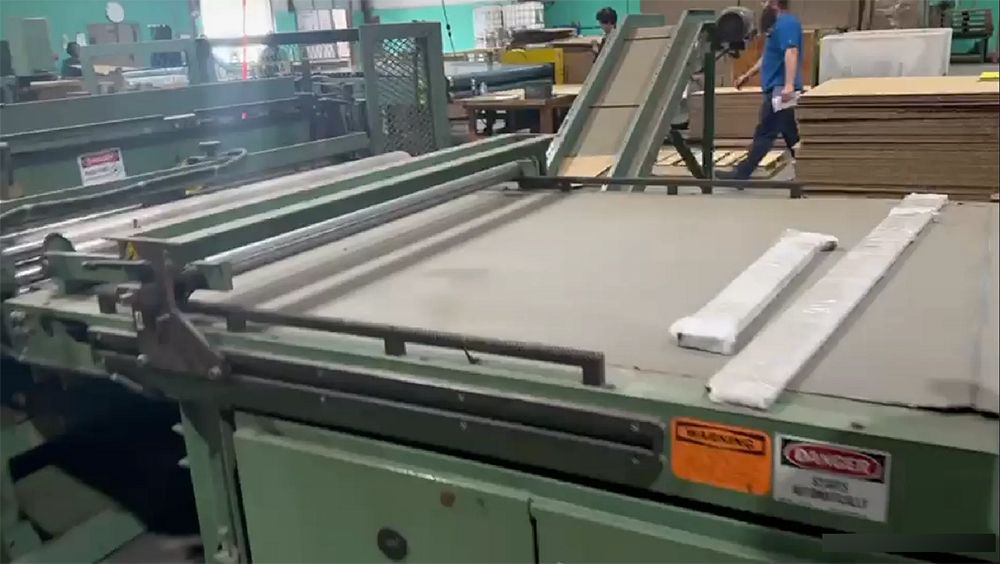

Premier Paper Converting Machinery 209 Partition Die Cutter
Equipped with:
1 Feeder
1 to 2 off bearers

Working width:
1.27 meter maximum (50 inches)
.67 meter minimum (26 inches) ¨

Working length:
2.5 meter maximum (98 inches)
.96 meter minimum (38 inches)

Finished size, partitions:
35 cm height x 127 cm width maximum (14 x 50 inches)
5 cm height x 7.6 cm width minimum (2 x 3 inches) **

Finished size pads:
60 cm length x 127 cm width maximum (36 x 50 inches)
5 cm length x 7.6 cm width minimum (2 x 3 inches)

Cut-off length accuracy: + .4 mm maximum (.016 inch)
Register Accuracy: The relative position of the “V” slot to the cut line can
vary up to + 1 mm (.040 inch)

Paper thickness, corrugated:
6.3 mm maximum (.250 inch)
1 mm minimum * (.040 inch)

15.4 KVA, 460 V., 50/60 HZ, 3 PH.
