3 LS MTRON The One 2300 2300 T
Ref :
2731144-6
Condition :
Used
Manufacturer :
LS
Model :
MTRON The One 2300
Capacity :
2300 T
Year(s) :
2019
Quantity :
3
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Type All Electric
Clamping Force Tonnage 2,300 T
Shot Volume (PS) 383.7 oz
Shot Volume (PE) 306.4 oz
Screw Diameter 5.51"
Maximum Injection Pressure 25820 psi
Maximum Holding Pressure 25820 psi
Screw Speed STD 107 rpm
Plasticizing Capacity (PS) STD 29,085.7 oz
Tie Bar Distance H 79.92"
Tie Bar Distance V 63.39"
Platen Dimension H 107.09"
Platen Dimension V 96.06"
Maximum Daylight 153.5"
Mold Height Min 31.5"
Mold Height Max 74.8"
Ejector Force 43.1 T
Ejector Stroke 31.5"
Injection Orientation Horz

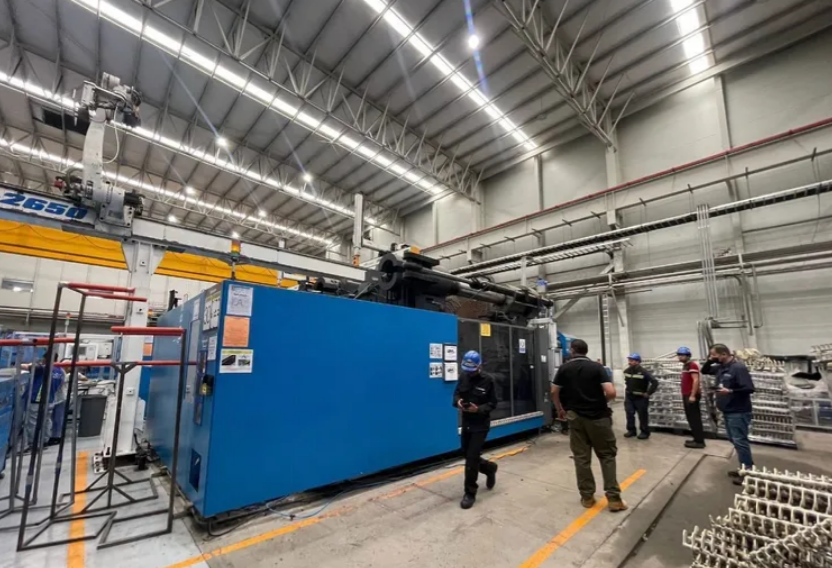

Machine under power Under power running with mould
Dimensions 47.24 X 11.48
Weight 211,642.14 LBS
