3 Makino A71NX 5 Axis

Travels X/Y/Z: 31.5" x 29.5" x 32.7"
B axis: 360° DD NCRT
Balluff tool ID reader
Fixture hydraulic unit
NC controller for index table
Auto doors
Robot interface
Fixture wash inside pallet stand
Chip conveyor
Probe
Coolant thru spindle
5 axis
Spindle nose cleaning air
Rigid tap
Positioning block MST
HSK-A100 spindle interface
Rotary table DD motor
Pallet seat confirm function
Payload: 1000 kg
Auto grease supply device
Tool magazine guard
Pallet changer
Pallet changer safety guard
Random pallet selection
APC door lock
CPH upper hydraulic 12+12 port
500 mm tapped hole pallets
Eight nozzle coolant
Shower coolant
Through spindle coolant 1.5/2.2 MPa
Base coolant
Terrace washing coolant
Water soluble coolant
Operator door lock
Air dryer
Vision BTS
I/O interface for measurement
Automatic fire extinguish
Signal light 3-layer
PMPG with enable button
Helical interpolation
Linear interpolation position
User memory 2 GB + 1 GB
Fast Ethernet interface
External setting spindle orient
Tool offset 400 pairs
Tool offset memory C
Workpiece coordinate system
Optional block skip total 9
Rigid tapping retract function
Program quick restart function
Custom macro variables 1100
Macro variable file output
High speed skip
Adaptive control function
GI control
Energy saving function
MRDF
Spindle speed: 10000 rpm
Spindle motor: 50 hp
Spindle taper: HSK100
Rapid rate X: 1968 ipm
Rapid rate Y: 1968 ipm
Rapid rate Z: 1968 ipm
Tool changer: 136 ATC
Maximum tool diameter: 11.8"
Maximum tool weight: 44.1 lbs
Maximum pallet load: 2200 lbs
Maximum workpiece: 35.4" x 39.4"
Tool to tool: 1.7 sec
Chip to chip: 3.6 sec
Tsudakoma RT251-2-4PRJ 5th axis table with riser

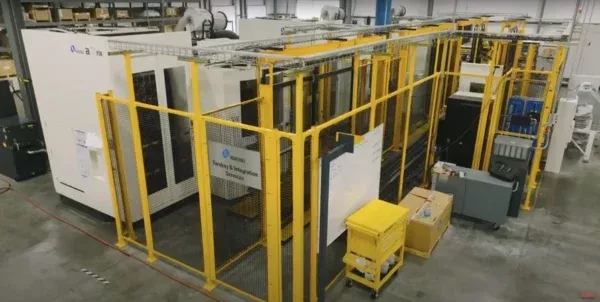

Fanuc R-1000-iA/80F robot cell
Track rail system 11.5 meter
Laser marking station
