3 Metex Wire loom 142cm Staubli jacquard

Wire weaving looms Metex and Q-Matex including electronic jacquards Staubli for production cut velvets

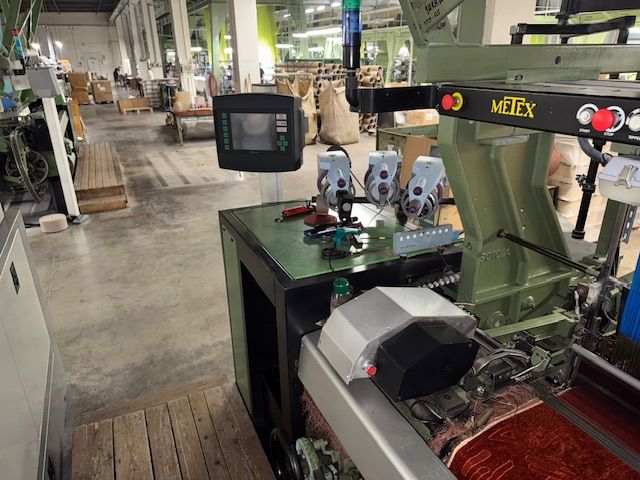

1 x Metex ONE loom year 1998

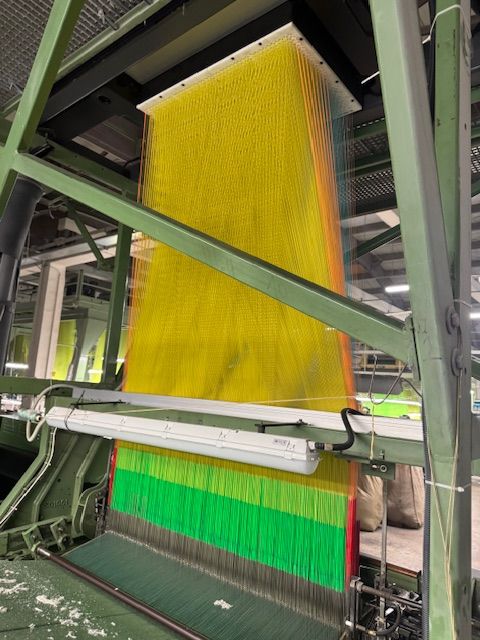

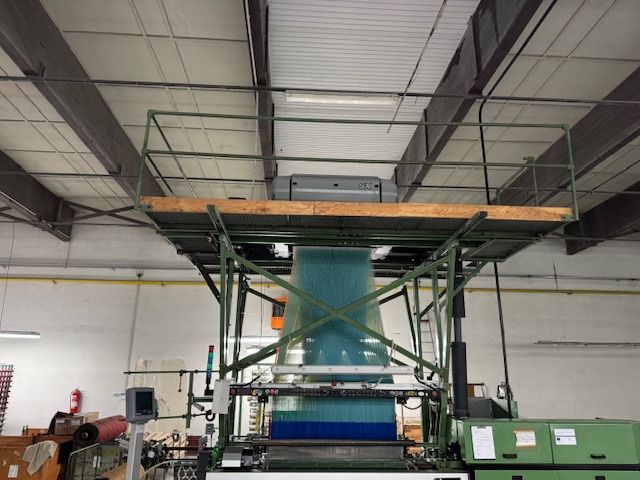

Staubli jacquard year 2020 model SXV format 2688 hooks
This loom was renovated in 2021, conversion to Stäubli electronic jacquard, replacement of harness and basic mechanical components.

1 x QMATEX loom year 2020
Staubli jacquard year 2020 model SXV format 2688 hooks
Jacquard has - 160 modulles for pile
- 160 modulles for warp
Pile 160 modulles x 4 pulleys x 4 sections = 2560 threads for pile
Warp 160 modulles x 8 pulleys x 4 sections = 5120 threads for warp
Reed has width 142 cm, 1280 gaps
Pile: 2560 / 142 cm = 18 threads/cm
Warp: 5120 / 142 cm = 36 threads/cm

1 x Metex ONE loom year 2003
Staubli jacquard year 2000 model LX1690B format 3072 hooks
In the year 2021 was replaced harness, were replaced modules in jacquard and the jacquard was renovated.

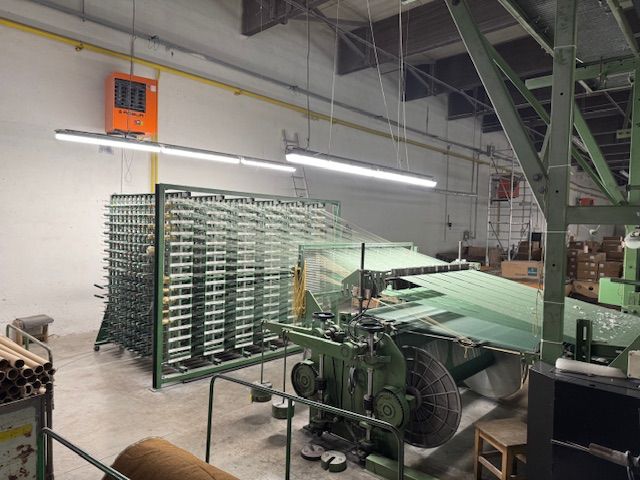

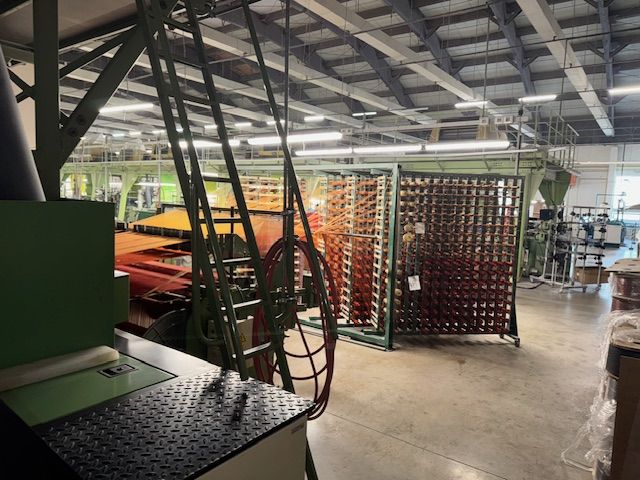

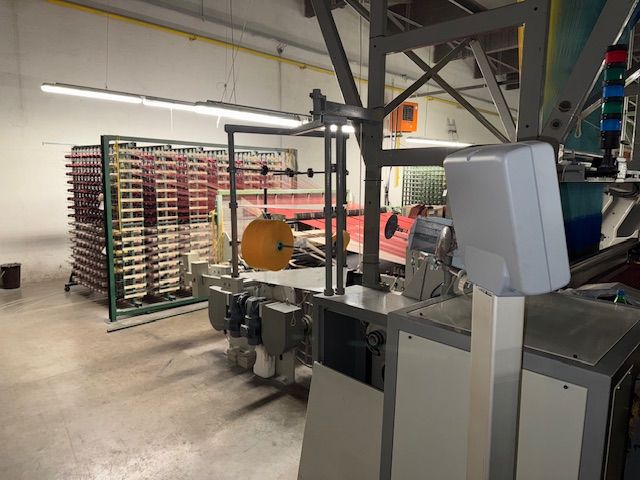

All three looms are equipped with creels for pile warp:
• First section: 1280 bobbins
• Second section: 1280 bobbins
• Total: 2560 yarns for pile warp
Two warp beams for the ground warp, each with 2560 yarns = 5120 yarns total
Weft density: 12 picks/cm – every two picks, one cutting wire
Reed width: 1420 mm
Fabric width: 142 cm

Running condition
