3 Rigid Box Machinery - BF600 & BF450 & PB350

Bought new by us and used for only a few jobs. Shame to let this go but we are bookbinders and do not have enough work to justify keeping.

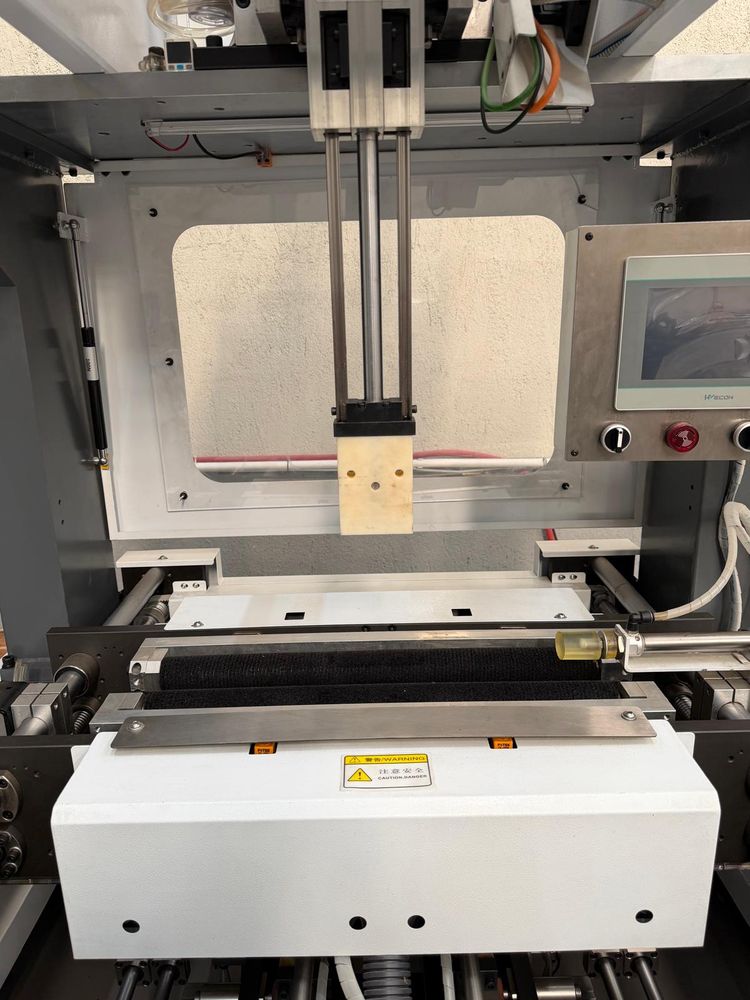

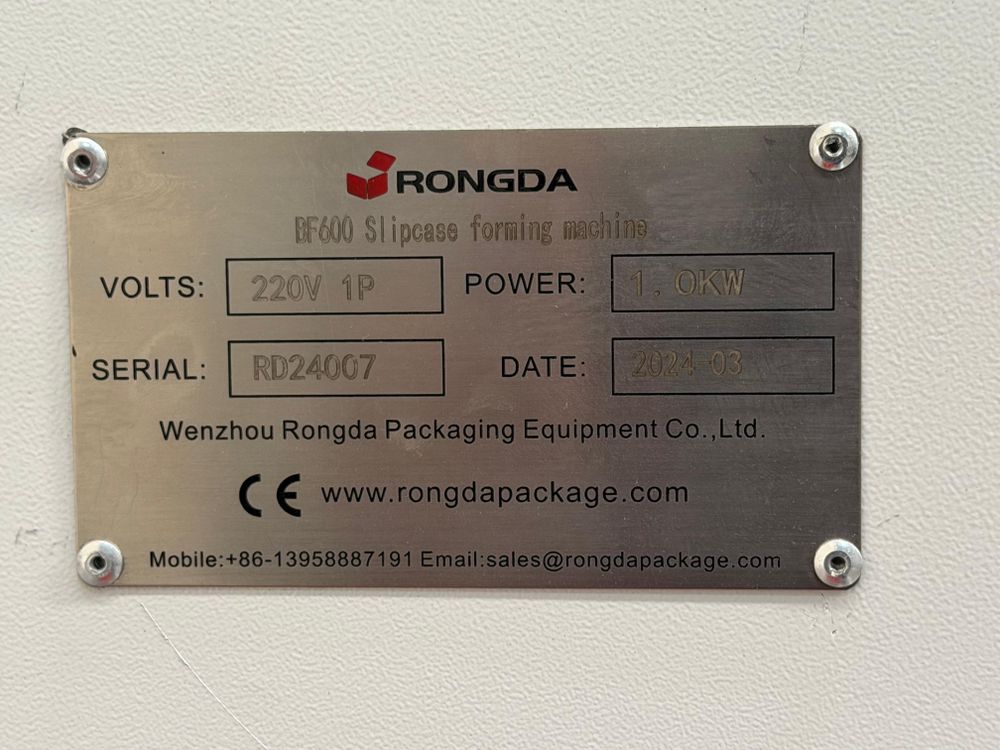

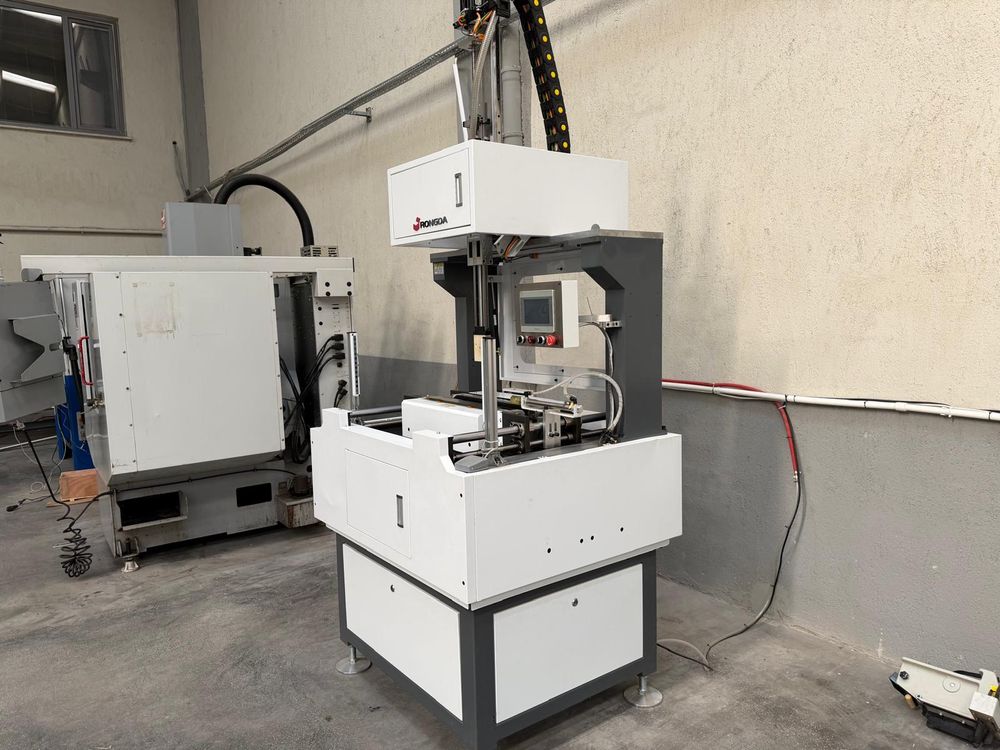

BF600 Slipcase forming machine

Product Introduction
BF600 is a semi automatic model specifically designed to make all types of slipcases boxes.It
automates the slipcase making processes of paper wrapping, bottom plate sticking and box
forming. With the air-vacuum part it allows the factory to make slipcases without the corner pasting
process. For its high efficiency it can replace 3-4 workers on manual processes. It usually pairs
with a box turn-in and pressing machine to complete the whole process. Features
1. No installation process needed, plug-in power and ready to go. 2. Manual feeding, simple control and fast job setting. 3. Optional air vacuum system, used to produce slipcase boxes with V-groove solid board, no need to paste box corners, and the finished
product is more beautiful with sharp corners compared to die cut board format. 4. The operating system is simple and convenient, up to 5 production process modes can be selected, and the system automatically adjusts
to the corresponding process program. 5. The wrapping forming action is now upgraded from air cylinder driven to electric motor driven, which is faster in response and smooth in
process, better for long flap slipcases. Technical parameter
Model BF600
Standard Max.box size 350mm*120mm*350mm

WENZHOU RONGDA PACKAGING EQUIPMENT CO., LTD. Tel: +86-577-66006866
Add: 1318, Building 2, Zhongrun Plaza, Luoyang Avenue, Ruian, Wenzhou, Zhejiang 325200, PRC Website: www.rongdapackage.com
Mobile/WhatsApp/WeChat: +86-13758755126 Email: [email protected]
Standard Min. box size 35mm*35mm*100mm
Boxes out of above range Customizable
Speed 600-1000pcs/hour
Power 1.0kw AC220V
Overall machine dimensions 1800*1400*2000mm
Weight 600 KGS

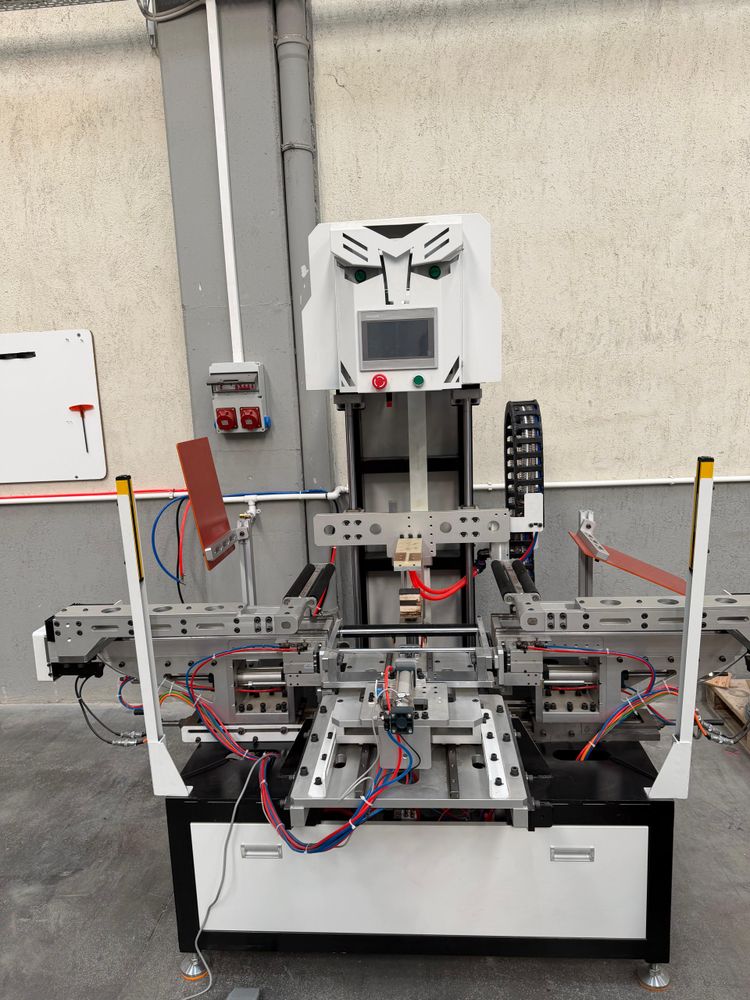

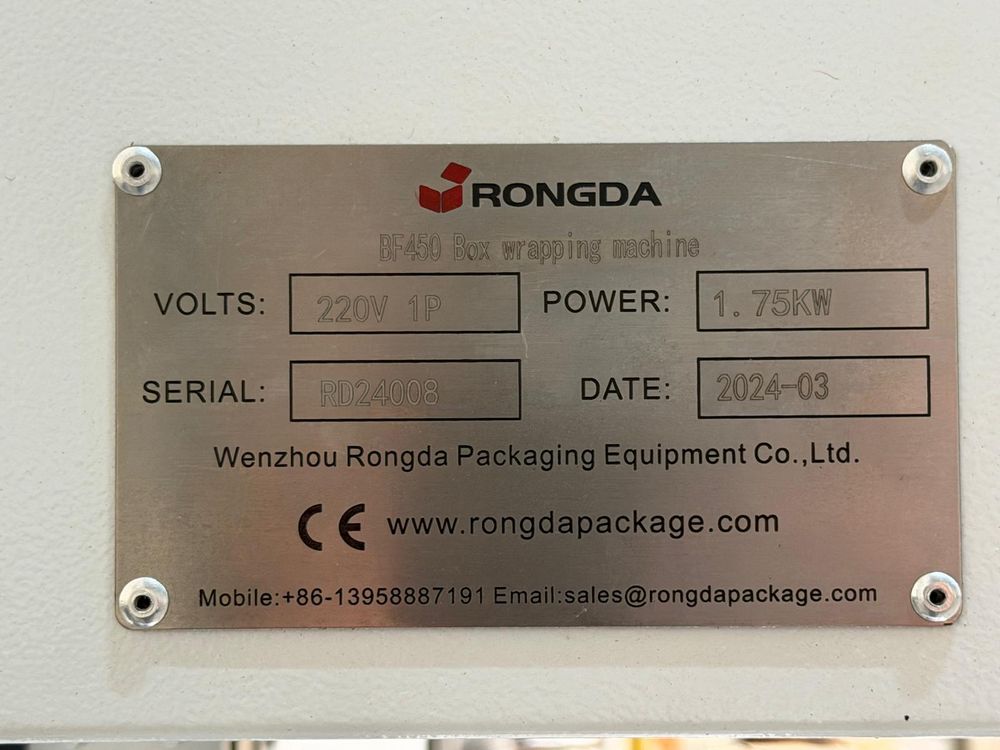

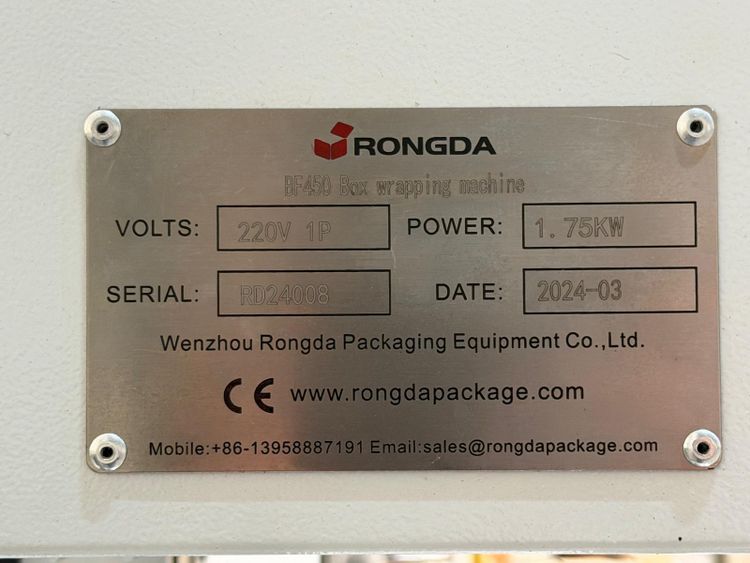

BF450 Box wrapping machine

Product Introduction
BF450 Box wrapping machine is a semi automatic model designed for normal rigid box forming. It's the 5th
generation, with a self-adjustable smart setting system, this model has been one of the best sellers in our product
list.It's fast, quiet, affordable, and can make very small boxes, (please refer to the parameter). Furthermore, it can be
upgraded to a fully automatic wrapping machine with feeding device and the right conveyor belt height. Technical parameter
Model BF450
Standard Max.box size 500*420*120mm
Standard Min. box size 30*30*10mm
Turning paper depth 10-60mm
Boxes out of above range Customizable
Speed 1000-1500pcs/hour
Power 1.75kw AC220V
Air pressure 0.5-0.8Mpa
Overall machine dimensions 1440*1280*2290mm
Weight 800 KGS

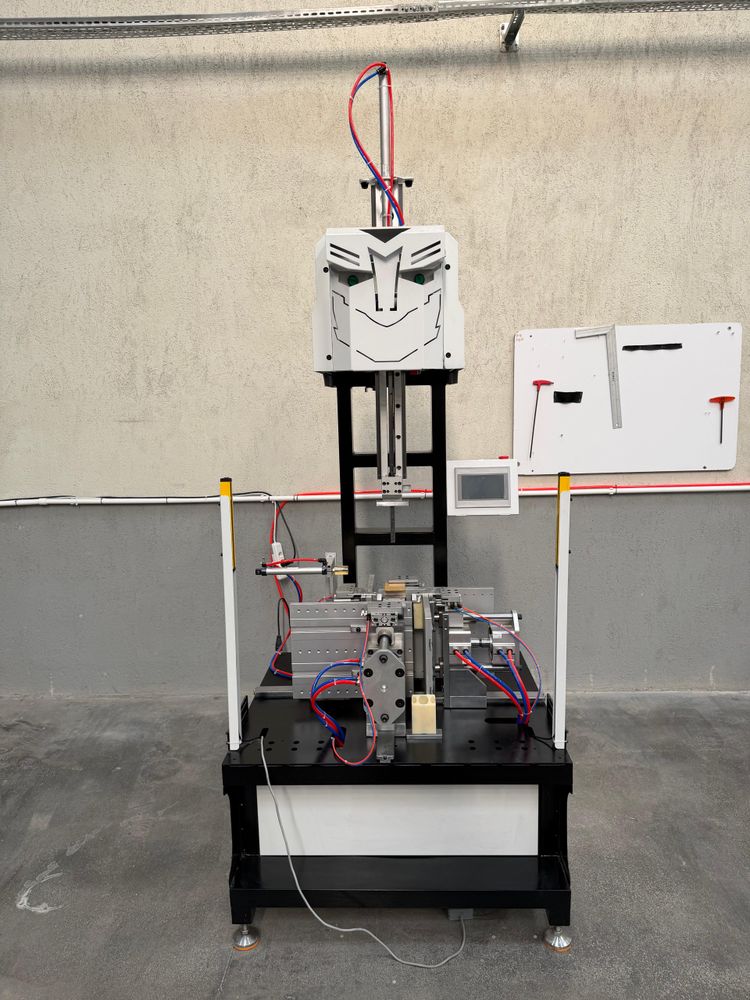

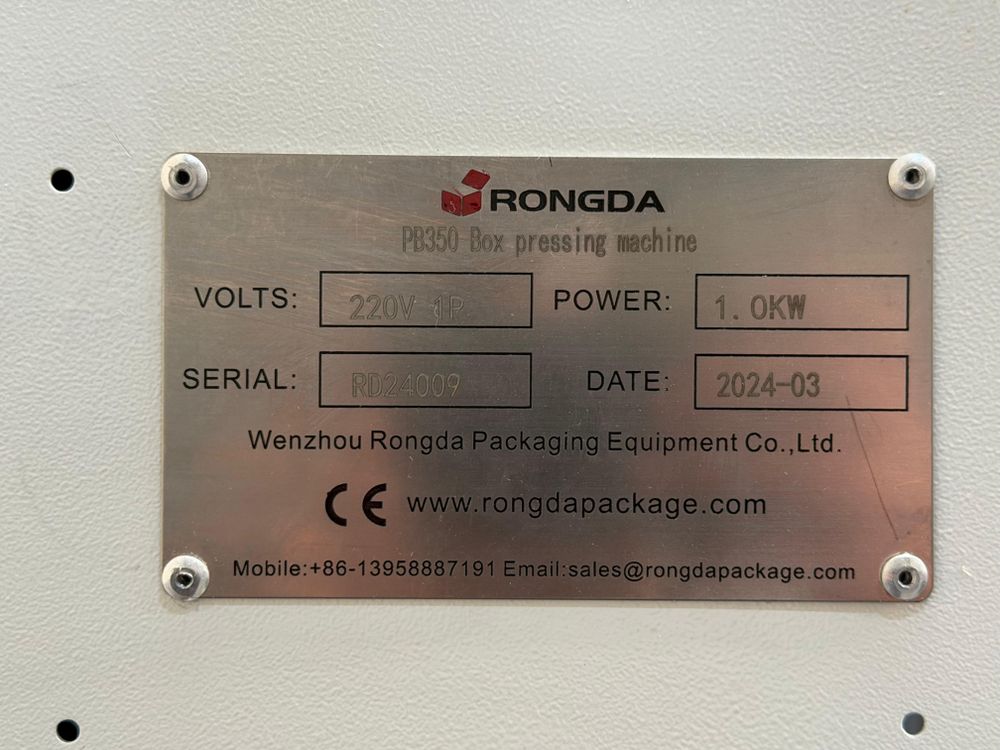

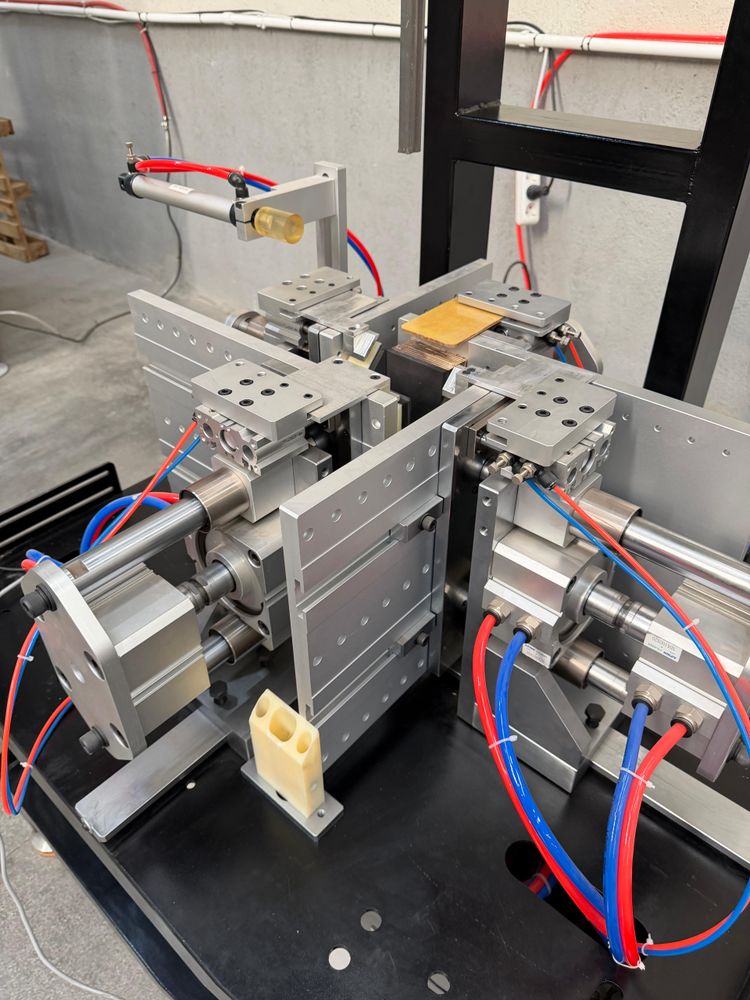

PB350 Box pressing machine

Product Introduction
PB350 Box pressing machine is a semi automatic model specifically designed to fold in and bubble press the
different types of rigid boxes, including slipcase boxes, irregular shaped custom boxes, regular rectangular
boxes and the shoulder of shoulder boxes. It also can be modified with some extra parts to work on hexagonal
and octagonal boxes. For its high efficiency and multiple functions it can be a great tool to help you improve
your production speed and box quality. This machine has 2 models, for different sizes of box making
Features
1.No installation process needed, plug-in power and ready to go.
2. Manual feeding, user-friendly touch screen, simple control and high production efficiency.
3. Multi-functional, this machine has many functions that allow the making of neck ring, slipcase, bottom or side paperless inner box for book
style boxes, also can be used for only bubble pressing, edge pressing. Furthermore, this machine also often pairs with old wrapping machines
which can not make narrow boxes (box width smaller than 50mm).
4. Flexibility, this machine can be customized to make different shapes of slipcase boxes and necks of shoulder boxes, as well as regular
rectangular boxes or hexagonal and octagonal boxes.
Technical parameter
Model PB350
Standard Max.box size 400*300*150mm
Large model max. box size 500*400*320mm
