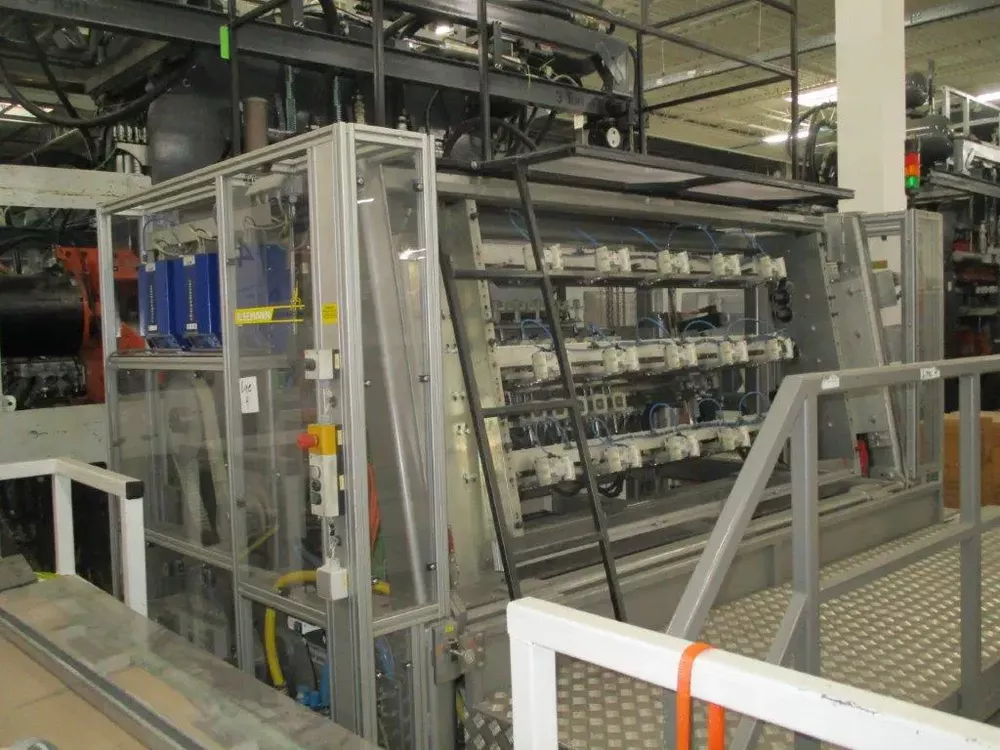

3 TSL FT4K Low Flex

Max Mold Size 30.51" x 17.7"
Top Oven Quartz Elements
Bottom Oven Quartz Elements
Top Platen Stroke 12"
Bottom Platen Stroke 12"
Platen Drives Servo (Yaskawa Motors/Controllers)
Material Ran Polypropylene
Platen Shut Height (Below and Above) 9.45" / 13.58"
Top Platen Tonnage 120 Tons
Dry Cycle Speed Max. 60 CPM / Min. 1 CPM
Max Sheet Width 35"
Depth Of Draw Max 6" Below Sheet Line
Max Chain Speed 97"/sec
Oven Zones 50
Oven Length 135"
Platen Travel Distances Top Max. - 0" / Bottom Max. - 6.875"
Top Platen Servo Adjust SASH Servo Adjust Shut Height (Top Platen Only)
Top Mold Max Weight 3,000 Lbs
Bottom Mold Max Weight 1,400 Lbs

Note
(3) Machines Available, Price Per Machine,
(1) 2014 TSL Thermo Former,
(2) 2016 TSL Thermo Formers

Features
Pneumatic Driven Parts Ejector (Bottom Ejector)
Right Hand Machine Layout
Servo Indexing (Yaskawa 7.5 kw Drive System)
Gabler 4-Play Preheat Oven
Ilsemann Stacker
IR Temperature Sensor Assembly
OPTO 22 PAC System and Galil DMC-4060 Motion Controller
Yaskawa Servo Controlled Plug Drive System (Third Motion)
