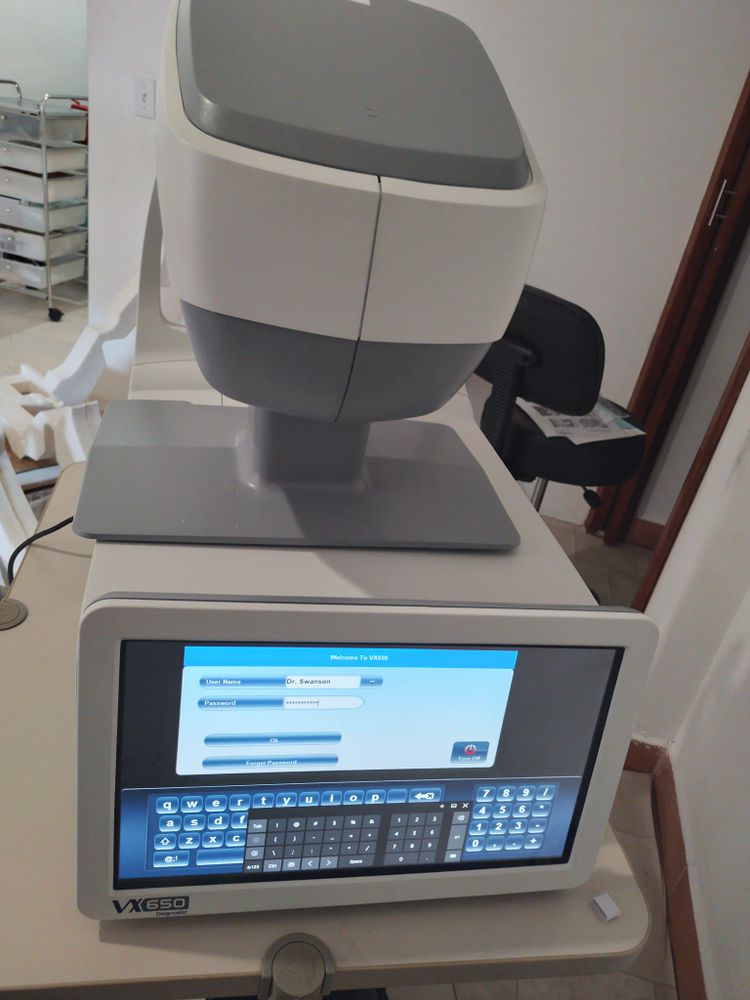

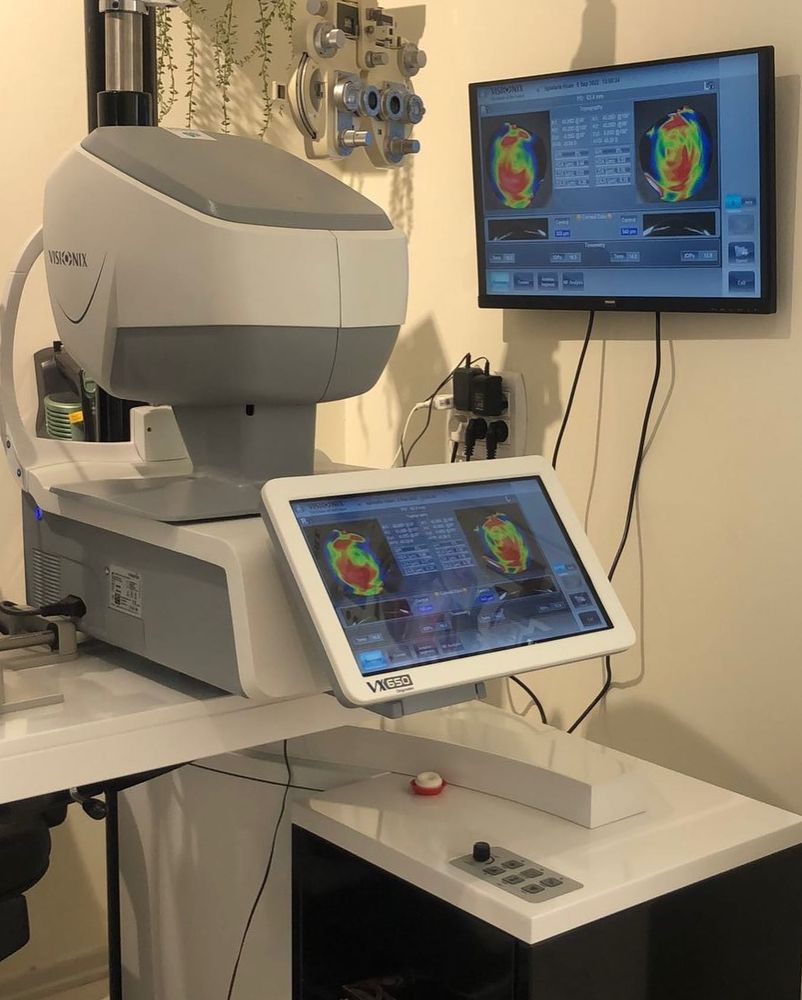

3 Visionix VX650 Multi-Modal Assessment System

Visionix VX 650 revolutionizes ocular assessment by introducing the first and unique solution that allows eye care professionals (ECPs) to deliver a comprehensive eye exam at the push of a button. It combines an aberrometer, a fundus camera and all essential technologies to monitor both anterior and posterior segments in a single device. The highly automated Visionix VX 650 allows a moderately trained user to detect a wide range of visual pathologies. Now the VX 650 works with EyeWisdom MCS, an A.I. solution that delivers thorough Retinal screenings.

Pachymetry, IC (iridocorneal) angle and pupillometry
Feature Value
Method Static horizontal scan with the Scheimpflug camera
Pachymeter measuring range 150μm – 1300μm
Pachymetry accuracy < 5μm
IC angle measuring range 0°-60°
IC resolution 0.1°
Pupil illumination Blue light 455nm
