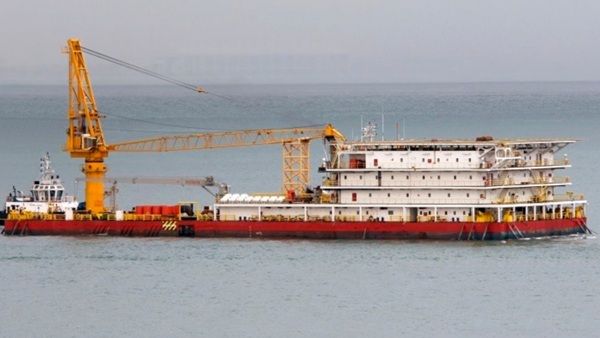

300 PAX Accommodations Barge

Vessel Type: Accommodation Vessel
Classification: ABS

Length Overall: 328 ft
Breadth Moulded: 104 ft
Depth Moulded: 23.95 ft
Design Draft: 16.40 ft
Deadweight at Draft: 8,850 mt
Clear Deck Area: 1,600 m²
Gross Tonnage: 10,160 t
Helideck Size: 28 m x 28 m
Helideck Loading: 9.3 t/m²

Total Beds: 300
1-Bed Cabins: 10
2-Bed Cabins: 9
4-Bed Cabins: 66

Air Compressors: 2 units
Generators: 5 units
Generator Output: 534 kW each
Generator Speed: 1,500 rpm
Emergency Generator Output: 260 kW
Emergency Generator Speed: 1,500 rpm
Water Makers: 2 units
Water Maker Capacity: 50 tons/day each

Anchor System: 8-point
Anchor Winches: 8 electro-hydraulic units
Mooring Winch Capacity: 1,500 m x 52 mm IWRC
Deck Crane Type: Pedestal
Main Crane Dynamic SWL: 68 t
Auxiliary Crane SWL: 9 t
Crane Boom Length: 150 ft
Deck Strength: 12.5 t/m²

Fuel Oil Capacity: 700 t
Fresh Water Capacity: 3,070 t
Ballast Water Capacity: 9,247 t

Features / Equipment:
Accommodation for 300 persons
Fully air-conditioned living spaces
Galley
Hospital with 2 beds
Radio and control room
Mess rooms
Office spaces
Conference room
TV room
Video room
Prayer rooms
Gymnasium
Workshop
Firefighting systems
Rescue boats
Life rafts
Helideck
Anchor handling system
